Panel sections

The panel at the right edge consists of nine sections with a pastel title row. Factory order: Layers, Properties, Constraints, Guides, Z levels, Groups, Blocks, Standard parts, Elements.

Title row

(1) grip, (2) fold triangle, (3) title
(1) grip, (2) fold triangle, (3) title

The grip ⠿ (1) and the title row grab the section for dragging; the triangle (2) folds it (▶) or unfolds it (▼) — the fold state is remembered in the browser. The pastel colour belongs to the section, not to its position.

Dragging the order

Grab a section by its title row and drag it up or down within the panel; an insertion mark shows the new position. The order travels with the settings and is applied when loading a drawing too.

Tearing off and docking a section

If a section is dragged more than 10 px beyond the panel edge, a dashed frame shows the future position; on release it becomes a floating window. The title row moves the window, the triangle still folds, invisible handles at the right and bottom edge and in the corner change width and height. The button ⇥ (only on the floating window) docks the section back at its remembered position; so does dragging the window over the panel (insertion mark). Positions of floating sections belong to the settings.

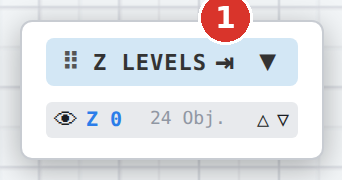

The “Z levels” section as a floating window: (1) dock button
The “Z levels” section as a floating window: (1) dock button

Panel width

The narrow strip between drawing area and panel can be dragged; the width is remembered only on this computer and is not exported with the settings.

Reset

“↕ Panel order” in the “Settings” dialog restores the factory order and brings torn-off sections back (Panel order); “Factory settings” does the same together with everything else.
