Scale

Purpose

Scale enlarges or reduces the selected elements by a factor — relative to a base point that stays in place. Factor 2 doubles all dimensions, 0.5 halves them.

Access

  • Ribbon: group Modify, triangle on the button Mirror — Scale (5). If the window is narrow, the group is collapsed — the arrow below the group icon opens the list with Scale.
  • Classic toolbar: drop-down triangle of the family Mirror (2).
  • Command search : Scale.
  • Without a selection, post-selection begins (Scale: click the base point... after accepting).
Family «Mirror» with (5) Scale
Family Mirror with (5) Scale

Procedure

  1. Select elements, start the tool.
  2. Click the base point (1) — with snap. The status line reports Enter the factor or drag the mouse, click/Enter confirms..., the field Faktor: appears with 1.000.
  3. Set the factor (2): drag the mouse away from the base point — the distance to the pointer relative to the distance at the base click gives the factor, the preview follows — and click; or type the factor and accept with Enter.

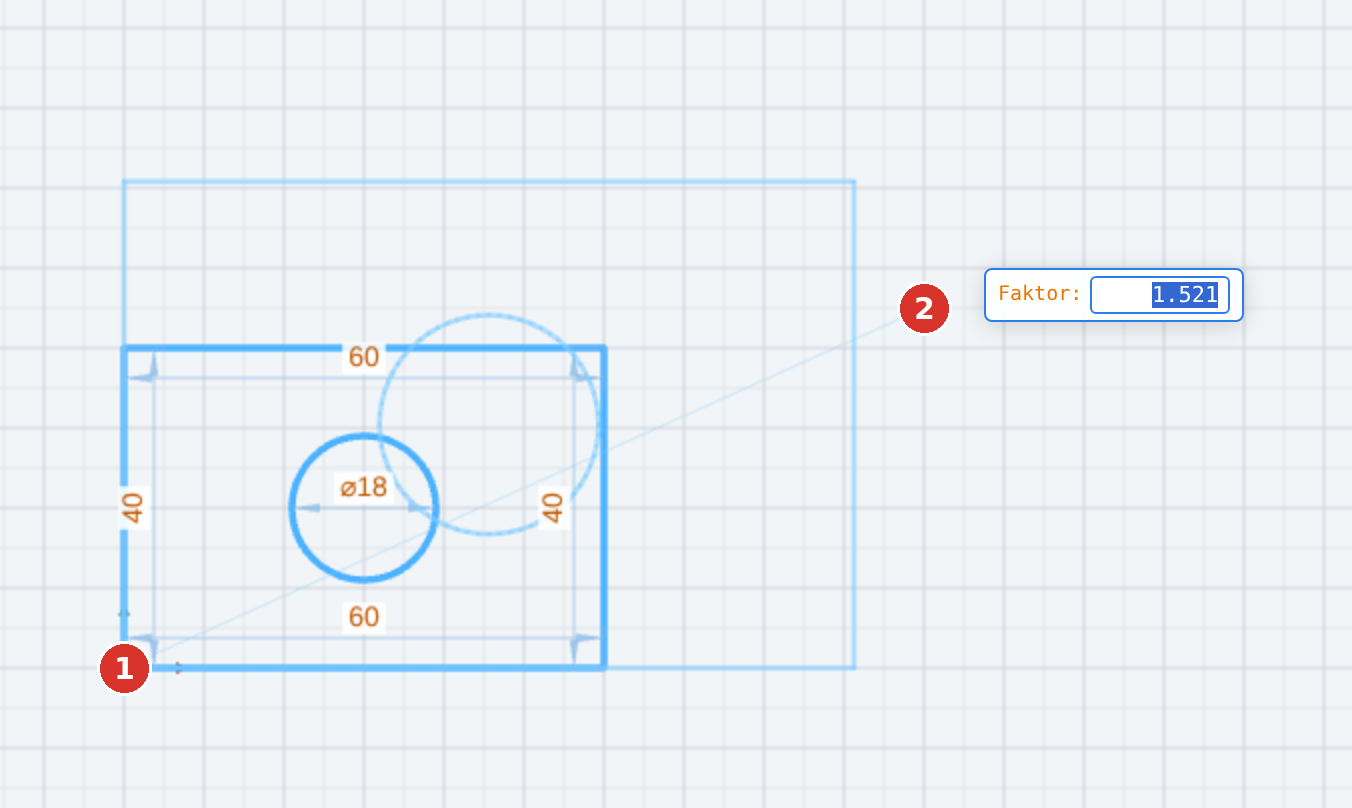

(1) base point, (2) pointer — the preview grows along, the field shows the factor
(1) base point, (2) pointer — the preview grows along, the field shows the factor

The status line confirms Scaled: factor 1.500 (5 elements). Factor 1 changes nothing; values ≤ 0 are rejected (The factor must be > 0).

Options and relations

  • Dimensions of the selected elements are scaled along — their dimension texts then show the new values; hatches are re-bounded.
  • Constraints of the scaled elements are removed.
  • Texts are scaled including their font height; weld points move along when all participating elements are selected.
  • If a selected element is welded to a fixed element or to one on a locked layer and the welded point would wander, nothing is scaled: Welded to a fixed or locked element — scaling rejected, no undo step. Scaling with the welded point as base point is possible.
  • The gizmo offers scaling with a factor field in place.
  • An unreadable or infinite factor (e.g. «abc», «1e999») or one above 1,000,000,000,000 is refused with a red message; the field stays open.
