Command search

Ctrl + F (also Ctrl + Shift + P) or the button Find command (group Action, classic toolbar at the right; tooltip Find command (Ctrl+F)) opens the command search as a window above the drawing area. A second Ctrl + F closes it again. In a narrow window the ribbon collapses the group Action; Find command is then in its drop-down list.

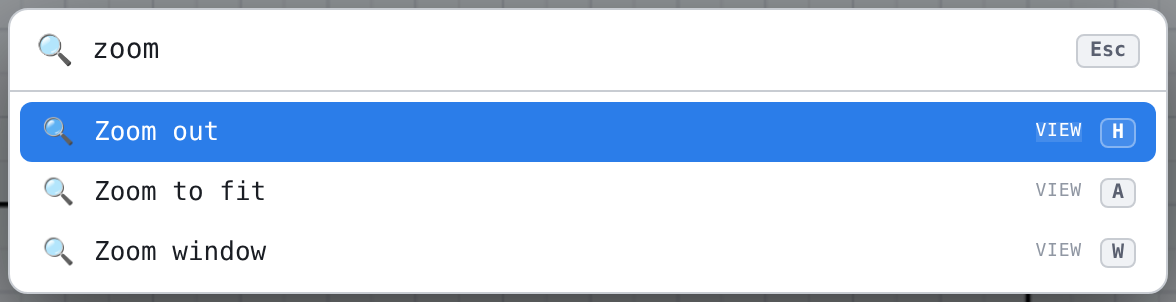

The command search after typing «zoom»
The command search after typing zoom

Search field

With the placeholder Search function … (e.g. hatch, save, zoom). Searched are command names and stored keywords — German and English, independent of the interface language (save finds Save; dwg finds Import DWG… and Export DWG…, step finds Import STEP…). Without input all 149 commands are in the list, plus one entry for each add-on tool as soon as their list has been loaded.

Hit list

Per row: icon, command name, category (File, Draw, Modify, Annotate, View, Snap, Constraint, Group, Z-order, Tool, Dialog, Block, Note; add-on tools show the category Add-ons) and the shortcut if there is one. The highlighted row is the active one; a click executes the command. Without hits a note appears in the list.

Keys

KeyEffect
↓ ↑next / previous row (at the end the selection jumps to the beginning)
Enterexecute the active command and close
Escclose

Tools are started via their real button so that selection and running commands are reset cleanly. A snap mode from the list sets the snap like the key; if an input field is at the cursor (e.g. L: and ∠: while drawing a line), the cursor stays in the field used last, and the next input replaces its content.

The commands Import DWG…, Export DWG… and Import STEP… (category File) open the add-on LiberoDWG or STEP2LiberoDraft in a new tab, exactly like the entries in the file menu; like the menu Add-ons they are tied to the registration (DWG and STEP via add-ons).
