Hatch settings

Purpose

Opens the Hatch Settings dialog: pattern and pattern definition, layer, Z level, origin, tolerance, point markers, opacity, islands, search area, line type filter and the switch between automatic and manual area definition. All values are defaults for new hatches.

How to start

  • Ribbon: gear at the right end of the bar (1), then Hatch settings (2).
  • Classic toolbar: gear on the right, entry Hatch settings (the same list as in the ribbon).
  • Automatically when the Hatch tool is started: the window opens floating next to the drawing.
  • Command search : type Hatch settings.

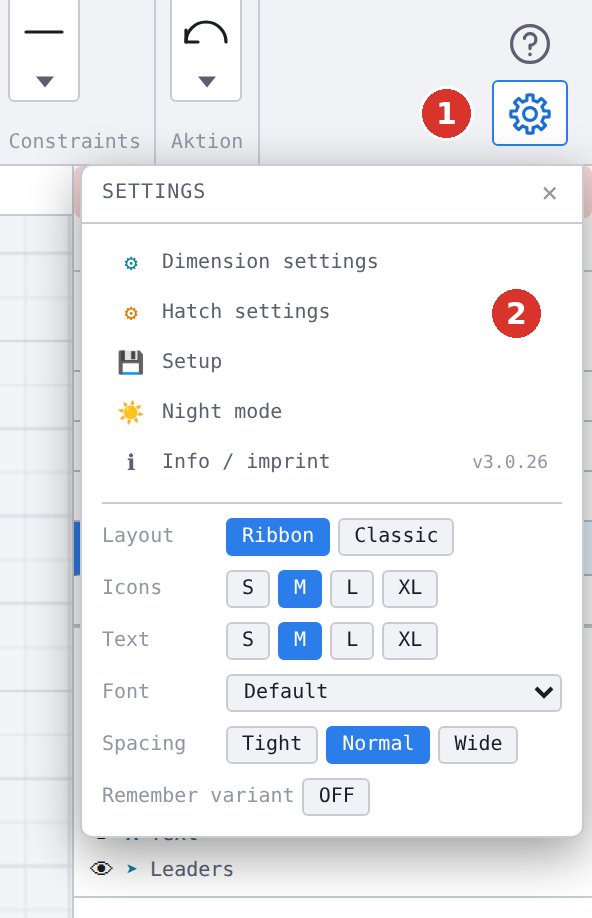

Ribbon: (1) gear, (2) entry «Hatch settings»
Ribbon: (1) gear, (2) entry Hatch settings

Procedure

  1. Start the command. The window appears without dimming the drawing; you can keep drawing while it is open.
  2. Change values — every change takes effect on the defaults immediately, a pattern change is confirmed in the status bar.
  3. OK applies and closes with the message Hatch settings saved; Close only closes — the changes are already in effect.

The window can be dragged by its title; the position is remembered for the session.

Options

All fields are described on the page Hatch Settings dialog.

  • Tolerance — at most 5; a larger value (also from saved settings) counts as 5.
  • Typed numbers — a value that cannot be read, is infinite or larger than 1,000,000,000,000 in magnitude (e.g. «abc», «1e999») is refused with a red message (Not a valid number: … or Number too large: … — at most ±…); nothing is changed.

Related commands

  • Hatch — create the hatch
  • Setup — the Factory defaults button also returns the hatch defaults to the factory state
