Sheet tabs (status bar)

Overview

The tabs sit on the left of the status bar, right after the file name. They switch between model space and sheets. The active tab is filled blue.

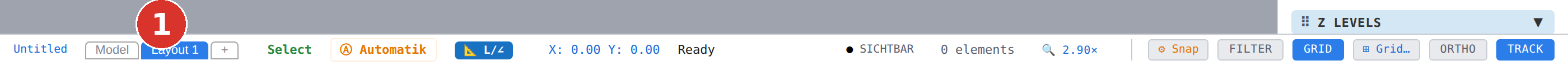

(1) where the tabs sit in the status bar
(1) where the tabs sit in the status bar — left halfleft half
(1) where the tabs sit in the status bar — right halfright half
(1) where the tabs sit in the status bar
(1) Model, (2) sheet, (3) new sheet
(1) Model, (2) sheet, (3) new sheet

(1) Model

Switches to model space, where you draw 1:1. It always exists and cannot be deleted.

(2) One tab per sheet

One tab per sheet, in the order they were created, labelled with the sheet name.

ActionEffect
Clickswitch to this sheet
Right-clickPage setup
Double-clickrename — prompt “Layout name:”

The tooltip reads “Right-click: page setup · double-click: rename”. An empty name is not accepted.

(3) “+”

Creates a new sheet and switches to it immediately (tooltip “New layout (paper space)”); see New layout.

How the strip behaves

The tab strip is at most 28 % of the window width and can be scrolled sideways when there are many sheets; the status bar wraps onto two rows if needed.

When switching

The program stores zoom and position of the space you leave, cancels a running tool, clears the selection, returns to “Select” and, on a sheet, has the boundaries of through-hatches searched again. A sheet without a stored view is fitted. An open print dialog sets itself up for the new space.

Groups, welds and constraints belong to the space their elements are in: the model and every sheet keep their own. After switching, the Groups panel shows the groups of the new space, and constraint symbols appear only in their own space.

Locked in the block editor

While the block editor is open, the space and the sheet cannot be changed: clicking a tab, +, renaming, Page setup and Delete layout have no effect. The status bar reports The area cannot be switched in the block editor — first click «Speichern» (save) or «Abbrechen» (cancel). or The layout cannot be changed in the block editor — first click «Speichern» (save) or «Abbrechen» (cancel).
