How do I change the dimension text?
Prefix, suffix, tolerance

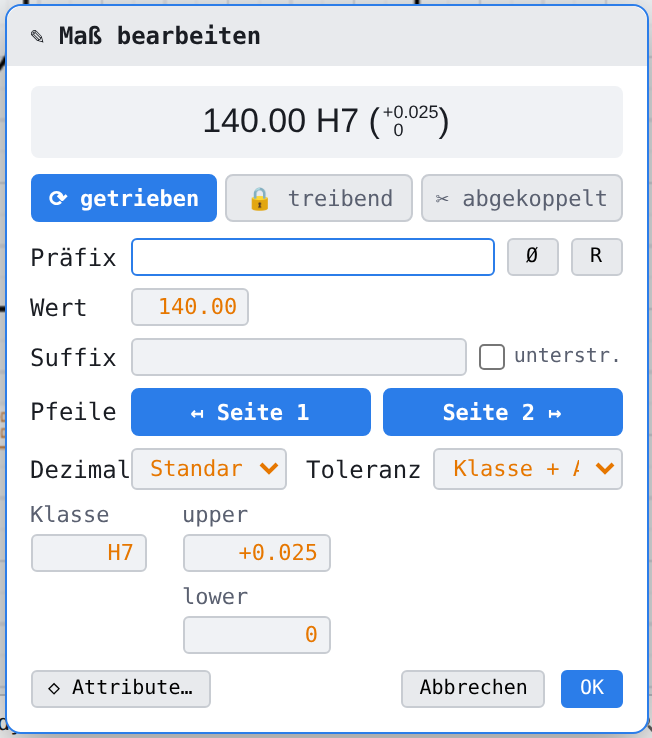

- Double-click the dimension (Select tool). Edit dimension opens.
- Enter prefix (such as ⌀, R, M, 2x) and suffix (such as H7); the buttons Ø and R insert the sign.
- Under Tolerance choose the kind — symmetric, upper/lower deviation, class, class + deviations or limit dimensions — and fill in the fields. You type the class or choose it with the triangle button ▼ next to the Class field from a list for hole and shaft; a click on the class applies it. For class + deviations and limit dimensions ⚙ determine supplies the deviations for the class — after a click in the list this happens by itself.
- Check the preview at the top and click OK.

Enter a driving value
In the dialog click 🔒 driving, type the value and press Enter: the geometry is set to the dimension. This works for linear, radius, diameter, rectangle and angular dimensions on elements that are not fixed. For a distance or point-to-point dimension the first element stays put and the value moves the second (details). An invalid value (text such as abc, an incomplete expression such as 5*, infinity or more than 1 000 000 000 000) is rejected with a red message; nothing changes. If the value contradicts a constraint, the program rejects it as well, and the status bar names the conflicting constraints. The dimension never moves elements on locked layers.
Free text instead of the value
Click ✂ detached and type the text into the value field. Empty field = dimension line only, no number.
Decimal places of one dimension
In the dialog choose the number of places under Decimals; Default restores the default. For many dimensions at once: select the dimensions, attribute panel (Ctrl+double-click), field Dec..
Font, colour, arrows of a dimension

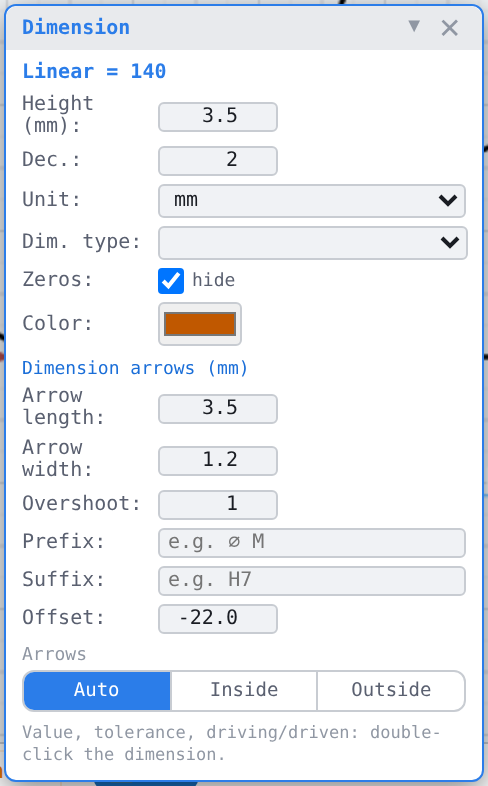

Open the attribute panel with Ctrl+double-click and change height, unit, colour, arrow length, arrow width, overshoot or the arrow position. Or select several dimensions, open the Dimension Settings, set the values and click Apply.

OK in the Dimension Settings never changes existing dimensions — only Apply does.
