Rotate

Purpose

Rotate turns the selected elements with their dimensions and hatches around a pivot that you set with snap. You determine the angle with the mouse — the preview turns along — or type it into the floating field.

Access

  • Ribbon: group Modify, triangle on the button Mirror — Rotate (2). If the window is narrow, the group is collapsed: the arrow below the group icon opens the list of all tools of the group, including Rotate.
  • Classic toolbar: drop-down triangle of the family Mirror (2).
  • Command search : Rotate.
  • Without a selection, post-selection begins (Rotate: click the pivot after accepting).
Family «Mirror» with (2) Rotate
Family Mirror with (2) Rotate

Procedure

  1. Select elements, start the tool.
  2. Click the pivot (1) — with snap, e.g. a hole centre. The status line reports Rotation point set — set the angle with the mouse or enter it + Enter, the field ∠ appears.
  3. Set the angle (2): move the mouse — the angle from the pivot to the pointer applies, the preview follows — and click; or type the angle in degrees and accept with Enter. Positive angles rotate counter-clockwise. An invalid number (e.g. “abc” or “1e13”) is refused with a red message; the tool keeps running.

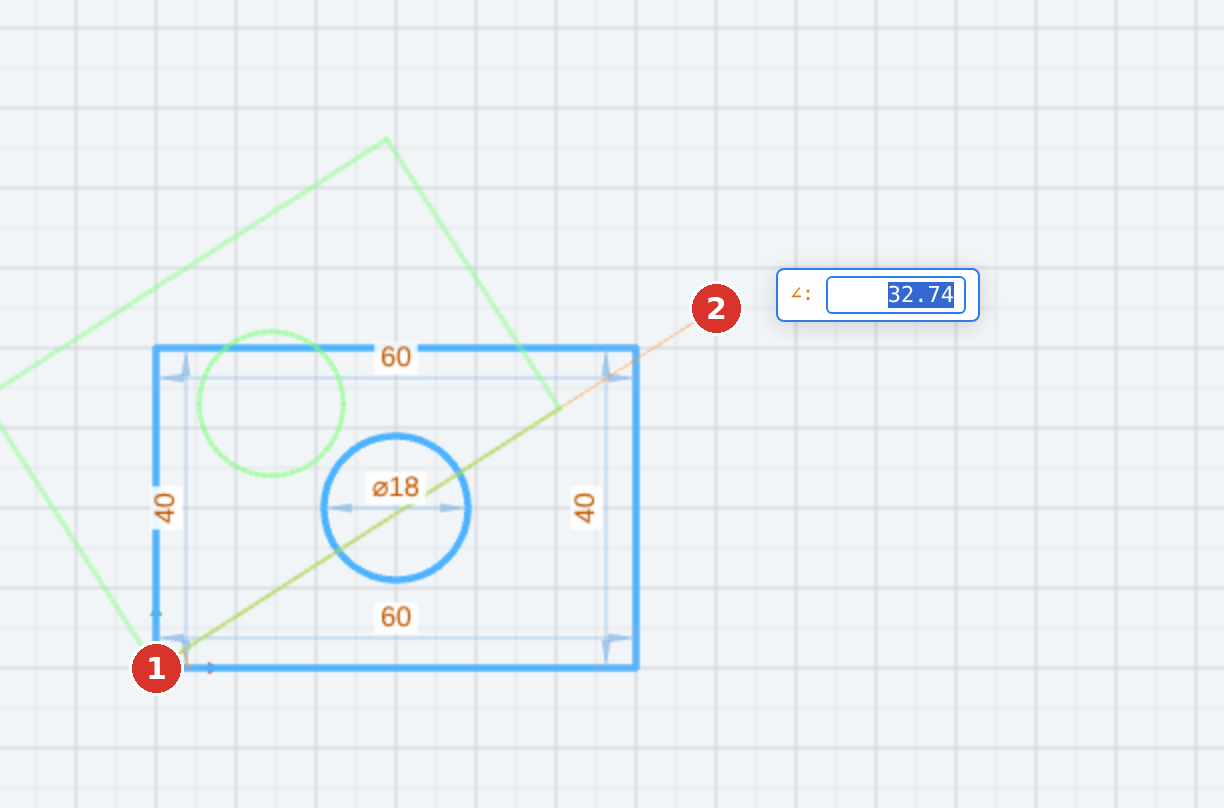

(1) pivot, (2) pointer determines the angle — the field «∠» shows the current value
(1) pivot, (2) pointer determines the angle — the field ∠ shows the current value

The status line confirms Rotated by 27.50°. If the pointer is on the pivot when clicking, no angle can be formed (Angle too small). A typed value takes precedence over the mouse position.

Options and relations

  • Dimensions attached to selected elements rotate along; selected free dimensions and hatches as well. Selections of dimensions only are allowed.
  • Constraints of the rotated elements are removed — Horizontal or Vertical might no longer hold after the rotation.
  • A rotated rectangle becomes a closed polyline. It remains the same element, though: group, line type, Z level and welds at the corners are kept — a line welded to a corner follows the rotated corner. A remark rotated together with the rectangle stays in its place on the rectangle.
  • If a selected element is welded to a fixed element or to one on a locked layer and the welded point would wander, nothing is rotated: Welded to a fixed or locked element — rotation rejected, no undo step, the tool ends. Rotating about the welded point itself is possible.
  • The rotation angle of the gizmo snaps in steps from the settings; the tool Rotate takes any angle. For exact angles type the value.
  • Copies at an angular spacing are created by the polar array.
