Snap mode

Purpose

The object snap lets the pointer snap to significant points of existing elements while drawing, dimensioning and measuring. The snap mode defines which points are snapped: either the automatic chooses itself, or you restrict to one snap type. The mode applies until you change it and is saved with the settings.

Access

  • Keys: Q automatic · E endpoint · M midpoint · S intersection · Z center · L element · P point · G grid · F free. The keys also work while the flying input field is open. Tangent and Distance from endpoint have no key.
  • Tool window on the left, section ⚡ Snap mode (1): click the snap type; the active one is orange.
  • Right-click menu on the drawing area: submenu with the same snap types.
  • Command search : Snap: endpoint, snap etc.
  • Display: the status bar shows the active mode at the left in orange (for example ◻ Endpoint) and flashes briefly on a change; the message reads Snap mode: ….

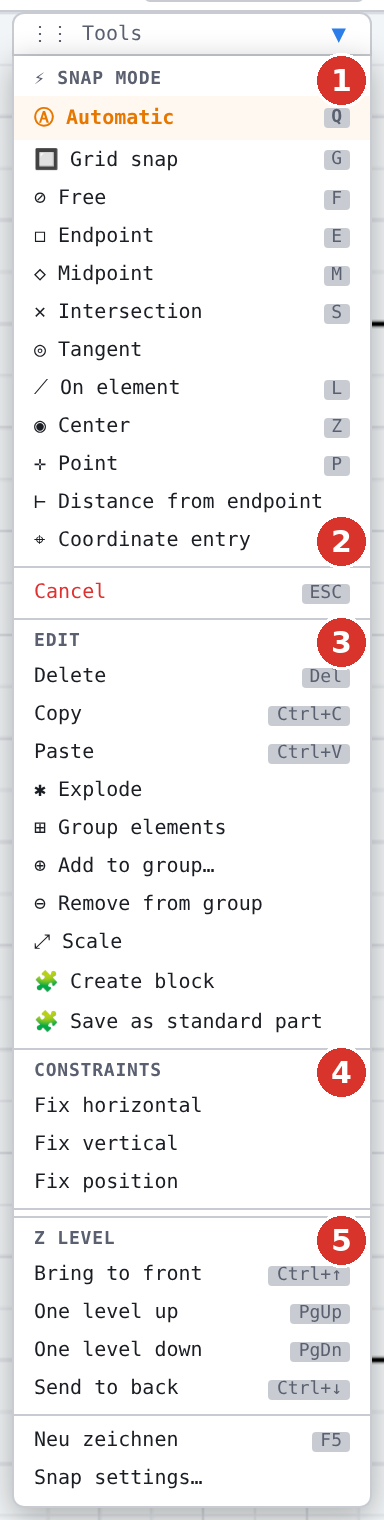

Tool window: (1) section «Snap mode»
Tool window: (1) section Snap mode
Status bar: (2) active snap mode

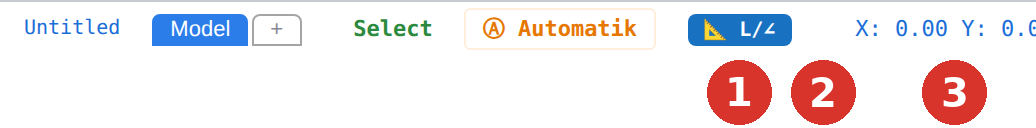

Status bar: (2) active snap mode — left halfleft half

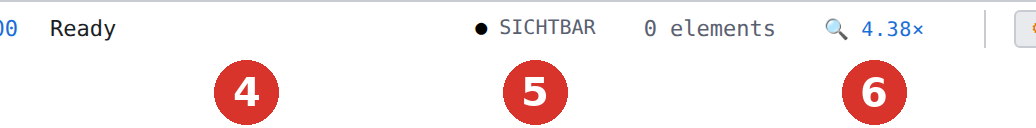

Status bar: (2) active snap mode — right halfright half
Status bar: (2) active snap mode

The snap types

Ⓐ Automatic

Q. The program checks near the pointer all snap types that are ticked in the Automatic snap dialog (factory: endpoint, midpoint, center, intersection, element, tangent, point) and takes the most suitable hit. Factory setting at start; the option Snap to automatic for geometry tools switches back here when a drawing tool is called.

◻ Endpoint

E. Start and endpoints of lines, arcs, polyline segments, corners of rectangles.

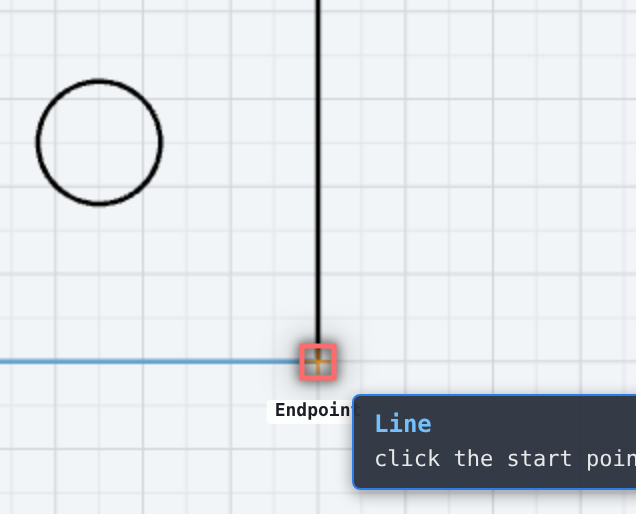

Snap «Endpoint» at a corner
Snap Endpoint at a corner

◆ Midpoint

M. The middle of a line, an arc or a segment.

✕ Intersection

S. The intersection of two elements — also where they only touch.

◉ Center

Z. Centre of circles, arcs and ellipses.

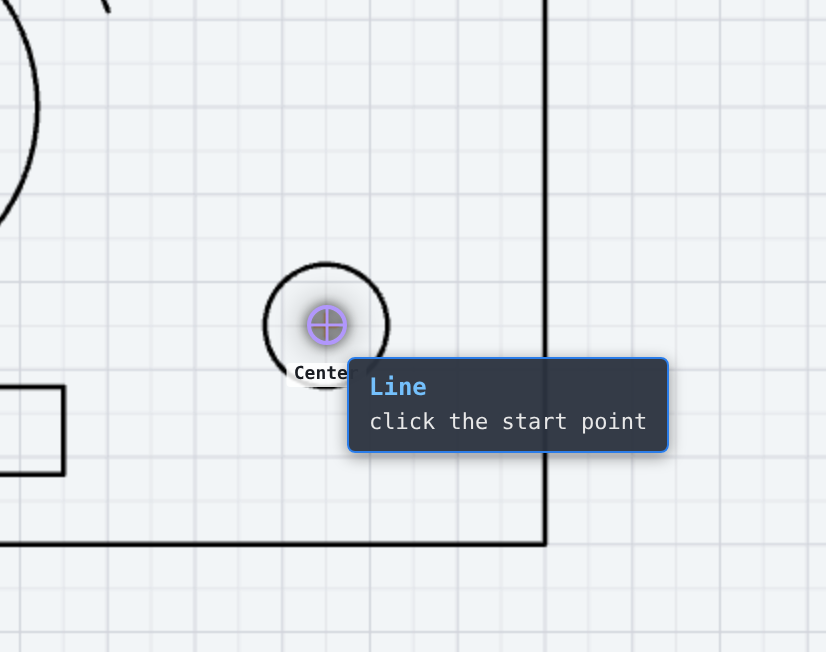

Snap «Center» at a hole
Snap Center at a hole

◎ Tangent

No key. The point on a circle or arc at which the drawn line touches tangentially — the point moves with the start point of the line.

⟋ On element

L. The point on an element (edge) nearest to the pointer — for connections anywhere on a line or a circle.

✛ Point

P. Point elements of the drawing (tool Point, centroids from measuring, coordinate table).

🔲 Grid snap

G. Snaps to the grid lines of the current grid step — with the dynamic grid therefore finer when zooming in. Whether the grid snap also works with the grid hidden is decided by the checkbox Grid snap also with hidden grid. In the tool Select the grid snap is suspended for plain clicks (it would pull the click away from the element); when dragging a grip, placing a standard part and moving with the gizmo it applies again.

⭕ Free

F. No snap — the pointer takes the exact mouse position. Only exception: the start point of a running chain (polyline, spline) is always snapped so that the chain can be closed.

⊢ Distance from endpoint

Only in the tool window and in the right-click menu, without key and without entry in the command search. On choosing it the dialog ⊢ Distance from endpoint asks for the distance in mm (factory 10); snapped is then the point that lies at this distance from the nearest endpoint along the line or arc. The status bar shows ⊢ 10 mm from endpoint. If you choose it in the middle of drawing, the cursor returns to the input field when the dialog closes (see Changing it while drawing).

Interplay

  • Snap tolerance: about 12 pixels around the pointer, independent of the zoom.
  • Tracking (TRACK in the status bar) builds on the snapped points: pause briefly over a snap point and it becomes a tracking point (Tracking and ortho).
  • Dimensioning uses the same snap; with snap Point a point-to-point dimension is created, otherwise an element dimension (Dimension).
  • Gizmo actions (set pivot, align to line) always snap with automatic.
  • Window ⚙ Snap in the status bar opens the dialog Automatic snap (⚙ Snap).

Changing it while drawing

You may change the snap mode in the middle of a drawing operation. If you change it by click — in the tool window, in the right-click menu (⚡ Snap mode) or via the command search — the cursor stays in the field of the floating input field that you used last. Its content is selected: you can keep typing at once (e.g. 25), and the entry replaces the value. If you had switched to another field with Tab beforehand (for example ∠), the cursor stays there after the change.

A line has been started and the snap mode Midpoint was clicked in the Tools window: (1) the chosen snap mode, (2) the cursor stays in the highlighted field L of the floating input field
Line started, snap mode changed by click: (1) the chosen snap mode in the Tools window, (2) the cursor stays in the highlighted field L: of the floating input field

With Distance from endpoint a dialog asks for the distance first and has the focus; when it closes — OK, Cancel, Esc or a click beside it — the cursor returns to the input field. The snap keys in the field (E, M …) work as before.
