Print window
Overview
“🖨 Print” turns the drawing into a vector graphic at paper size and opens it in a new browser window; half a second later that window calls up the browser’s print dialog. The status bar in LiberoDraft reports “Print preview opened”. The window title reads “Drucken — file name”.

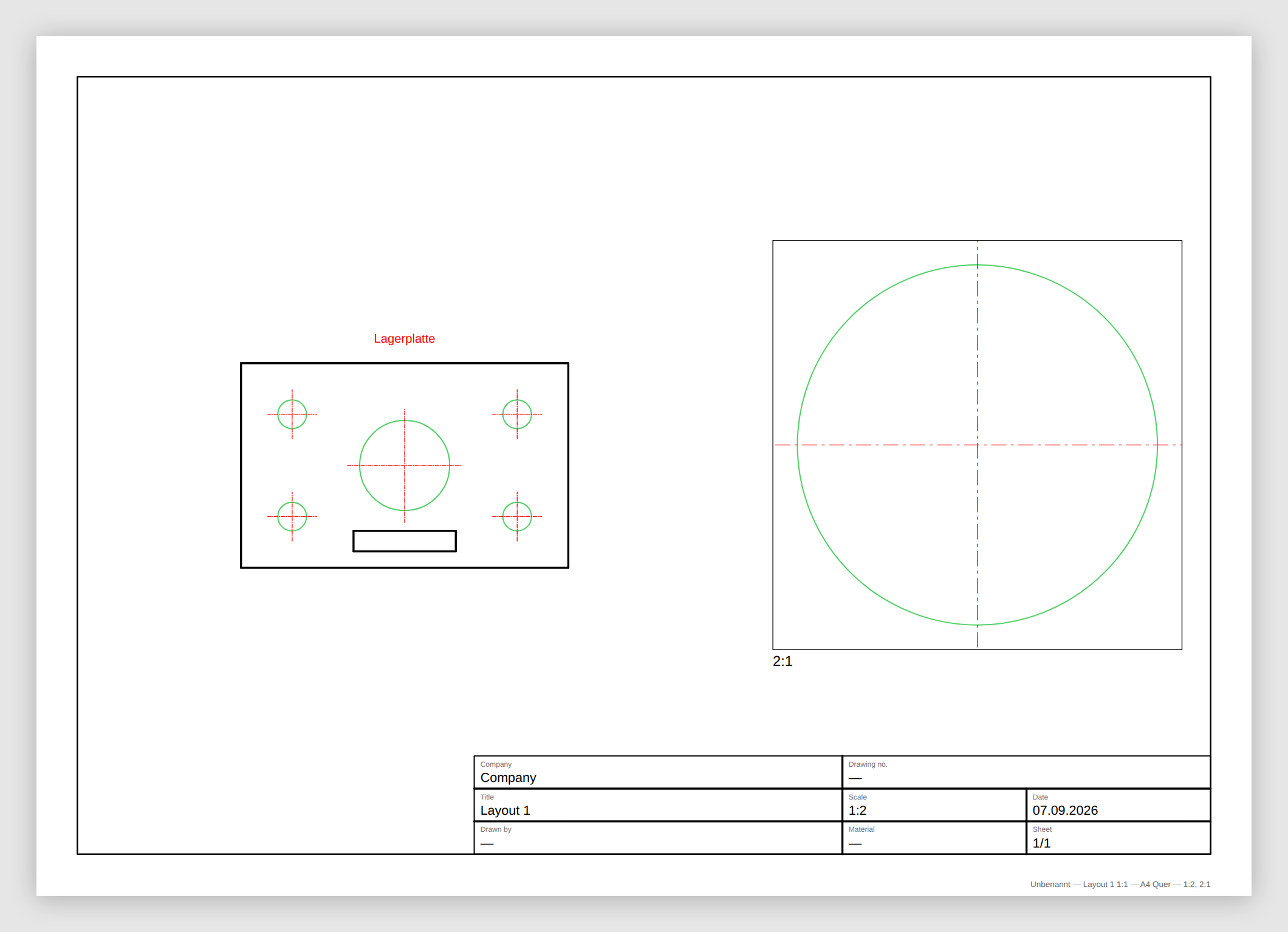

How the page is built
- The page size is fixed to the chosen paper, without browser margins.
- On screen the page sits centred on a grey background with a light shadow.
- At the bottom right there is a grey footer: file name, scale and paper format; on a sheet also the sheet name and “1:1”.
- If a print calibration is set, only the paper output is scaled by the factor, centred — the screen display stays 1:1.
In the browser print dialog
Tip
Choose “Margins: None” and 100 % scaling — margins and scale already come from LiberoDraft. Any browser scaling falsifies the scale. “Save as PDF” produces a true-to-scale PDF file.
Popups
If the browser blocks the window, LiberoDraft reports “Popup blocked — please allow popups”. Allow popups for the program’s address and print again.
