Dialog Parts list

The dialog opens with the command Show parts list or the button BOM — in the ribbon in the group Annotate below Leader, in the classic toolbar next to the annotation tools. A second click closes it. It evaluates all block instances of the model. While the block editor is open it is not available (The bill of materials is not available in the block editor — first click «Speichern» (save) or «Abbrechen» (cancel).). Context: Parts lists.

Group «Annotate» in the ribbon: (1) button «BOM»
Group Annotate in the ribbon: (1) button BOM

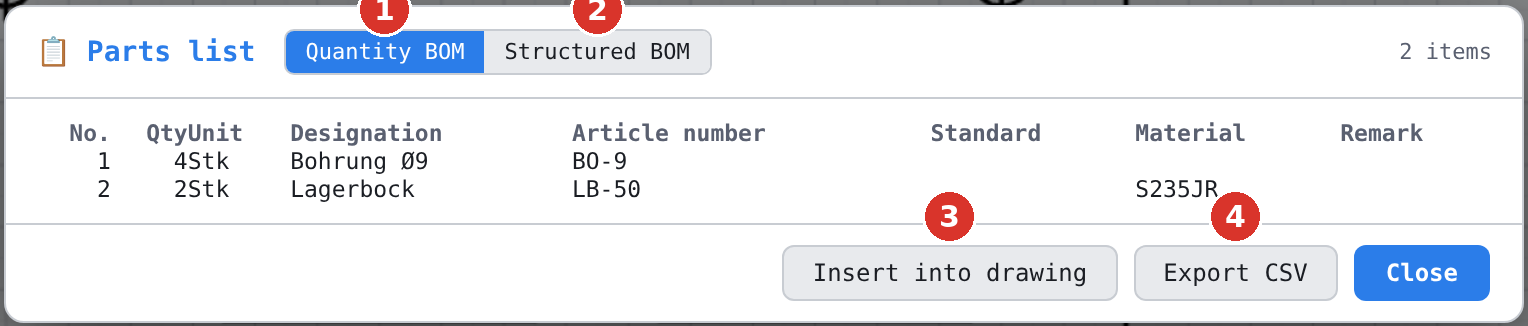

«Parts list»: (1) Quantity BOM, (2) Structured BOM, (3) Insert into drawing, (4) Export CSV
Parts list: (1) Quantity BOM, (2) Structured BOM, (3) Insert into drawing, (4) Export CSV

Question about hidden blocks

Before opening — if definitions are hidden or insertions lie on hidden layers — the program asks, depending on the case: The drawing contains n hidden block(s). Should they be INCLUDED in the parts list? OK = include · Cancel = leave out, The drawing contains n insertion(s) on hidden layers. … or The drawing contains n hidden block(s) and m insertion(s) on hidden layers. …. The answer applies to the whole drawing until the next opening or New drawing: to the quantity and structured BOM and to the numbers of the position balloons (Hidden blocks). An inserted live parts list remembers its own answer; if there is one, the item balloons follow the answer of the governing parts list (Governing parts list).

Header

Quantity BOM

Identical parts merged, sorted by designation; item = row number. Blocks with the same article number form one item.

Structured BOM

Assemblies with sub-blocks as a tree, items 1 / 1.1 / 1.2, header rows bold, quantities multiplied across the levels. Only blocks without the check box As a single part are broken down.

Structured BOM with the dissolved assembly «Flange set» (items 1.1 and 1.2)
Structured BOM with the dissolved assembly Flange set (items 1.1 and 1.2)

n items

Number of rows of the current view.

Table

No. and Qty always come first. Which further columns follow, and in which order, is set in the BOM fields window (check box In BOM, ↑/↓) — by default Unit, Designation, Article number, Standard, Material, custom fields and Remark; Weight and Price only when they are totalled, Supplier not at all. A number field with the totals setting Qty × value additionally gets a column … total. The window grows wider with the columns. Blocks without designation and article number stand grey with Name (no BOM data). Without blocks: No blocks placed in this drawing. Rows and columns hidden in the table editor of an inserted parts list are still shown in this dialog.

Totals and … total

If a number field has a totals setting, the row Total appears below the table: Qty × value multiplies each row by its quantity (column … total) and adds these up, Sum of values counts each part once. Rounding is commercial, to the decimals of the field. If a value contains both a comma and a point, the last one is the decimal separator (1.250,50 = 1250.5). Values that are not numbers are not counted; the total row names them with ⚠ n value(s) not a number, and its tooltip lists the items.

Note under the structured BOM

If the structured BOM has no sub-level, a box explains that every block counts as one part and names the way via the block's BOM data (As a single part).

Buttons

Insert into drawing

Closes the dialog and attaches the current view as table block Parts list to the mouse (Table in the drawing); status line Parts list as block “Parts list” — click to place · Balloons show quantity-BOM item numbers · follows the drawing or … structured item numbers ….

The table is a live parts list: it follows the drawing — quantities, parts, values, field selection and language — and has a total row. The one inserted last determines the numbers of the position balloons; choose another with the right-click entry 📍 Position balloons follow this parts list. A double-click or the right-click entry 📋 Edit parts list… opens the table editor, where you override cells and item numbers, add free rows, hide rows and columns and align the columns. A table from a drawing up to 4.0.0 is a fixed snapshot; the right-click entry 🔄 Replace with live parts list makes it live. Details: Parts lists.

Export CSV

Downloads stueckliste.csv (Parts list exported as CSV (n items)); if creating it fails, no file is produced and the status bar reports in red CSV export failed (reason). The CSV follows the field selection; without a selection of your own it has the fixed columns as before. Rows and columns hidden in the table editor are still in the CSV. Structure: CSV export.

Close

Also Esc, a click beside the dialog or calling the command again close it.
