Check & clean up drawing (dialog)
While the check runs

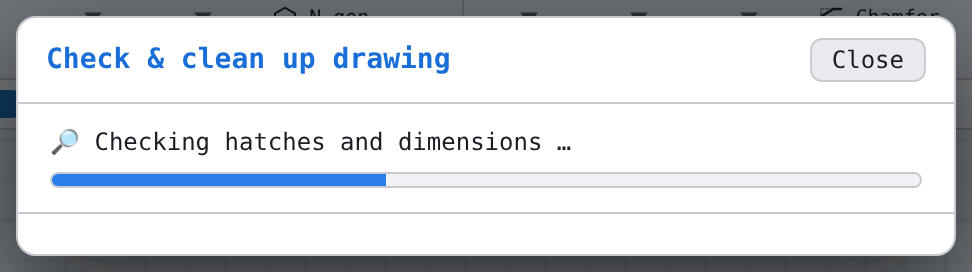

The check runs in five steps; the dialog names the current step and shows a progress bar: “Checking geometry …”, “Looking for coincident elements …”, “Checking hatches and dimensions …”, “Checking references (groups, welds, constraints) …”, “Checking geometry recommendations (polylines, splines, blocks, hatches) …”.
The check works in the model. On a sheet the command first switches there and reports “Cleanup works on the model — switched to model space”; a following Ctrl + Z then acts in the model.

The result

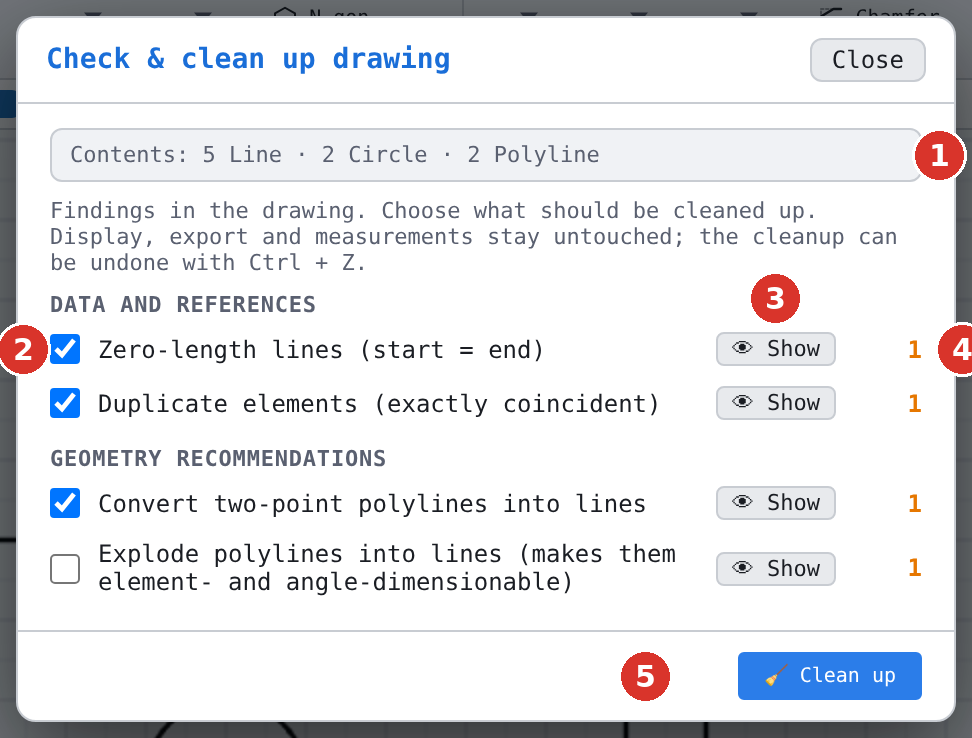

| Area | Meaning |
|---|---|
| “Contents:” | number of elements per type, plus the hatches |
| Explanatory line | “Findings in the drawing. Choose what should be cleaned up. Display, export and measurements stay untouched; the cleanup can be undone with Ctrl + Z.” |
| “DATA AND REFERENCES” | finding types pointing at faulty or useless data — ticked in advance |
| “GEOMETRY RECOMMENDATIONS” | suggestions for easier further use; the explode suggestions are not ticked in advance. Locked and invisible blocks (layer, group, Z level, Isolate, eye) and empty blocks are not offered for exploding; exploding keeps dimensions, sub-blocks and groups. |
| “👁 Show” | fits the view to the findings and makes them blink orange for about 2.8 seconds |
| Number on the right | how many findings of this kind |
| “🧹 Clean up” | carries out the clean-ups ticked and closes the dialog |
If a file with unnecessary ballast has been loaded, a note about its size stands at the top as well.
“Dimensions without valid reference geometry” also lists dimensions on a part in a block whose part was deleted in the block editor; “🧹 Clean up” removes them.
When everything is in order

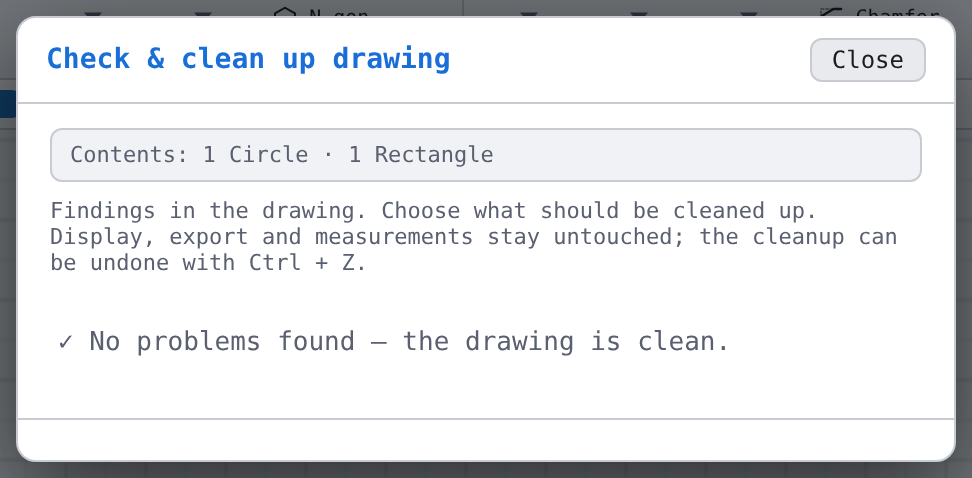

If the check finds nothing, the dialog shows “✓ No problems found — the drawing is clean.” and offers no cleanup.

After the cleanup
The status bar reports “Cleaned up: 1 element removed”, “Cleaned up: n elements removed” or — if elements were converted or exploded as well — “Cleaned up: n elements converted/exploded, m removed”. If nothing was ticked, it says “Nothing to clean up”.
