Save/load settings (Setup)

Purpose

Opens the Settings dialog with language, input mode, precision, drawing & snap, appearance, dimension layer, view & mouse (including Always highlight — light up elements under the mouse pointer), line types, the box Bill of materials and the buttons for saving, loading, exporting, importing and resetting.

Access

  • Ribbon: gear at the right of the bar (1), then 💾 Setup (2).
  • Classic toolbar: gear on the right, entry Setup (the same list).
  • Command search : type settings or setup, entry Save/load settings (category File).

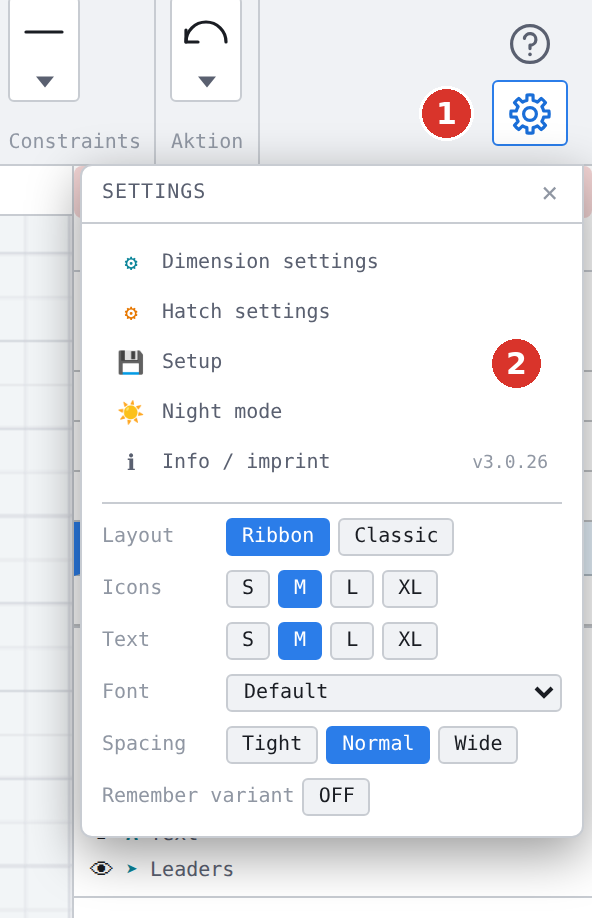

Ribbon: (1) gear, (2) entry «Setup»
Ribbon: (1) gear, (2) entry Setup

Procedure

  1. Call the command. The dialog appears centred, the drawing is dimmed.
  2. Change fields. Language and icon size (constraints) take effect immediately, everything else with Apply.
  3. Apply saves permanently and leaves the dialog open — the fields are rebuilt from the saved state, limited values are visible at once (Settings applied). Close or a click beside the dialog discards changes not applied.

Options

All fields are described on the page Settings dialog; the management (save/load locally, export/import, panel order, factory defaults) under Manage settings.

Settings dialog: (1) Always highlight, (2) BOM fields (template)…
Settings dialog: (1) Always highlight, (2) ☰ BOM fields (template)…
  • Always highlight (1): on by default; when off, nothing lights up under the pointer any more — the same setting as the HOVER toggle in the status bar (Switching off highlighting).
  • Glow up to: … elements in the box Appearance (factory 1000): up to this number of selected elements the selection is drawn blue with a glow; above it only a dashed frame around everything selected shows the selection, 0 always highlights (Glow up to … elements).
  • BOM template (2): ☰ BOM fields (template)… defines the custom BOM fields every new drawing receives. The fields of a drawing travel with its file; the template does not change existing drawings. 🔄 Factory defaults leaves the template in place.

Check on loading

Settings are checked every time they are read — at start-up, on 📥 Import (JSON) and in an opened drawing. An unreadable value silently falls back to the default; fields with a range (grid, precision, print scale …) keep within it, an unchanged field stays as it is. The import takes only LiberoDraft entries; a hand-over from an add-on and the clipboard do not travel along. If 📤 Export (JSON) fails, no file is created, the window stays open and the status bar reports in red Settings not exported (reason).
