Polygon

Purpose

Draws a regular polygon with 3 to 200 corners — hexagon, octagon, triangle and everything in between. The polygon is created as one element and can be moved, rotated and scaled as a whole.

Access

  • Ribbon: group Draw, button N-gon (7) — the polygon stands on its own, without a family.
  • Classic toolbar: button in the Draw tool group.
  • Command search : Polygon.

Procedure

The floating window Polygon opens with the tool; it holds the number of corners and the position relative to the circle. Then:

  1. Click the centre (1).
  2. Drag or enter the radius (2) — Drag or enter the radius…. The preview rotates with the mouse, so the polygon stands in the desired position right away.

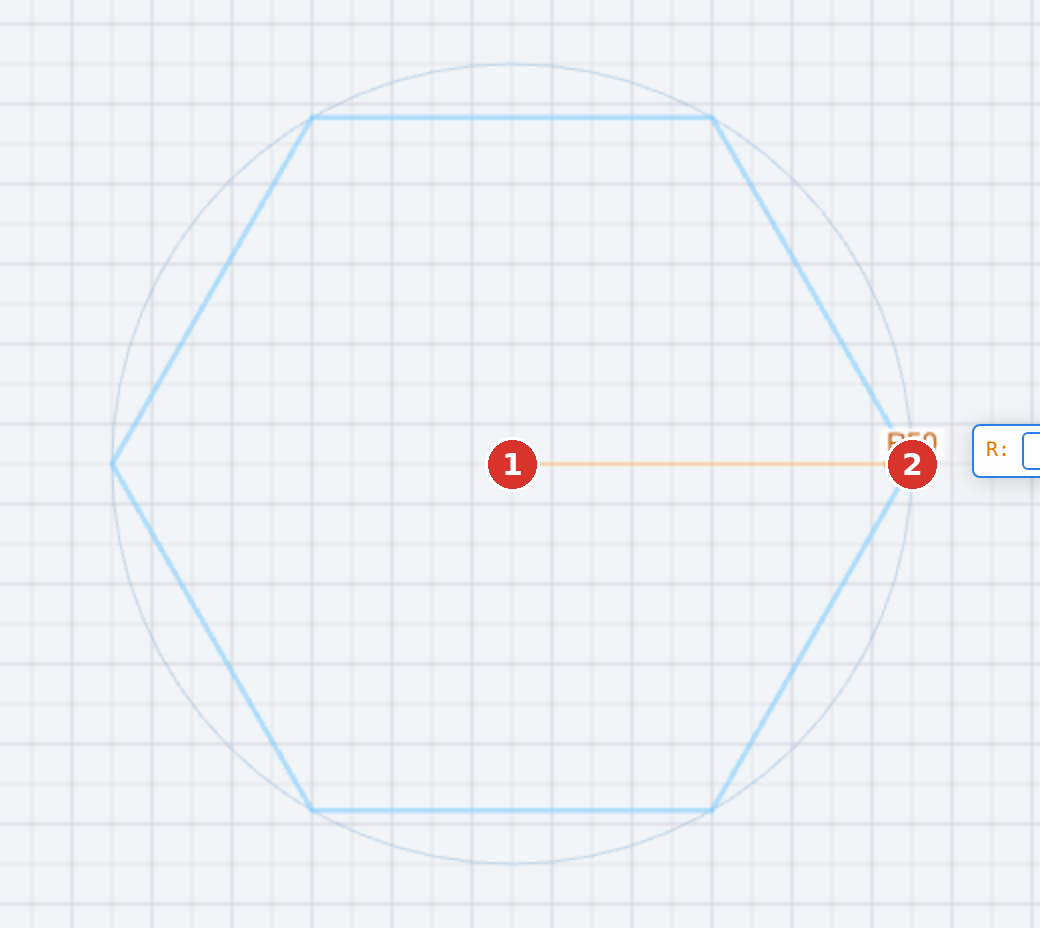

(1) centre, (2) radius; the auxiliary circle shows what the position refers to
(1) centre, (2) radius; the auxiliary circle shows what the position refers to

Esc cancels. The window closes when you end the tool.

Corners and position

The two entries in the window apply to all polygons until you change them:

  • Corners (N) (1): 3 to 200; the buttons − and + change the value step by step.
  • Position on circle (2): inscribed (corner follows cursor) puts the corners on the auxiliary circle, circumscribed (side follows cursor) puts the sides tangentially against it — with circumscribed the radius therefore equals the width across flats divided by two.

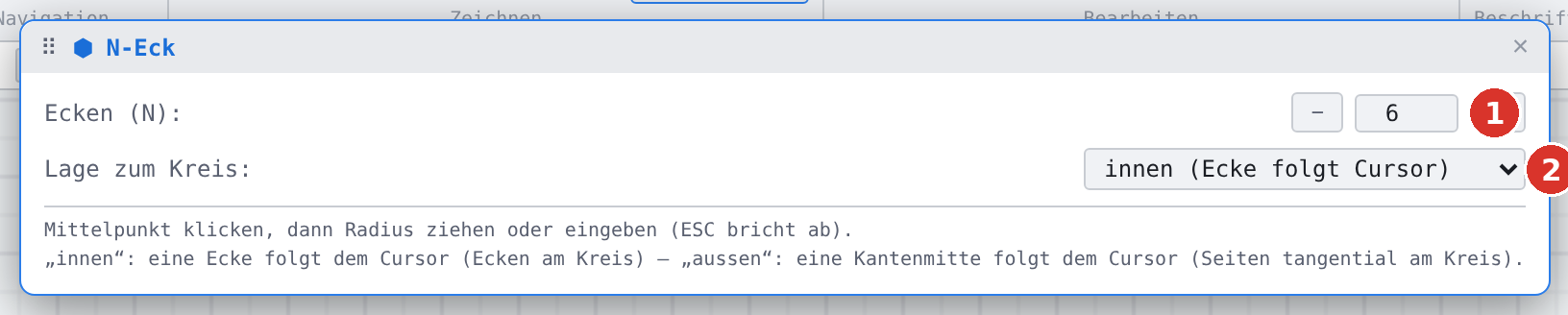

The window «Polygon»: (1) number of corners, (2) position relative to the circle
The window Polygon: (1) number of corners, (2) position relative to the circle

Described field by field: window Polygon.

Options

  • The polygon is created on the active layer; pick up attribute (J) applies beforehand.
  • Object snap applies to the centre; with K it can be entered as a coordinate.
  • Every polygon is a separate step for Undo.
  • An unreadable number of corners (e.g. «abc») is refused with a red message. The window follows a change of the interface language right away.
