Standard parts
A standard part is a ready-drawn part from the standard part library: screws, nuts, bearings, profiles, symbols for electrical, hydraulics, sanitary, architecture and much more. The library lies on the server in the folder normteile/ next to the program, organised in folders and subfolders. You choose a part in the panel Standard parts, place it with the mouse and adjust rotation and scale while placing. Your own parts can be saved from any drawing as a standard part file.

Step by step: Insert a standard part, Save a standard part. Commands: Save standard part from selection, Insert local standard part, Edit local standard part. Panel and placement HUD: Inserting and editing standard parts.
Library and folder tree
At start-up the program reads the whole folder tree under normteile/ from the server — including empty folders, so that you can click down to the desired subfolder. The selection field at the top of the panel shows the path (normteile › Maschinenbau › Schrauben); the tiles below show the subfolders (with folder icon) and the standard parts of the open folder with their preview image. The tile .. leads one level up. When you add files on the server, ⟳ Reload the list from the server is enough. Without a folder normteile/ the panel reports No standard parts found (folder normteile/ on the server).
Upload files and folders containing umlauts to the server in UTF-8. From Windows, some FTP clients store the names in Windows-1252; the program still shows them, but reports n name(s) were not stored in UTF-8 and asks for a new upload.
If the operator of www.liberodraft.com requires registration, you can always browse the folders of the library, but inserting a standard part or opening it with ✎ only works with a start link that is still valid for more than 20 days. Otherwise the window 🔒 Not unlocked appears (Registration).
Live search
The search field searches across all folders by name or folder path; several words must all occur (M6 4762 finds the ISO 4762 screws M6). The hits show their folder; a right-click on a hit tile opens its folder. Esc clears the field. Without hits: No standard part matches the search.
Inserting and placing
A click on a tile loads the part from the server and attaches it to the mouse. The insertion point of the part (for screws the head bearing surface on the axis, for nuts, washers and symbols the centre) sits at the snap point under the mouse. The placement HUD at the bottom shows angle, factor, mirror, Base, Measure angle and Done; the keys R, Shift+R, H, V, +, −, B and the mouse wheel with Ctrl or Alt act directly (placement HUD) — the letter keys even while the cursor is in the field Angle or Factor. Every click places a part and reports Element(s) pasted (n×) — keep clicking or ESC to finish; Esc, right-click or Done end (Placement finished — n standard part(s) inserted).

Without the check box Insert as block, the elements of the standard part enter the drawing as a group (Element(s) pasted.) — together with their own dimensions, hatches, welds and constraints, if the part brings any. Afterwards they can be changed individually.
A standard part at the mouse stays at the mouse on “Open…” and “New drawing” and lands in the new drawing. Ctrl + Z after inserting also takes back block definitions, new layers and parts list fields brought in, provided they are not used anywhere else. If inserting fails, the drawing stays unchanged and the status bar reports in red ““name” not inserted — drawing unchanged (reason)”; unreadable values of a standard part file are cleaned up (“⚠ n damaged entries cleaned up · …”).
Insert as block
With the check box, every inserted standard part immediately becomes a block with the name of the part. The BOM data are taken from the part file: designation, article number, standard, material, unit, weight, supplier, price and remark from the field bom; if it is missing, title, article number, notes and tags of the field meta are used. This way the standard part counts in the parts list and can carry balloons. If the drawing already contains a block with the same name and the same geometry, it is reused — the new instance counts towards the existing item; with different geometry, Name (2) is created. This is the recommended way for purchased parts.
If the standard part file brings its own parts list fields, the program adds them to the fields of the drawing and names them in the status bar (Parts list fields). If it brings a live parts list, the position balloons then follow this parts list (governing parts list).
On current layer
Standard parts bring their own layers: NT-Kontur (solid), NT-Mittellinie (dash-dot), NT-Verdeckt (dashed), NT-Gewinde and NT-Dünn (thin); landscape and utility line symbols bring further layers per medium. On the first insertion these layers are created in the drawing. With the check box On current layer the whole part lands on the active layer instead — the loose elements, the hatches and also the content of the blocks the part newly brings into the drawing, likewise with Insert as block. Colour and width come from the layer, an own line type is dropped; the preview at the mouse already shows the part this way. The standard part layers are not created. Both check boxes are kept as settings and always show the setting in force, also when an opened drawing brings its own settings.
A block definition the drawing already has stays untouched: a standard part block that already lies on the standard part layers, for instance from an earlier insertion without the check box, keeps its layers even when inserted again with the check box. If it should go to another layer, move its content afterwards (Move layer content).
Saving your own standard parts

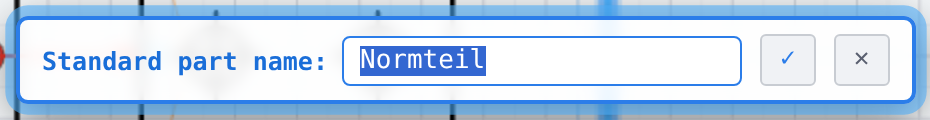

Save standard part from selection writes the selected elements — with dimensions, hatches, constraints, welds, groups and blocks — as file Name.json into the download folder. The insertion point is the origin of the drawing; therefore draw the part so that its insertion point lies at (0, 0). On the server, place the file in normteile/<category>/ and reload the list. For a part without server access there is Insert local standard part directly from the file.

Editing local standard parts
Edit local standard part opens a standard part file as a working drawing: the current drawing is replaced after confirmation (Ctrl + Z brings it back in a single step), the part lies in original coordinates, and a point marks the insertion point. The working drawing carries the name of the standard part and is not linked to any file — Ctrl + S asks for a name and never overwrites the previous drawing. The same applies to ✎ on a standard part tile. In the block editor the command is locked; a damaged standard part file leaves the drawing unchanged (red message ““file” cannot be opened — drawing unchanged (reason)”). Change, select everything and Save as standard part again — this creates a new version of the file.
File format
A standard part file is a JSON file with the identifier liberodraft-part: name, insertion point, preview image, elements, dimensions, hatches, constraints, welds, groups, layers, block definitions and the fields bom and meta for the parts list. Files without this identifier are rejected (Invalid standard part file). Block files .ldblk are a different format (Block files).
Disclaimer
Under the list stands the note No warranty: check the dimensions and standard conformity of inserted standard parts yourself before use; the detailed version is found in the info window ℹ. The library is a drawing aid, not a replacement for the standard or the manufacturer's data sheet.
