Import overview

Overview

After every DXF import LiberoDraft shows what was read in and offers the sensible clean-ups straight away. The dialog thereby also explains why foreign polylines cannot carry element and angle dimensions — and supplies the remedy at the same time.

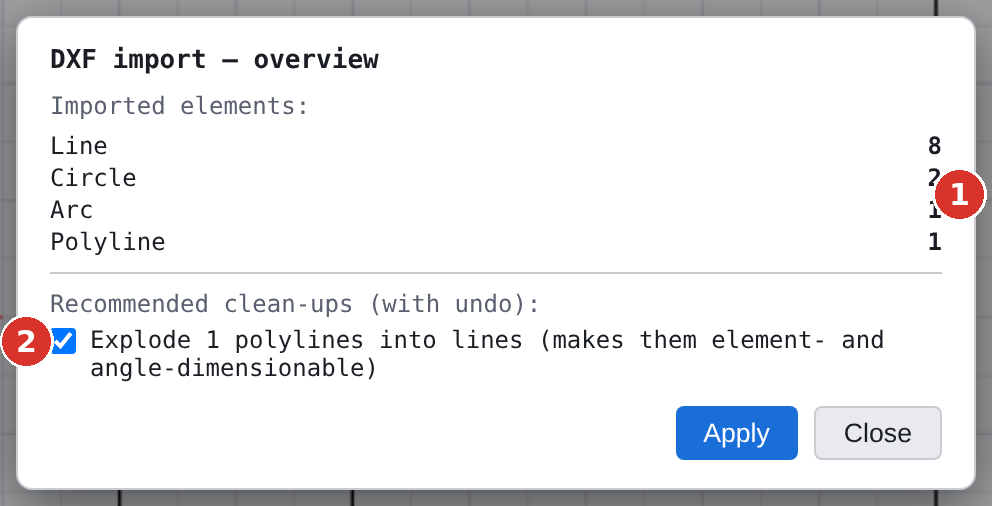

Overview after the import: (1) tally per element type, (2) recommended clean-up with a tick box
Overview after the import: (1) tally per element type, (2) recommended clean-up with a tick box

The fields

AreaContent
“Imported elements:”count per element type — line, circle, arc, ellipse, rectangle, polyline, spline, point, text, leader, image, block instance
Note line“n two-point polylines were imported as lines automatically”, where that applied
“Recommended clean-ups (with undo):”explode polylines into lines (ticked in advance) · explode splines into lines · explode blocks
“Apply”carries out the clean-ups that are ticked
“Close”closes the overview without changing anything

If the LiberoDraft data in the DXF carried unreadable values, the program cleans them up while reading, and the status bar reports in red, at the front, ⚠ n damaged entries cleaned up · …. If Open… produces nothing readable from a DXF, the previous drawing stays unchanged and the status bar reports in red “…” cannot be opened — drawing unchanged (No entities in the DXF).

The dialog only appears if elements were actually read. The check follows; if it finds anything, its dialog opens by itself.

Note

“Apply” can be undone with Ctrl + Z. If in doubt, close the overview and decide later through Check & clean up drawing.
