Exporting as SVG

Goal

The finished sheet as a vector file that can be placed into a document or shown in a browser.

Steps

  1. Switch to the sheet.
  2. File menu File → “⬇ Export SVG” (1).
  3. Answer the prompt “Export paper space — OK = sheet, flattened (scale applied) / Cancel = model content” with OK.
  4. The file is downloaded; the status bar names the sheet, the number of elements and the file name.

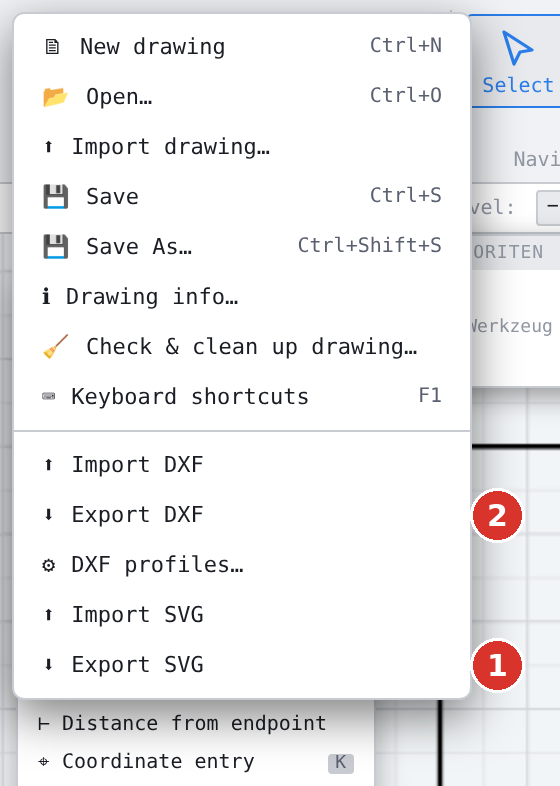

(1) Export SVG, (2) Export DXF
(1) Export SVG, (2) Export DXF

Result

An SVG file at sheet size with all viewport contents at the right scale, plus frame, title block, dimensions and hatches.

SVG from the model

In the model, file menu → ⬇ Export SVG is enough. The file shows the drawing like the printout, at 1:1 in millimetres: geometry, blocks and standard parts, dimensions, hatches, position balloons, remarks, leaders, feature control frames, datum features, points and images — everything visible; what is hidden (layer, Z level, isolate, hidden blocks) is left out. Colours and line widths come from the drawing; black-and-white and the other settings of the Print window have no effect. If something is selected, the program asks OK = export the selection only (Cancel = export all elements); then the selected elements, dimensions and hatches go into the file, for a selected block its dimensions and hatches as well. If nothing is visible, no file is created.

Note

If creating the file fails, the status bar reports in red SVG export failed (reason), and no file is created. If you read such an exported file back in with Import SVG, only the geometry comes back — dimensions, hatch strokes and annotations count as presentation and are skipped.

Note

Line widths appear in the file in millimetres — where a line follows its layer, that layer’s Width (printer mm) applies. Caps and joins are round. For details see Lines in the file.
