Purpose
Opens the floating print dialog. In the model you use it to place a print area at paper size and set the scale; on a sheet, that sheet is output 1:1. “🖨 Print” builds the page and opens it in the browser’s print window.
Access

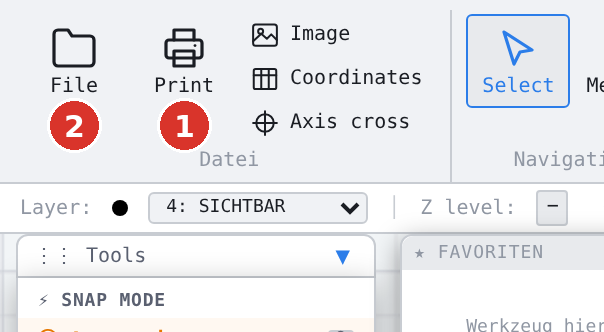

- Ribbon, group “File”: the large “Print” button (1).

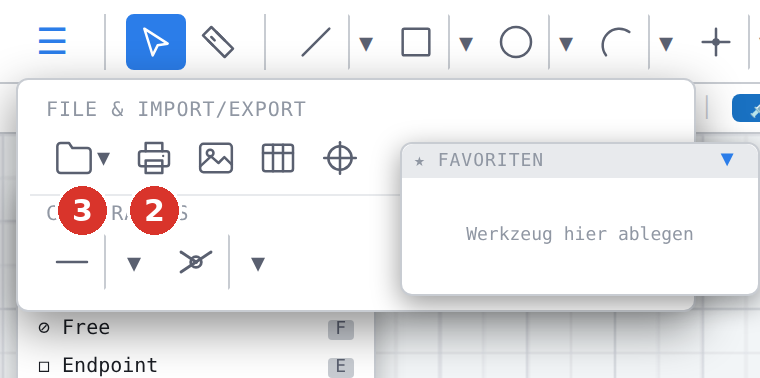

- Classic bar: at a narrow window width the whole “File & import/export” group sits in the overflow menu “☰” on the far left (1) — “Print” is inside (2).
- Key Ctrl + P.
- Command search : “Print” (category File).


Procedure in the model
- Ctrl+P — the dialog appears and the print area hangs from the pointer (“Position the print area — click = fix, Ctrl+wheel = scale, wheel = zoom”).
- Set paper, orientation, scale and margins (Print dialog).

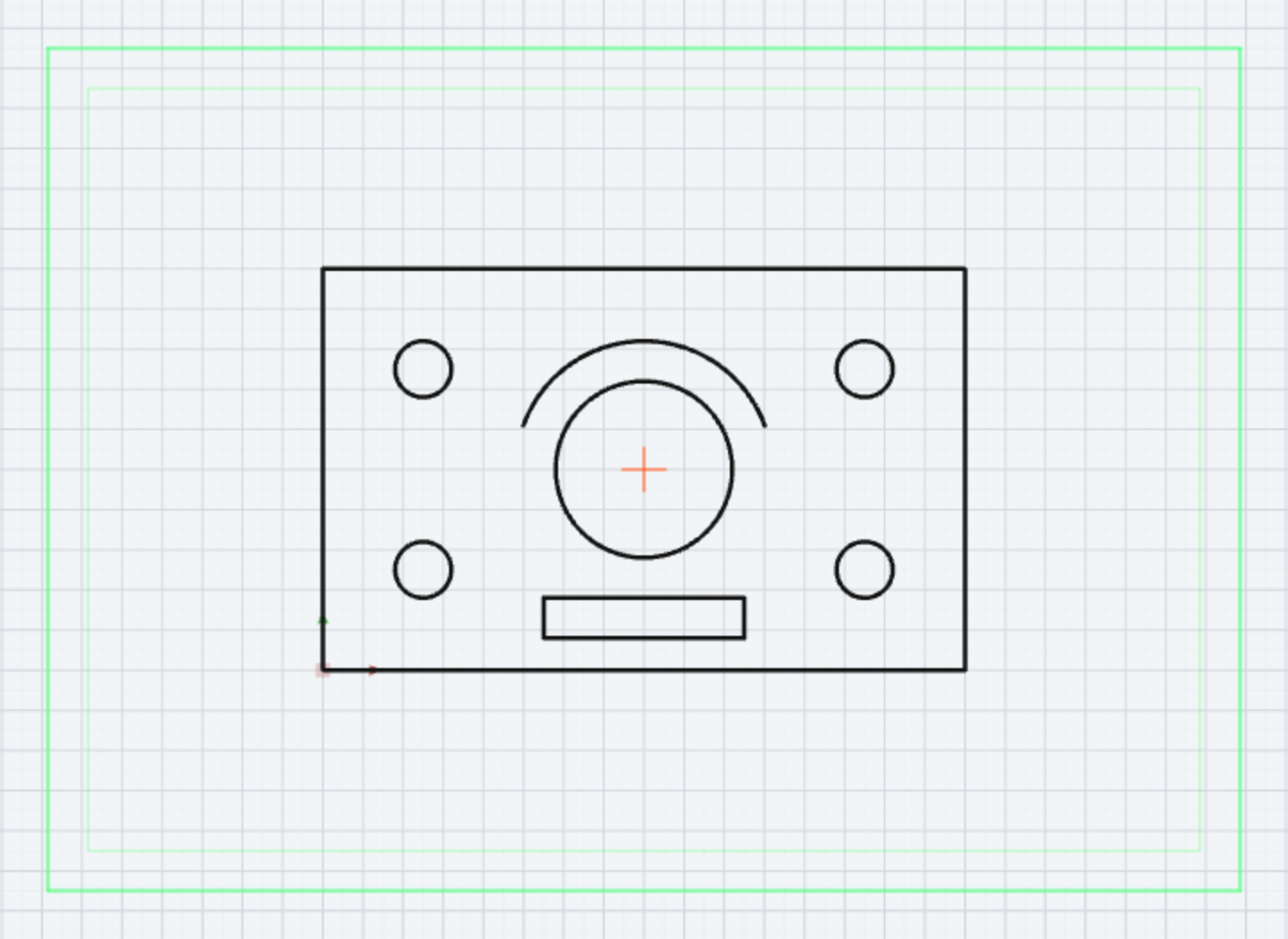

- A click on the drawing area fixes it (“Print area fixed — click the canvas = reposition, 🖨 = print”); another click releases it (“Move the print area — click = fix”).
- “🖨 Print” — the print window opens (“Print preview opened”).

Procedure on a sheet

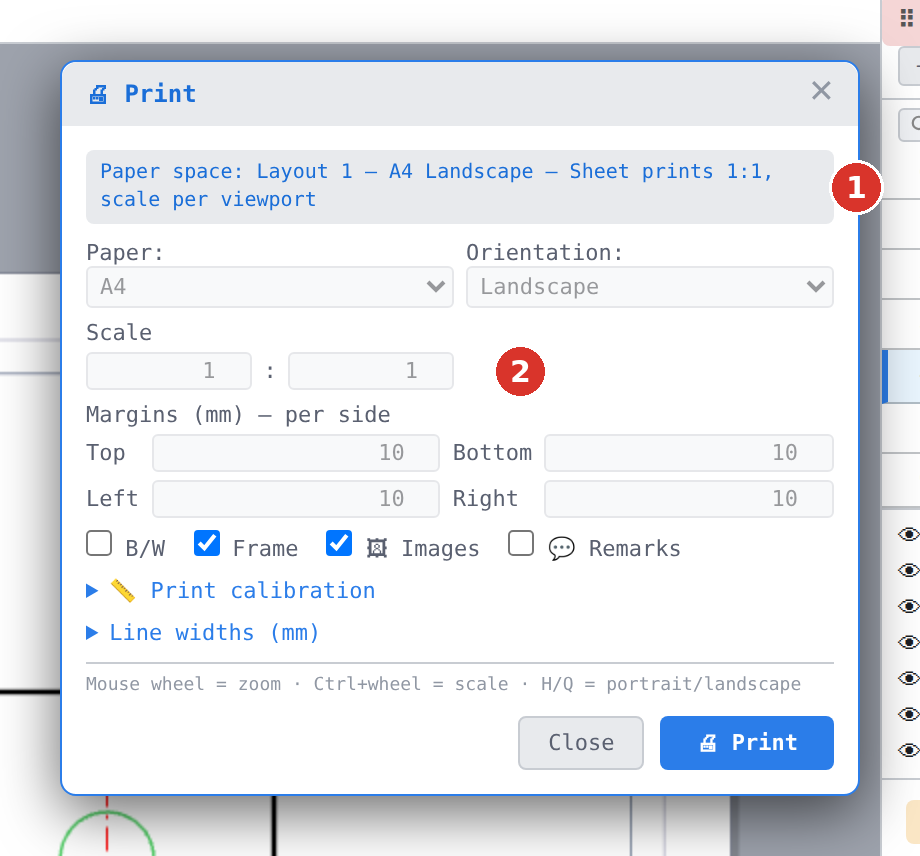

With a sheet open there is nothing to place: “Printing layout: the sheet is output 1:1”. Paper, orientation, scale and margins are greyed out, and the note line names the sheet, its format and “Sheet prints 1:1, scale per viewport”. “🖨 Print” outputs the whole sheet.

Options
| Action | Effect |
|---|---|
| Mouse wheel | zoom the view |
| Ctrl + wheel | scale in 10 % steps |
| H / Q | portrait / landscape |
| Ctrl + P with the dialog open | |
| “Close” or ✕ | close the dialog, the print area disappears (“Ready”) |
The dialog can be dragged by its title bar.
Effect
Printing does not change the drawing. All settings — line widths, print profiles and calibration included — belong to the program settings and are kept (Printing).
The scale accepts values from 0.001 to 1,000,000 per field; an invalid entry (e.g. “abc” or “1e13”) is refused with a red message. If printing fails (for example because of a damaged dimension), everything stays as it was — the dimension settings too —, the Print window stays open and the status bar reports in red Printing failed (reason); the cause is also written to the browser console.
Export SVG in the model draws like the print, 1:1 in mm, but without the Print window: B/W, print colours, widths per layer and the line widths of the window do not apply there.
