Coordinate entry
Purpose
Sets the first point of a drawing tool to a typed absolute coordinate — instead of hitting it with the mouse. Afterwards the tool continues normally; the following points are clicked as usual or typed relatively in the flying input field.
Access
- Key: K — after choosing a drawing tool and before the first click.
- Tool window on the left, entry ⌖ Coordinate entry (2).
- Command search : Coordinate entry.

Applies to line, rectangle, rectangle (3 points), circle, circle (3 points), arc (all three kinds), polyline and point. With another tool the status bar reports Coordinate entry: choose a drawing tool first (line, rectangle, circle, arc, polyline, point); if a point has already been set: Coordinate entry applies to the start point — this function is already drawing.
Procedure

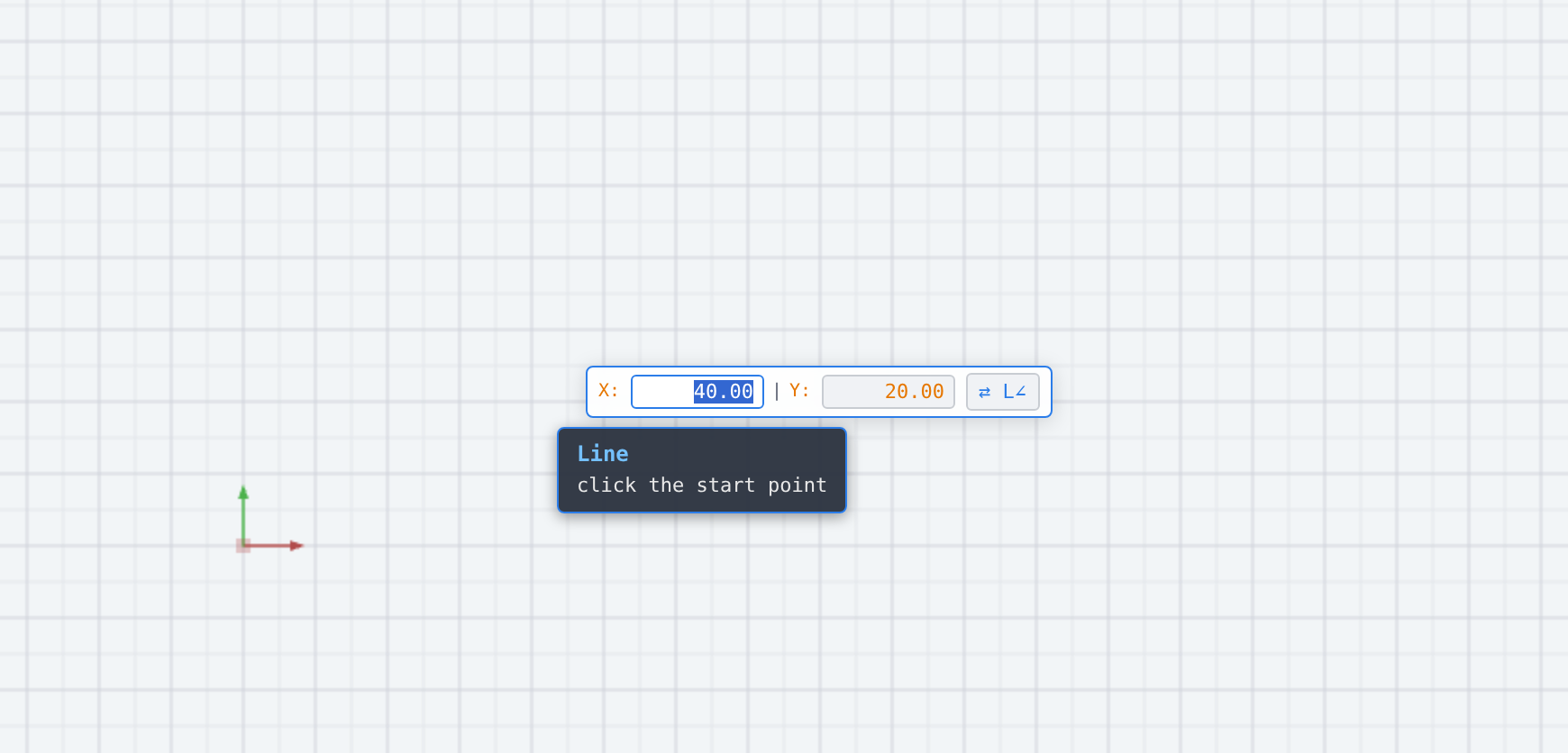

- Choose the drawing tool, press K. Next to the pointer the input field appears — depending on the coordinate mode with X and Y (cartesian) or L and ∠ (polar, length and angle from the origin). Preset is the current pointer position.
- Type the values, Tab switches the field. The button ⇄ L∠ or ⇄ XY in the field switches the mode; the space bar as well.
- Enter sets the start point; the tool continues with the next step. Esc cancels.

The status bar guides: Start point: X / Y (absolute coordinate) · ⇄ switches to polar · Enter or Start point: length / angle from the origin · ⇄ switches to X/Y · Enter.
Options
- Coordinate mode polar or cartesian: space bar, button in the field or 📐 at the left of the status bar (Coordinate mode); the choice also applies to the flying input field while drawing.
- For the further points of a tool there is no absolute entry — they are typed relative to the previous point (ΔX/ΔY or L/∠).
Invalid numbers and keys in the input field
What applies here applies to every flying input field of the drawing and modify tools (length/angle, ΔX/ΔY, radius, distance …):
- A number is accepted if it is readable, finite and at most 1,000,000,000,000 in magnitude; comma and point count alike, simple expressions such as 5*2 are evaluated.
- An invalid entry (unreadable like abc or 5*, infinite like 1e999, too large like 1e13) is refused: the status bar reports in red Not a valid number: … or Number too large: … — at most ±1,000,000,000,000, the field gets a short red outline and stays open, nothing is drawn and the tool keeps running. Correct the value and press Enter again.
- While the focus is in the input field, Ctrl + N (New drawing), Ctrl + O (Open), Ctrl + S (Save) and Ctrl + Shift + S (Save as) work as they do outside. All other keys stay with the field: digits, Ctrl + A, Ctrl + C, Ctrl + V, Ctrl + X, Ctrl + Z and Ctrl + Y act on the text of the field — to undo a step meanwhile, use the Undo button.
- If you change the snap mode by click while drawing (tool window, right-click menu, command search), the cursor stays in the field you used last; its content is selected, and the next entry replaces it (Snap mode).
