Hatch

Purpose

Fills a closed area with a pattern. The boundary is searched automatically around the clicked point; islands are left clear. Background and connections: Hatching.

How to start

  • Ribbon: group Annotate, button Hatch. If the window is narrow the group is collapsed — the arrow below the group icon (1) opens the list with Hatch (2).
  • Classic toolbar: button Hatch (1); the gear on the right (2) opens the list with Hatch settings (settings).
  • Command search : type Hatch.

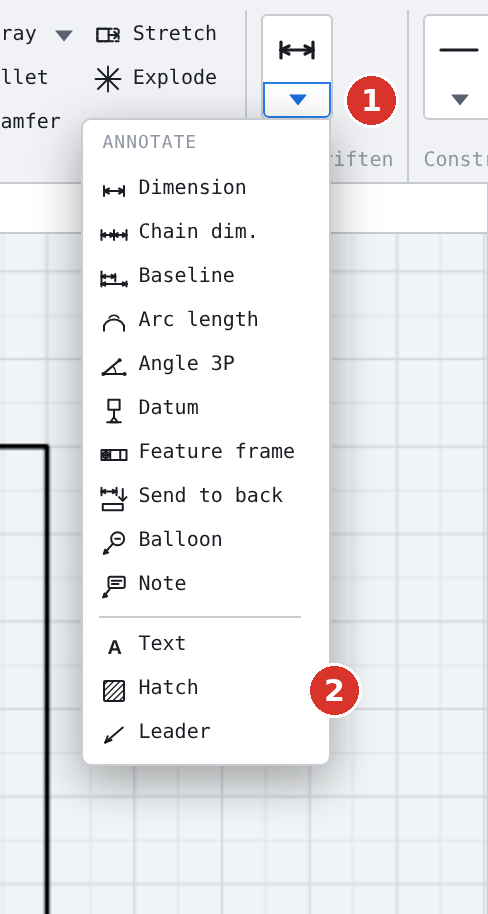

Ribbon, group «Annotate» expanded: (1) group arrow, (2) entry «Hatch»
Ribbon, group Annotate expanded: (1) group arrow, (2) entry Hatch
Classic toolbar: (1) button «Hatch», (2) gear with the list of settings
Classic toolbar: (1) button «Hatch», (2) gear with the list of settings — left halfleft half
Classic toolbar: (1) button «Hatch», (2) gear with the list of settings — right halfright half
Classic toolbar: (1) button Hatch, (2) gear with the list of settings

Starting the tool opens the Hatch Settings dialog as a floating window next to the drawing; it stays open while the tool is active and closes when you switch to another tool. On start the snap mode switches to Free (status bar Snap mode: ⭕ Free).

Procedure

  1. Start the command. The tooltip at the pointer says Hatch: click inside a closed area.
  2. If needed, set pattern, angle, spacing and further values in the dialog — changes apply immediately, without OK.
  3. Click inside the area to fill. During the search Hatch: searching for the boundary … appears, then the hatch is created and the status bar reports pattern and number of islands.
  4. Click further areas. Each area gets its own hatch with the current settings.
  5. Esc or another tool ends the command.

If no closed area is found, a message with cause and remedy appears — see Messages.

To edit an existing hatch use the Select tool: a double-click on the hatch selects it and brings the Properties section of the panel into view — it shows pattern, angle, spacing, colour and the other values of this area. If the hatch lies on a locked layer or in a locked group, the click shows the hint with the padlock instead.

Hatch too dense

If a hatch would consist of more than 200,000 lines — for example because the spacing is tiny or the area huge — the program shows it as a fill in its colour, on screen and in print (1). The status bar reports in red Hatch too dense — shown as a fill, increase the spacing (2), once per hatch and setting. The spacing you set is kept (panel, file, DXF); if you increase it, the lines appear again.

Left an ordinary hatch, right the same with spacing 0.0001: (1) shown as a fill, (2) red message in the status bar
Left an ordinary hatch, right the same with spacing 0.0001: (1) shown as a fill, (2) red message in the status bar

A hatch without an area (a boundary with fewer than three points or with unreadable points, for example from a damaged file) shows nothing.

Options

All options are in the Hatch Settings dialog and are explained there field by field. The most important ones:

OptionMeaning
Area definition: AutomaticThe program searches the boundary around the click point (factory setting).
Area definition: ManualYou click the boundary elements one by one and create the hatch with Enter — see Manual area definition.
Exclude islandsClosed shapes inside the boundary stay clear.
Visible area only (faster)Boundary search only within the view; the whole area must be visible.
Only solid lines as boundaryDashed, dotted and dash-dot lines do not bound.

Keys

KeyEffect
EnterIn Manual mode: create the hatch from the chosen elements
EscDiscard the manual selection or end the command
Ctrl while dropping the seed pointCopy of the hatch at the drop point instead of moving it
PgUp, PgDnChange the Z level of the selected hatch
DelDelete the selected hatch
JPick up: adopt pattern, layer and opacity of a hatch as default
