Item balloon
Purpose
Places an item balloon: a circle with a leader that hangs on a block instance and shows its item number from the parts list. On any other element or in empty space a free balloon with your own text is created. The balloon belongs to the dimension family and takes text and arrow size from the Dimension settings.
Access

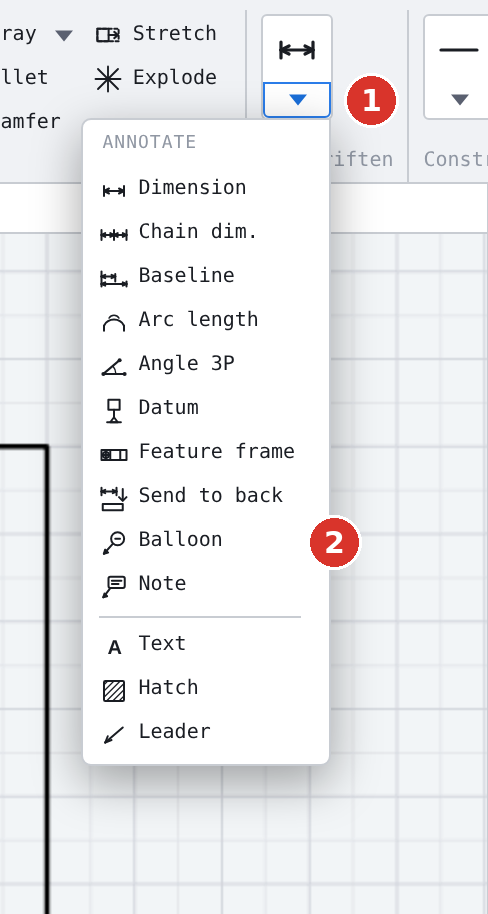

- Ribbon: group Annotate, list of the split button Dimension, entry Balloon Balloon (2 in the picture).
- Classic toolbar: list of the split button Dimension, entry Balloon.
- Command search : type Balloon (entry Position balloon).

Procedure
- Choose the tool. Status line: Item balloon: click an element (ESC ends). Block instances under the pointer light up blue.

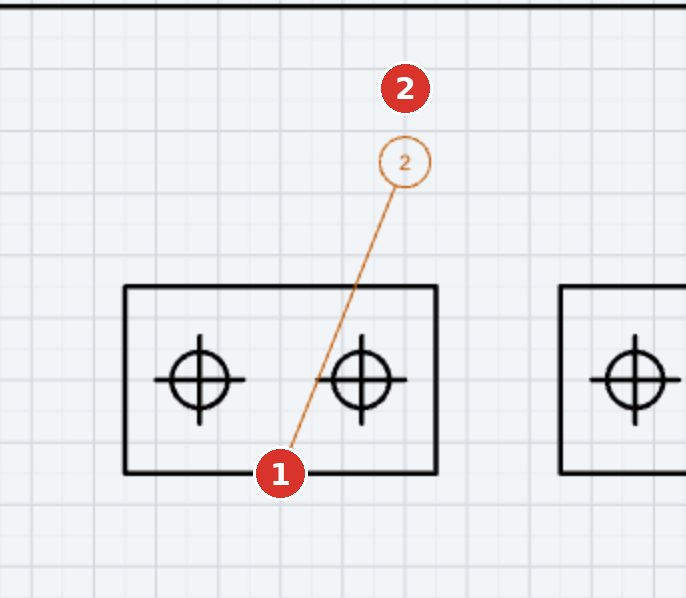

- Click an edge of a block instance — the arrow tip binds to this point. The circle hangs at the mouse; the status line names the number: Item balloon n: click its position.
- Click the position of the circle: Balloon n placed — click the next block instance (ESC ends). The tool stays active for the next balloon.

If the first click hits another element, a free balloon is created (Free balloon: click its position — edit the text via double-click); in empty space likewise, without binding. Free balloons show ? until you enter a text by double-click (dialog Balloon text).

Numbering
The number is live: it is the item of the definition in the quantity or structured BOM and follows every change — also when the block is replaced or the parts list is re-sorted. Therefore it cannot be overwritten at the balloon itself (Number is live from the BOM — for free text, attach the balloon to a non-block element); you give a different number in the No. column of the live parts list (double-click the table) — the balloons follow it. If the row is hidden there with the eye, the balloon stays empty; 🔢 Renumber in the table editor numbers the visible parts consecutively (Hiding rows). Which numbering applies is decided by the governing parts list. Blocks with the same article number share the number.
Balloons never ask about hidden parts; they follow the answer that applies to the governing parts list. Insertions on hidden layers count like hidden blocks. Renaming a block or changing its BOM data affects the numbers at once.
If the balloon on an instance shows ?, the program reports Note: block is not an item of its own (dissolved assembly?) — balloon shows “?”. With a dissolved assembly the click reaches through it to the single part below; the topmost instance is bound nevertheless. In the paper space balloons can be pinned to model blocks through viewports — except while the block editor is open.
Governing parts list
If the drawing contains one or more live parts lists (inserted with Insert into drawing in the parts list window), the balloons follow exactly one of them — the governing one. From it they take the numbering (quantity or structured BOM), the answer about hidden parts, the numbers overwritten in its No. column and its hidden rows (balloon empty).
- The live parts list inserted last becomes governing automatically — also when it comes with Ctrl + V from another drawing, with a standard part or from an add-on.
- You choose another one with a right-click on the table → Position balloons follow this parts list (1); the governing one carries a ✓ there.
- For a selected parts list the Properties panel shows ✓ Position balloons follow this parts list or Position balloons follow another parts list (right-click to choose) — for display only.
- If the governing one is deleted, the one chosen last (by right-click or inserting) takes over, otherwise the most recently inserted one still present. A hidden parts list stays governing.
- Without a live parts list the balloons count as before: by the parts list table inserted last (default: quantity items) and the last answer in the Parts list window.

Keys
| Key | Effect |
|---|---|
| Esc | end the tool; a hanging balloon is discarded |
| double-click on a free balloon | edit Balloon text |
| Del | delete the selected balloon |
No shortcut. Balloons lie on the system layer Dimensions and disappear with its eye.
Related commands
- Show parts list — the items the balloon shows
- Leader — arrow with free text without circle
- Dimension Dimension — settings for text and arrows
