Dialogs Weld

The command Weld asks for the tolerance before the operation and reports the result afterwards. Rectangle as separate lines, slot and curved slot weld their corners already while drawing — without these dialogs (Shapes).

Weld — tolerance

(1) tolerance in mm, (2) «Weld», (3) check box for the additional “Coincident” constraint
(1) tolerance in mm, (2) Weld, (3) check box for the additional “Coincident” constraint

Tolerance

Millimetres greater than 0 (default 0.01; afterwards the last confirmed value). Endpoints of the selected elements lying closer together than the tolerance are joined into a shared point. Small values join only what practically lies together already; larger ones close gaps — with the warning in the dialog: Large tolerances can shift individual elements geometrically — endpoints farther apart get pulled together. Zero or an empty field is rejected (Please enter a tolerance greater than 0).

Also add a «coincident» constraint

Check box (factory off, the choice is remembered): after welding, the program adds coincident constraints for each weld in the selection — every further member to the first, so that all points coincide. This also applies to welds in the selection that existed before; duplicate constraints are not created.

Weld, Cancel

Weld (also Enter) performs the operation with the entered tolerance and remembers it. Cancel or Esc closes without a change. Zero or an empty field is refused, an unreadable number with a red message.

Weld completed

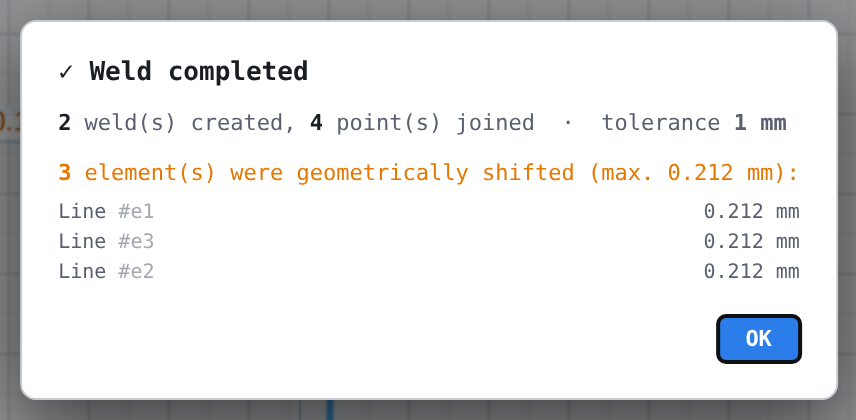

The result dialog: summary, list of the shifted elements with amount, «OK»
The result dialog: summary, list of the shifted elements with amount, OK

Summary

n weld(s) created, m point(s) joined · tolerance t mm — a weld is a joint where two or more endpoints come together. With the coincident check box the line n «coincident» constraint(s) added follows. Welds belong to the space they are created in (model or sheet).

Shifted elements

If endpoints had to be moved to come together, the orange line names k element(s) were shifted geometrically (max. x mm) and the table below lists each element with type, shortened identifier and amount of the shift; amounts from the tolerance upwards are orange. With more than 200 entries … n more follows. If all points already lay together, it reads No element was shifted — all joined endpoints were already together.

OK

Closes the dialog; the status line keeps the short version. Ctrl + Z right afterwards undoes the welding in one step — joints, shifted endpoints and the constraints added with the check box. To release individual joints, use Unweld.
