Move and Copy

Purpose

Move shifts the selected elements by a vector that you give with two points or as dX/dY. Copy does the same, but leaves the originals in place and may place several times — for two, three copies in a row. Both take along dimensions, hatches and welds of the selection (what travels along).

For copies into another window or another drawing, with rotation or mirroring when placing, use the clipboard; regular copies are created by the array.

Access

  • Ribbon: group Modify, triangle on the button Mirror — Move (3), Copy (4).
  • Classic toolbar: drop-down triangle of the family Mirror (2).
  • Keys: Ctrl + M Move.
  • Command search : Move, Copy.
  • Without a selection, post-selection begins.
Family «Mirror» with (3) Move, (4) Copy
Family Mirror with (3) Move, (4) Copy

Move

Move Select elements, start the tool, then:

  1. Click the base point (1) — with snap, e.g. a corner. The floating field dX/dY appears, the status line reports Click the target point — or enter dX/dY + Enter.
  2. Click the target point (2) — the preview follows the pointer; or type dX and dY and accept with Enter.

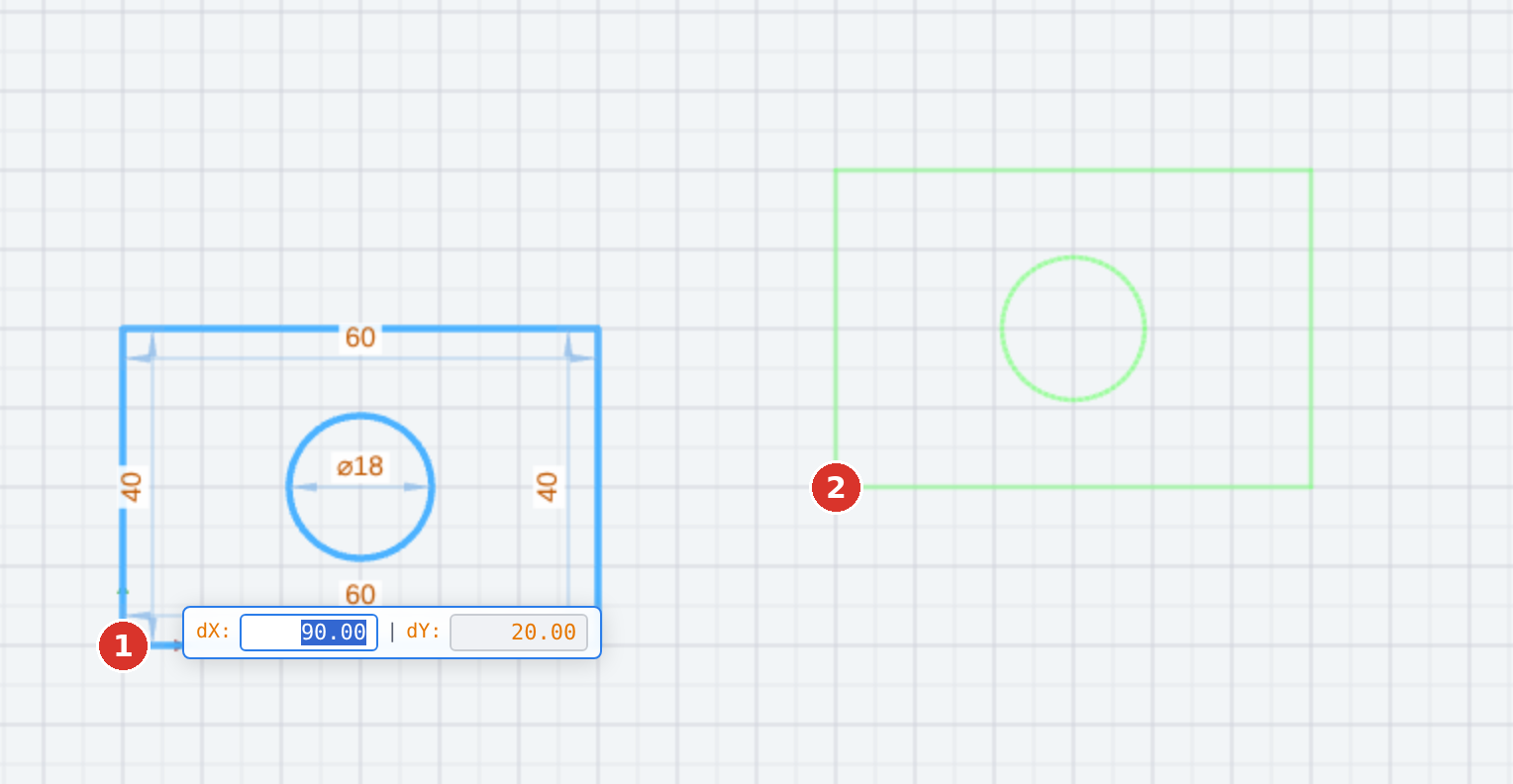

(1) base point, (2) pointer with preview — the field shows dX and dY
(1) base point, (2) pointer with preview — the field shows dX and dY

The status line confirms Moved by (dx, dy). A target point equal to the base point is rejected (No displacement — click again). After moving, the tool is finished.

Copy

Copy Same procedure, but the base point stays and every further click places a copy:

  1. Click the base point (1) — Click the target point — multiple times possible · ESC = end.
  2. Click the target point (2) — the first copy is created, the status line counts: 3 copied (1x) · another target point or ESC.
  3. Click further target points (3) or type dX/dY and accept with Enter; Esc finishes.

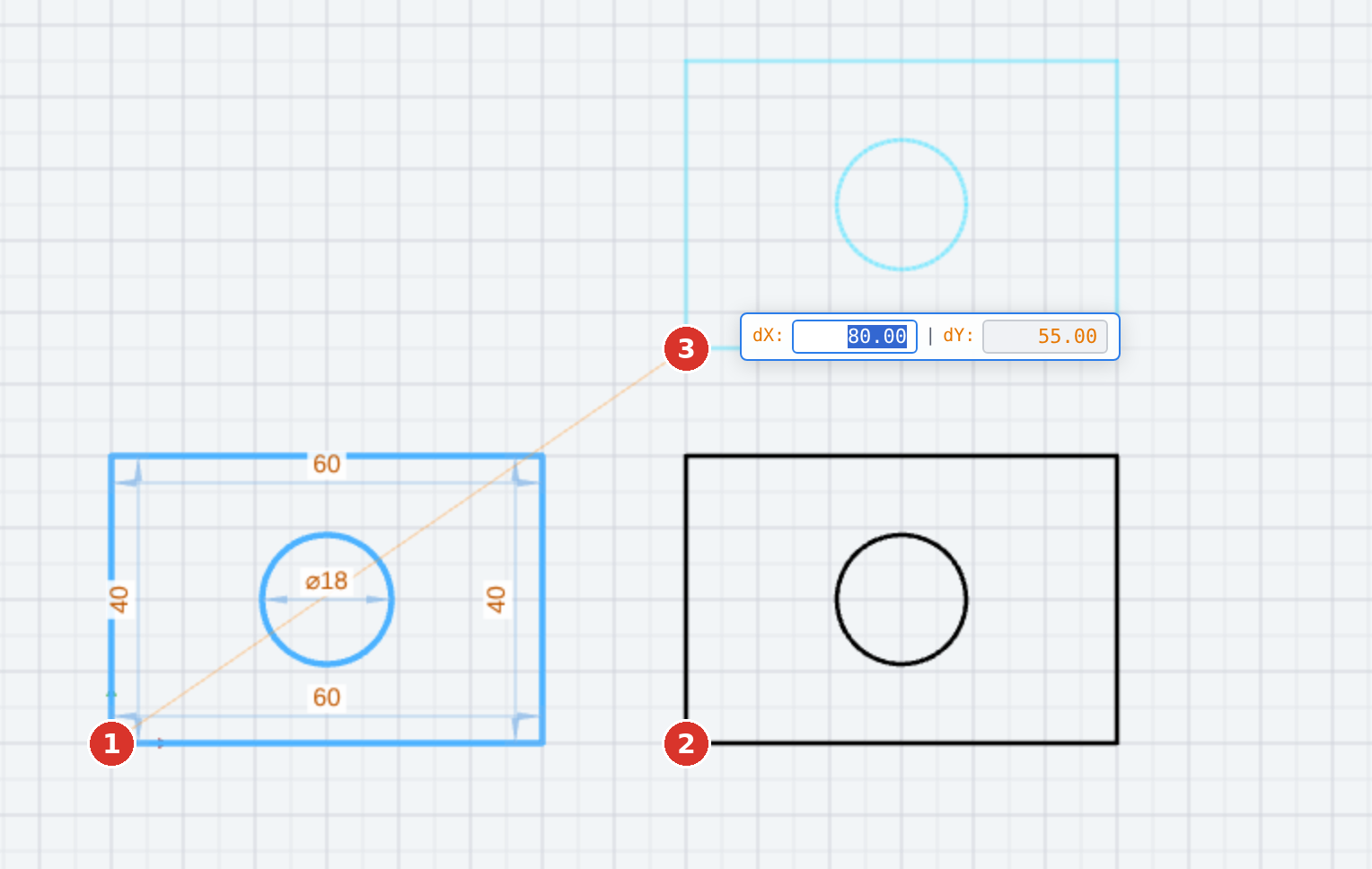

(1) base point, (2) first copy placed, (3) pointer with the preview of the next copy
(1) base point, (2) first copy placed, (3) pointer with the preview of the next copy

Each copy is a separate step for Undo. The suffix of the message names what was copied along: , 1 hatch(es), , 2 weld(s), constraints.

Options and relations

  • The object snap applies to base and target point; ORTHO and TRACK help with axis-parallel moves.
  • Fixed elements (constraint Fixed) are not moved.
  • Free dimensions (without reference to an element) travel along when selected; both tools also accept a selection consisting only of dimensions.
  • Small moves without a base point are done with the gizmo: drag a grip or enter ΔX/ΔY in the gizmo window.
  • Copying via the clipboard (Ctrl + C, Ctrl + V) allows rotating, mirroring and scaling when placing and also works between browser windows.
