“Viewport” menu
Overview
On a sheet, the right-click menu of the drawing area gains two entries at the very top and — when the pointer is over a viewport — the section “VIEWPORT”. All other entries (Cut, Copy, Isolate, Group, stacking …) stay unchanged.

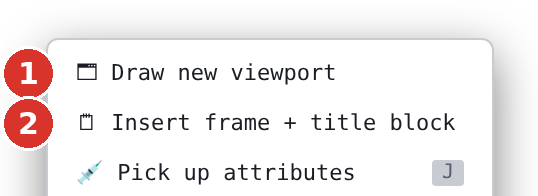

On the empty sheet
- 🗔 Draw new viewport — a two-click operation (drawing a viewport).
- 🗒 Insert frame + title block — Frame and title block.
Both appear in paper space only, and only when nothing is being drawn.
Over a viewport
| Entry | Effect |
|---|---|
| (1) 🔎 Edit (view + scale) | activate the viewport, shortcut “Double-click” (edit) |
| (2) ⤢ Fit to contents | the whole model into the viewport (fit) |
| (3) ⚙ Viewport settings… | “Viewport” dialog |
| (4) ✥ Move | select the viewport and drag it (move) |
| (5) ⤡ Resize (corner grips) | show the corner grips (resize) |
| (6) 🔒 Lock / 🔓 Unlock | lock |
| (7) ⧉ Copy | copy offset by 10 mm (copy) |
| (8) 🗑 Delete | the viewport with its through-hatches and through-dimensions (delete) |
The section appears in the “Select” tool only. If a hatch or a dimension lies under the pointer as well, their entries appear alongside — you choose instead of the program guessing.
Locked viewport
On a locked viewport, “Edit”, “Move” and “Resize” are missing, and “Lock” becomes “🔓 Unlock” (1). “Fit to contents”, “Viewport settings…”, “Copy” and “Delete” remain.
Note
As of v3.0.23, “Fit to contents” works on a locked viewport too and changes its view and scale.
