Text (dialog)

Overview

The dialog appears with the Text tool and when double-clicking an existing text. It can be moved by its title bar; the position dragged last is kept.

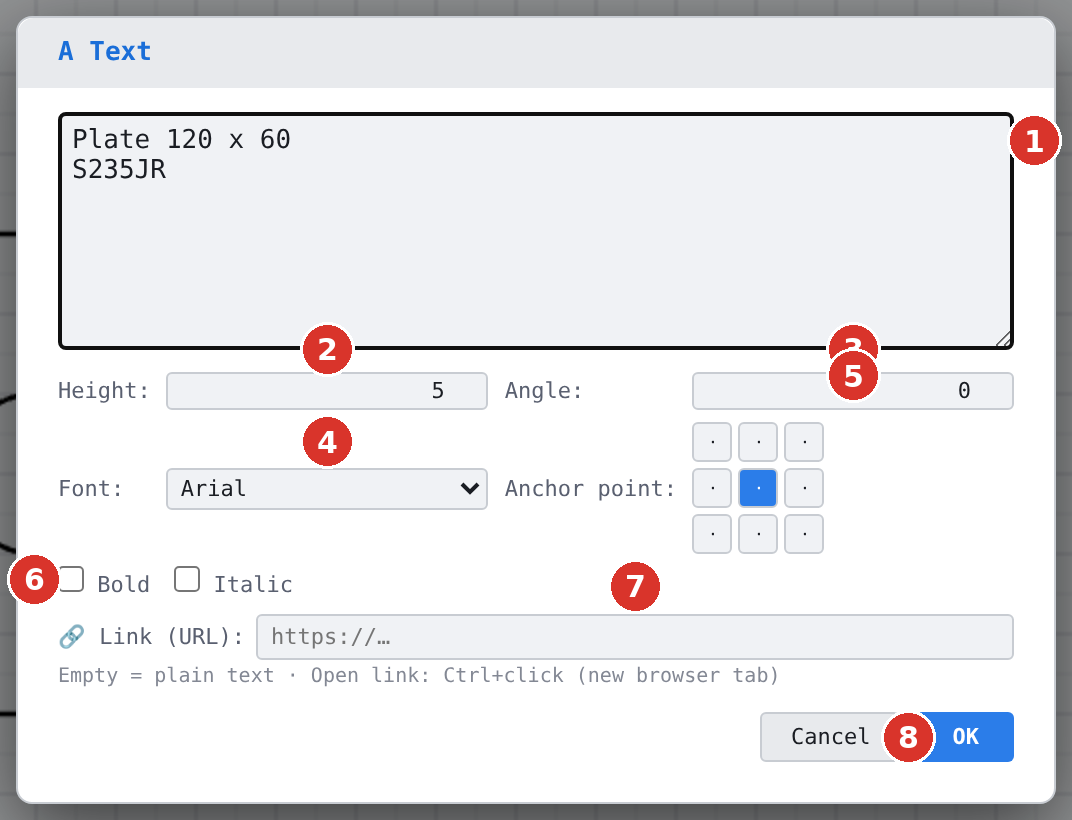

Dialog “A Text”: (1) text field, (2) height, (3) angle, (4) font, (5) anchor point grid, (6) bold and italic, (7) link, (8) OK
Dialog “A Text”: (1) text field, (2) height, (3) angle, (4) font, (5) anchor point grid, (6) bold and italic, (7) link, (8) OK

The fields

FieldMeaning
Text fieldthe text; Enter creates a line break, Esc closes the dialog without a change
Heightcharacter height in drawing units (factory: 5)
Anglerotation of the text in degrees
FontArial, Helvetica, Times New Roman, Courier New, Georgia, Verdana
Anchor pointa grid of nine fields: which part of the text the insertion point sits at (factory: centre)
Bold / Italictype style
Link (URL)makes the text clickable; empty = ordinary text
“Cancel” / “OK”discard or accept

If “Height” or “Angle” holds an invalid number (letters, “1e999”, more than 1,000,000,000,000), “OK” refuses with a red message; the dialog stays open.

Below the link field stands the note “Empty = plain text · Open link: Ctrl+click (new browser tab)”.

The anchor point grid

The grid marks the chosen field in blue. When editing an existing text, the text stays where it looks if the anchor point is changed — only the anchor jumps to the new place.

After “OK”

With a new text it hangs on the pointer and is placed with every click (Esc or a right-click ends the series). When editing, “OK” takes effect at once; the status bar reports “Text changed”.
