Program start

LiberoDraft runs entirely in the browser. Nothing is installed; the program address is all you need. This page describes what happens at the first and at every further start.

Opening in the browser

Open the program address in a current browser (Chrome, Edge, Firefox or Safari). The program window fills the browser tab; the drawing area adapts to the window size. The browser tab shows the file name of the drawing and the program version, for example Untitled — LiberoDraft v4.0.55. A dot ● in front of it means: unsaved changes.

Tip

Create a bookmark or install the page as a browser app (Add to home screen or Install app). LiberoDraft then starts like a normal program in its own window.

Info box at the first start

At the first start — and at every further one as long as the disclaimer has not been confirmed — the info box opens. It shows version and build date, the start counter, the publisher details, a separate section about standard parts and the general disclaimer.

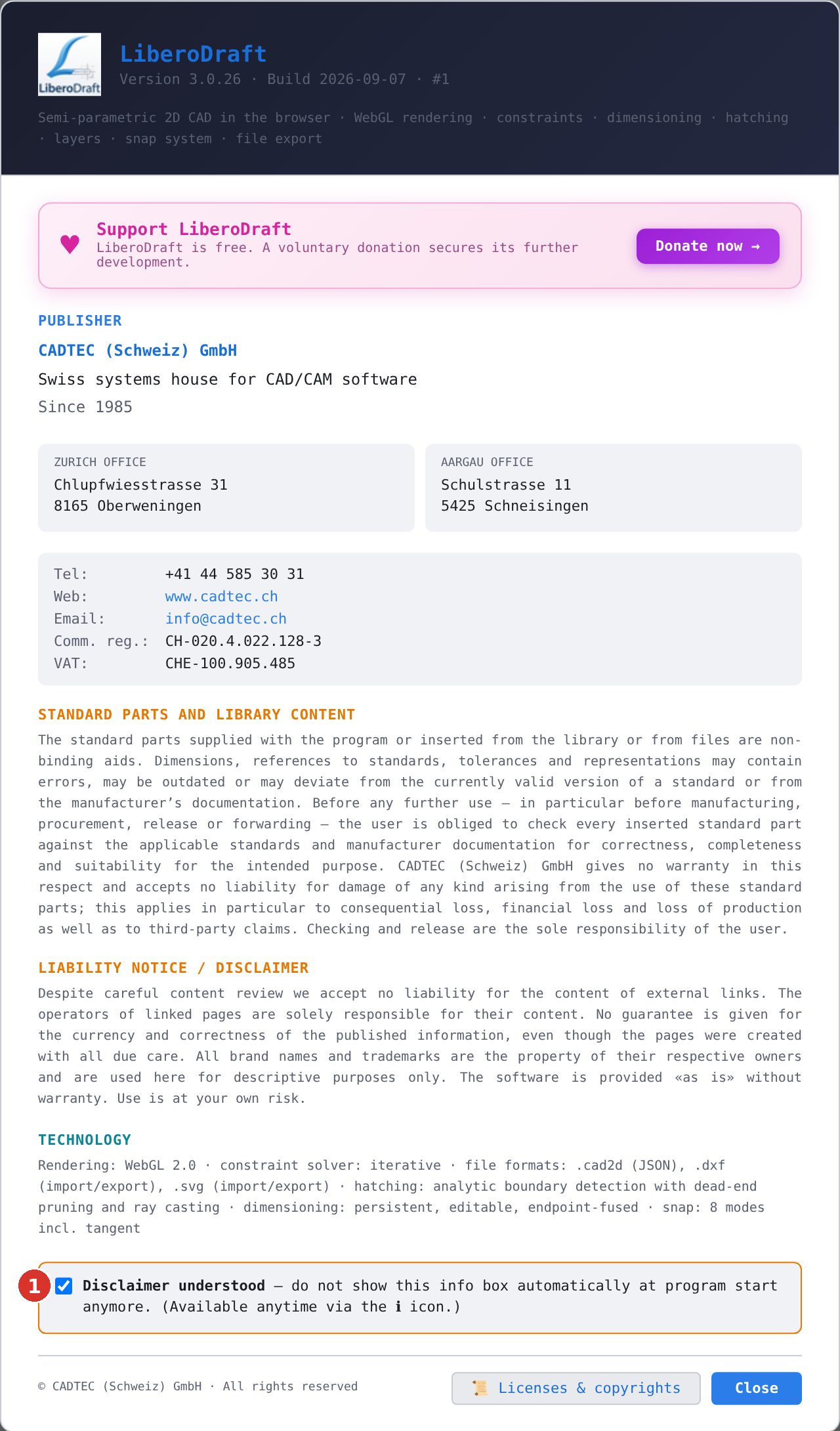

The info box; (1) the checkbox «Disclaimer understood»
The info box; (1) the checkbox Disclaimer understood

With the checkbox (1) Disclaimer understood — do not show this info box automatically at program start anymore you confirm the notice. The status bar reports Disclaimer confirmed — the info box is no longer shown automatically at startup. The confirmation is stored in the browser on this computer; on another computer or after clearing the browser data the box appears again. You can reopen the info box at any time via the gear → row Info / imprint or the command Info / imprint; the checkbox can be cleared there as well.

While the info box — or above it the window Open-source licenses & sources (button Licenses & copyrights) — is open, no key reaches the drawing: Tab stays inside the window, Esc first closes the licenses, then the info box. If an add-on sends a part during this time, it waits and only hangs on the mouse after the info box has been closed.

Registration

On www.liberodraft.com the operator can require a registration. If it is switched on and you have no valid start link, the window LiberoDraft appears above the drawing (and above the info box) at every start, with the sentence LiberoDraft is free. Register and you will receive a start link by e-mail. If registration is switched off, none of this appears and everything is freely available.

  • Fields: Name, E-mail *, Company and Country. Only the e-mail address is required; the other fields carry the placeholder Optional. Below them are the note * Required. We use your details only for the start link and for news about LiberoDraft; they are not passed on. and the box ♥ Support LiberoDraft with Donate now →.
  • OK sends the details. The window reports Your 30-day start link is on its way to … and Until then you can carry on right away — until midnight today. Standard parts and add-ons are unlocked by the start link from the mail.; Continue closes it.
  • Skip or Esc closes the window without registering — you draw as usual, only standard parts and add-ons are locked. Depending on the operator's setting this button is missing; then Esc does not close the window either, and registration is required.

With the start link from the mail, LiberoDraft starts without this window; the browser remembers the start link until it expires. The info box then shows Licence valid until … below the version. After clearing the browser data, simply open the link from the mail again. If the start link has expired, the window appears again with the red line Your licence expired on … Register again for another 30 days.; an incomplete or altered link gives The start link is not valid. (registration messages).

Standard parts and add-ons can only be used while the start link is still valid for more than 20 days — a new 30-day link therefore during the first 10 days, a key from a donation correspondingly longer. Otherwise the folders in the panel Standard parts and the menu Add-ons stay visible; a click on a standard part, on ✎ on a tile, on an add-on or on Import DWG…, Export DWG… or Import STEP… in the file menu shows the window 🔒 Not unlocked with the sentence Standard parts and add-ons only available with registration., the buttons Register and Close and the donation link. Register opens the registration.

The window at start-up: the e-mail address is required, OK sends the start link, Skip closes without registering
The window at start-up: the e-mail address is required, OK sends the start link, Skip closes without registering
The window 🔒 Not unlocked after a click on a standard part or add-on
The window 🔒 Not unlocked after a click on a standard part or add-on

Default drawing

As long as the disclaimer has not been confirmed, LiberoDraft loads the file Default-Drawing.cad2d from the program folder at start and shows it as an example. The file name in the status bar then reads Default-Drawing. If the file is missing, the program starts silently with an empty drawing. The default drawing only arrives if nothing has happened since the start; if you have already drawn, opened a file or operated something on a slow connection, it stays away and does not replace your work. It is not linked to any file — Ctrl + S asks for a name. After the confirmation every start begins with an empty drawing Untitled.

Language

At the very first start LiberoDraft adopts the browser language: if it is German, the interface appears in German, in all other cases in English. As soon as you choose the language in the Settings dialog, your choice applies at every further start. Procedure: Change the language; details: Setup and settings.

The initial state

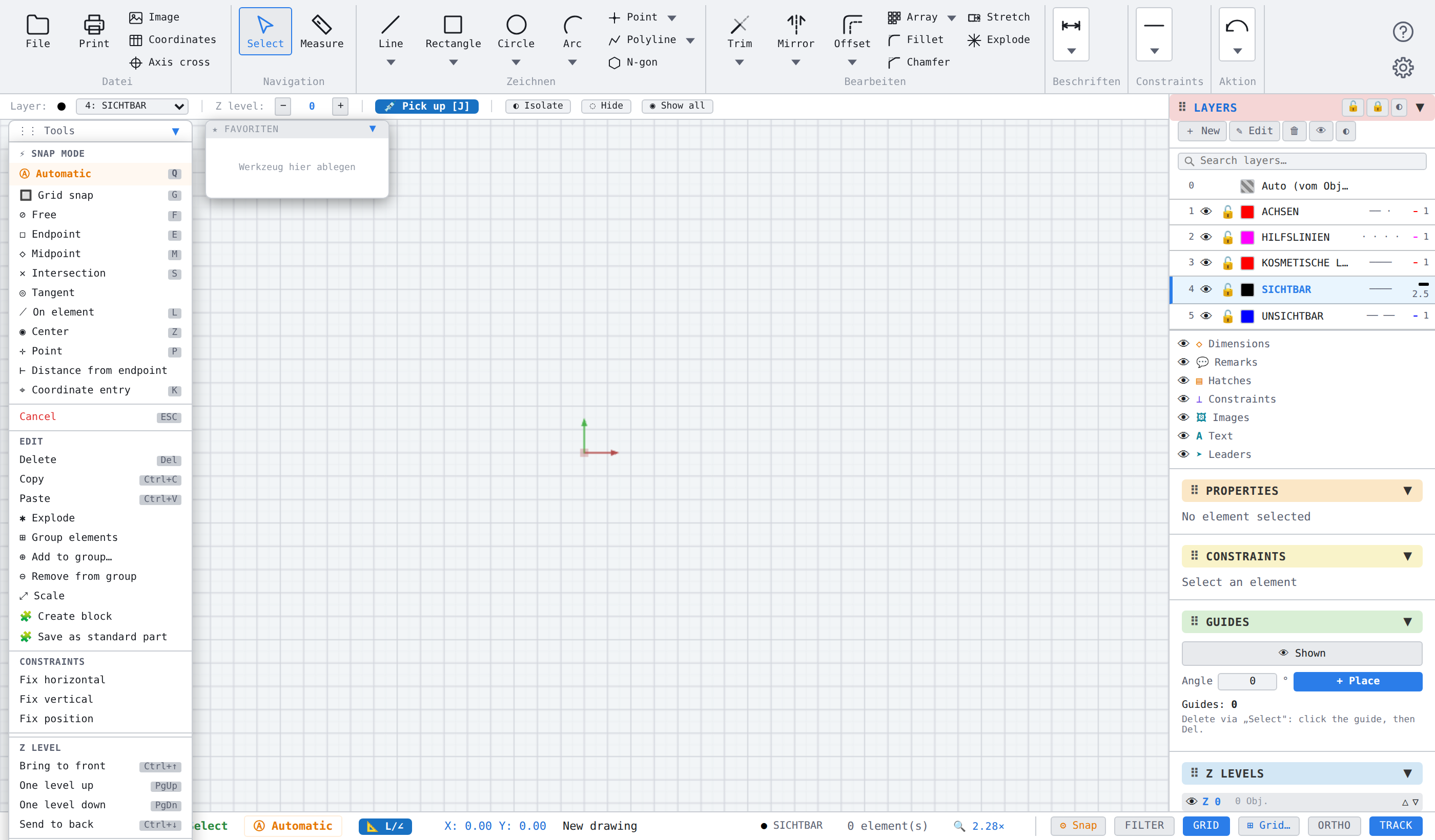

Empty drawing after the start: origin centred, tool «Select», snap «Automatic»
Empty drawing after the start: origin centred, tool Select, snap Automatic
  • The view shows the origin (red-green axis cross) centred with a margin whose size is set in the Settings dialog (Margin from origin).
  • The tool Select is active, the snap mode is Automatic (Snap mode).
  • The status bar reports Ready — choose a tool or use a keyboard shortcut, followed by a version note and the start counter.
  • All saved settings (grid, snap automatic, ribbon or classic toolbar, language, favourites, panel order) are already active again; they live in the browser of this computer. What stays on the computer and what travels with the drawing: Storage locations.
Note

The version note in the start message is hard-coded in the program and does not match the program version; the valid version is shown in the browser tab, in the info box and in the footer of this help.

Printing this help

Every page of this help carries the button “🖨 Print” at the top right. It offers This page, This section and Whole help; through Choose … single sections and pages can be ticked, optionally with a title page and a table of contents.

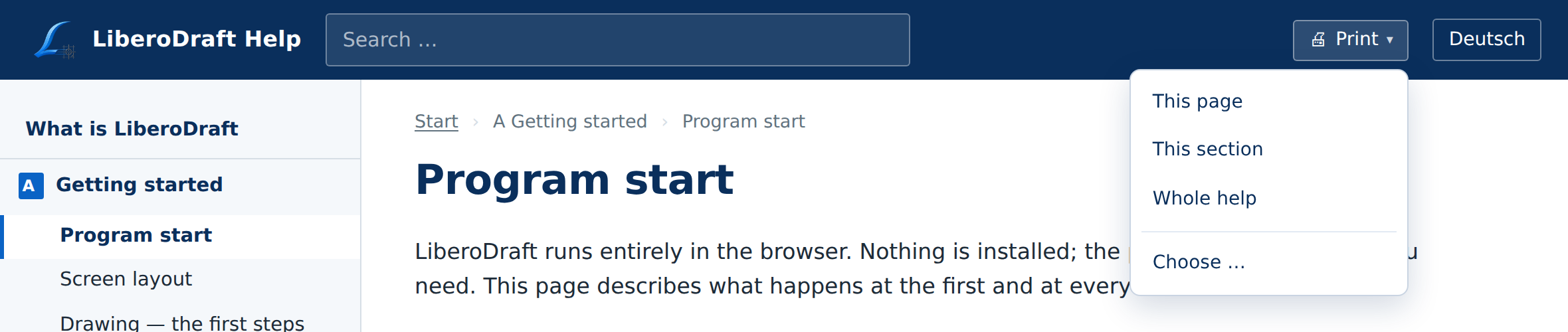

The “Print” button in the header of the help with the list opened
The “Print” button in the header of the help with the list opened
Note

Printing several pages at once only works when the help is served from a web server (as it is on www.liberodraft.com). Opened from the file system, only This page remains. Not to be confused with printing the drawing.

Closing the program

LiberoDraft is closed by closing the browser tab. If changes are unsaved, the browser asks before closing. Save beforehand with Ctrl + S (Save); LiberoDraft does not keep a backup copy in the background.
