How do I change a hatch afterwards?

The defaults in the dialog affect new hatches only. Existing hatches are changed via their selection:

  1. Choose Select and click inside the hatched area (not inside an island). The hatch is tinted, its boundary highlighted. A double-click into the area selects the hatch and brings the Properties section of the panel into view. If the hatch lies on a locked layer or in a locked group, a note with a padlock appears at the click point, through which you can remove the lock.
  2. Change the values in the Properties panel on the right — pattern, angle, spacing, color, opacity, line width, line type, origin, layer. Every change applies immediately and only to the selected hatches. An invalid value is rejected with a red message. If a small spacing would result in more than 200 000 lines, the program shows and prints the hatch as a fill in its colour and reports in red Hatch too dense — shown as a fill, increase the spacing; the spacing you set is kept.
  3. Change the Z level with the arrow buttons in the panel or with PgUp and PgDn.

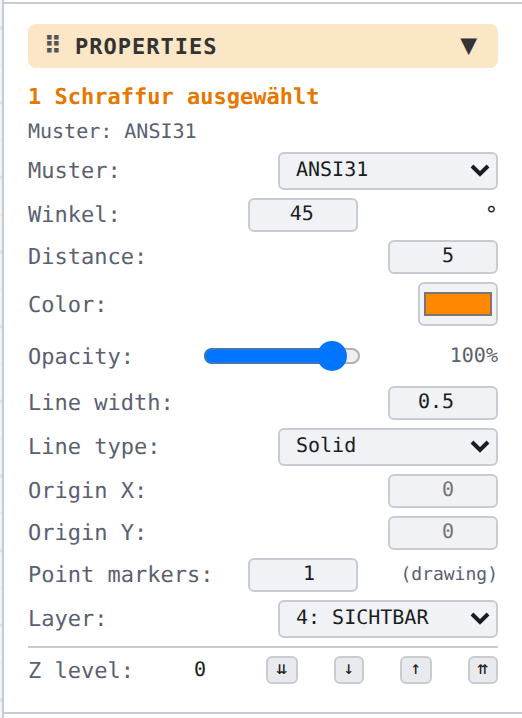

«Properties» panel of a selected hatch
Properties panel of a selected hatch

Move a hatch to another area

Drag the black seed-point square of the selected hatch into the new area. On release the area is searched there. If there is no closed area, the point jumps back.

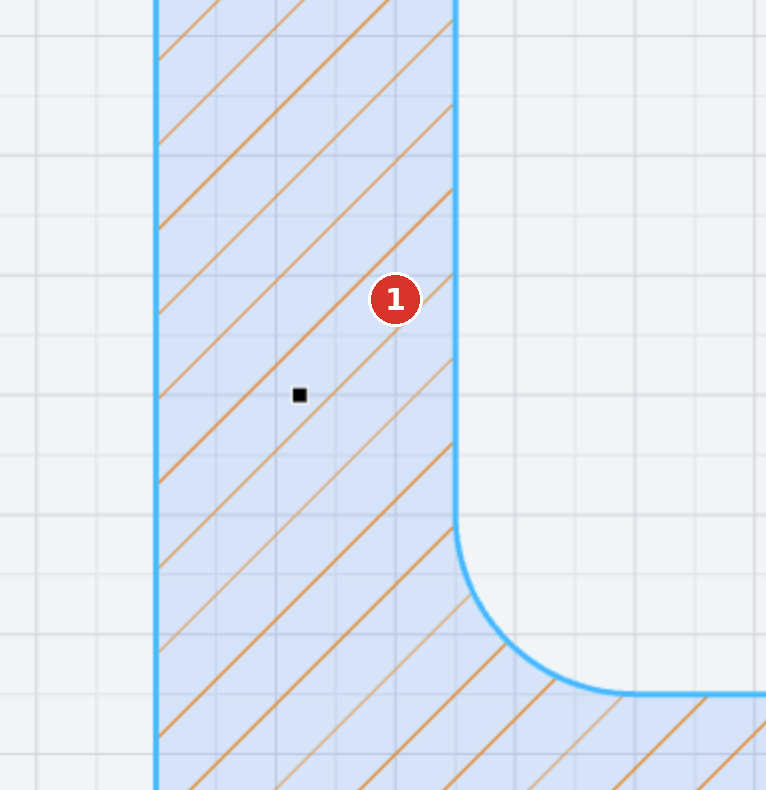

The seed-point square (1)
The seed-point square (1)

Adopt defaults from a hatch

Switch on Pick up [J] in the header bar and click into a hatch: pattern, layer and opacity become the defaults for the next hatches.

Note

Manual hatches have no seed-point square; their properties are also changed in the panel, their outline only by re-creating them.
