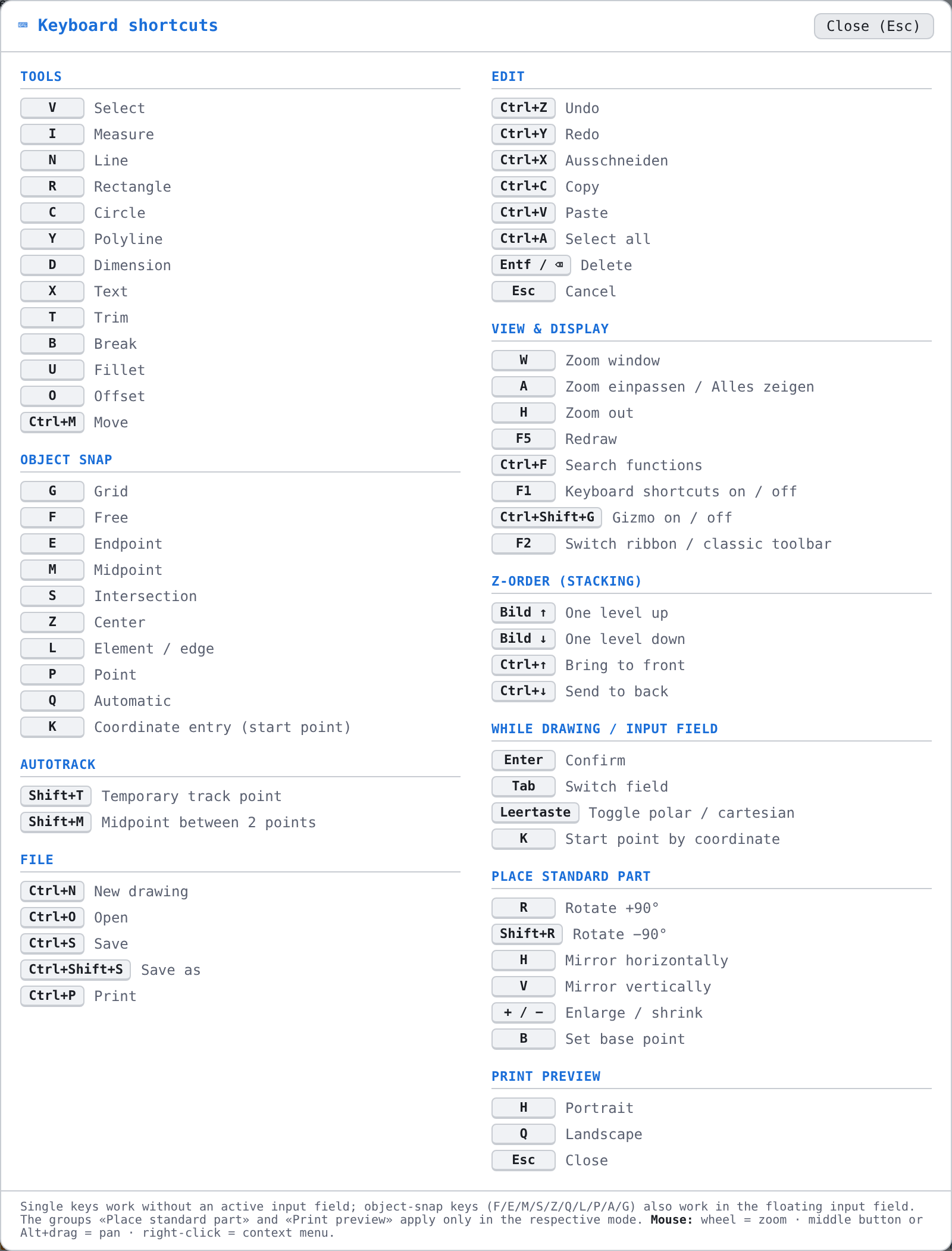

Keyboard shortcuts window
The window opens with F1, via the file menu → Keyboard shortcuts or the command Keyboard shortcuts. It shows the program's keys in columns by topic; F1 acts as a toggle and closes it again.
Groups
| Group | Content |
|---|---|
| Tools | V Select, I Measure, N Line, R Rectangle, C Circle, Y Polyline, D Dimension, X Text, T Trim, B Break, U Fillet, O Offset, Ctrl + M Move |
| Object snap | G Grid, F Free, E Endpoint, M Midpoint, S Intersection, Z Center, L Element / edge, P Point, Q Automatic, K Coordinate entry (start point) |
| AutoTrack | Shift + T temporary track point, Shift + M midpoint between 2 points |
| File | Ctrl + N, Ctrl + O, Ctrl + S, Ctrl + Shift + S, Ctrl + P |
| Edit | Ctrl + Z, Ctrl + Y, Ctrl + X, Ctrl + C, Ctrl + V, Ctrl + A, Del / ⌫, Esc |
| View & display | W window zoom, A zoom to fit, H zoom out, F5 redraw, Ctrl + F find function, F1 keyboard shortcuts, Ctrl + Shift + G gizmo, F2 ribbon / classic |
| Z-order (stacking) | PgUp, PgDn, Ctrl + ↑, Ctrl + ↓ |
| While drawing / input field | Enter confirm, Tab next field, Space polar / cartesian, K start point by coordinate |
| Place standard part | R / Shift + R rotate, H / V mirror, + / − size, B base point |
| Print preview | H portrait, Q landscape, Esc close |
The footer explains: single keys work without an active input field; object snap keys also in the floating input field; the groups Place standard part and Print preview apply only in the respective mode. Mouse: wheel = zoom, middle button or Alt + drag = pan, right-click = context menu.
Close (Esc)
The button Close (Esc), the key Esc, F1 or a click on the dimmed background closes the window.
Note
The overview of this help under Keyboard shortcuts supplements the program list with the keys of the individual topics.
