Fillet and Chamfer
Purpose
Both tools work on the corner between two elements:
- Fillet inserts a tangent arc with radius R between two lines, circles or arcs and shortens or extends the elements to the tangent points.
- Chamfer replaces the corner of two lines with a bevel — with two distances D1/D2 or with angle and distance.
The elements need not touch: both tools work with the extensions.
Access
- Ribbon: group Modify, buttons Fillet (5) and Chamfer (6). If the window is narrow, the group is collapsed — the arrow below the group icon opens the list with both tools.
- Classic toolbar: group Edit, buttons Fillet (6) and Chamfer (7).
- Key: U Fillet.
- Command search : Fillet, Chamfer.

Fillet
Fillet Three steps:
- Click the first element (1) — line, circle or arc; status line Click the 2nd element (line/circle/arc)....
- Click the second element (2). The field R: appears, the status line reports Move the mouse → radius/sector · click = place · R+Enter = fixed radius.

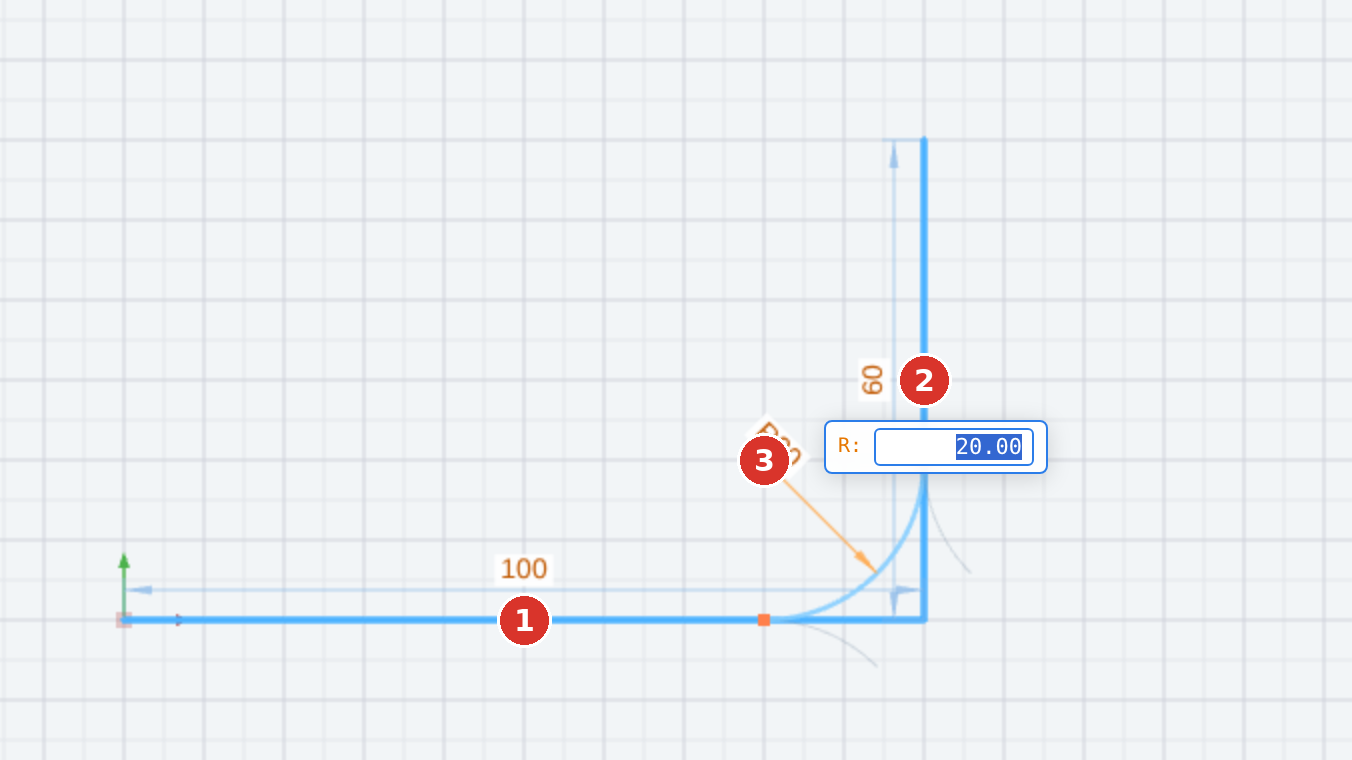

- Set radius and position (3): the mouse determines the radius (distance to the corner) and the sector — with crossing elements there are four possible corners, the one nearest to the pointer wins. A click places the arc as the preview shows it; or you type R and press Enter — then the fixed radius applies in the sector where the pointer is.

The arc is created on the active layer, the two elements are shortened or extended to the tangent points. If no arc fits — e.g. parallel lines or a radius larger than the circle — the program reports No tangent arc possible. A radius of 0 cancels.
Chamfer
Chamfer Also three steps, here with lines only:
- Click the first line (1) — on the side that should stay; status line Chamfer: click the 2nd line (on the side to keep).

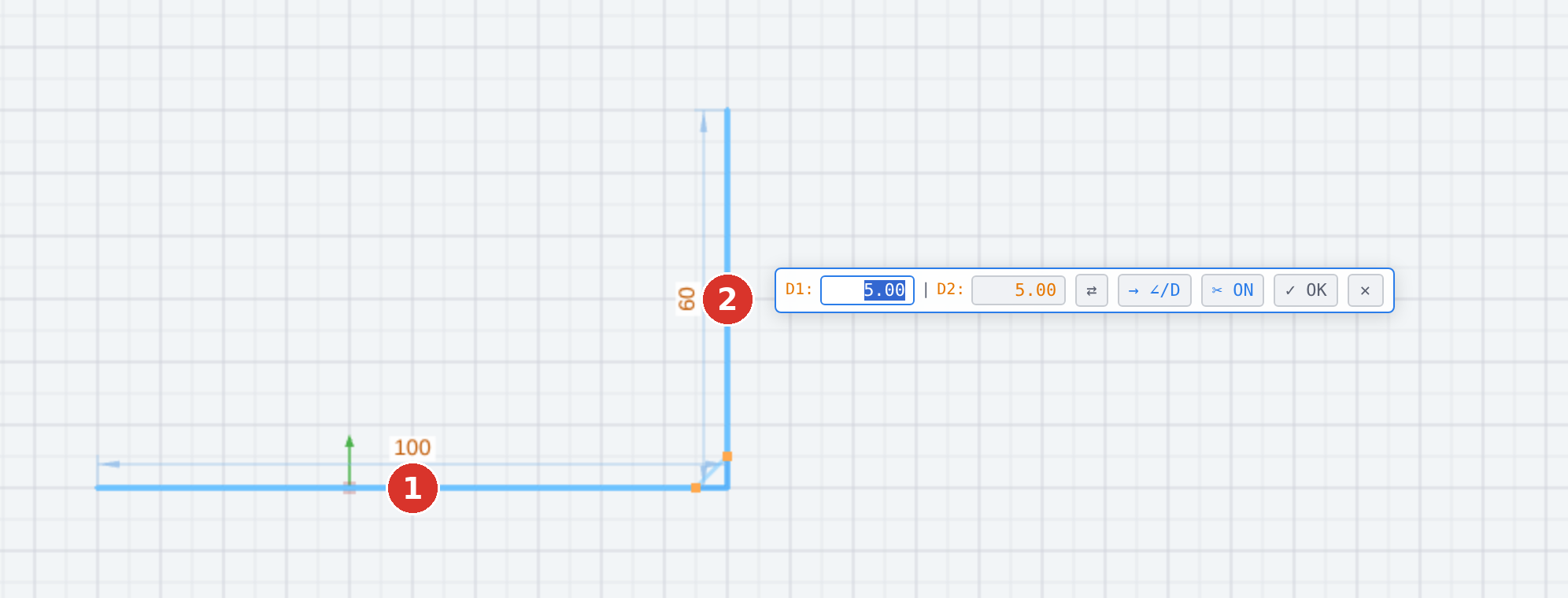

- Click the second line (2), also on the side that stays. The chamfer field appears with the last used values (default 5/5); the preview shows the bevel. Status line: Chamfer: enter the values + Enter, or click to confirm.
- Enter the values and accept with Enter, ✓ OK or a click in the drawing area.

The chamfer field

- D1, D2 — the distances of the chamfer from the corner along the first and the second line.
- ⇄ — swaps D1 and D2.
- → ∠/D — switches to the mode angle and distance: ∠ is the angle of the chamfer to the first line, D the distance along the first line; the button back is then labelled → D1/D2.
- ✂ ON / OFF — trimming: with ON the lines are shortened (or extended) to the chamfer, with OFF they stay unchanged and the bevel is added.
- ✓ OK accepts, × cancels.
The values and the mode are remembered for the next call.
What is attached to the corner
Chamfering does not take away what is attached to the corner:
- Corner connections — a weld or the constraint Coincident at the corner is passed on to the chamfer line, in the same kind: first line with the chamfer start (1), chamfer end with the second line (2). Coincident: the point lies on the element becomes first line with the chamfer start, and the chamfer end lies on the second line.
- Point dimensions at the corner stay at the old position, with the same value but without a reference — also through a viewport.
- Angle dimensions between the two lines keep their sector and their value.
- A driving dimension whose value changes through the shortening becomes driven (message in the status bar); the line stays in place.
- Bound annotations (note, balloon, leader) stay where they are.
- The chamfer line joins the common (innermost) group of both lines; if they have none in common, it joins no group.
- With ✂ OFF only the chamfer line is inserted; the lines and their connections stay as they are.

Third line at the corner. If another line is attached to a bound corner and its direction meets the chamfer line, it is shortened up to the chamfer line (the direction stays) and is held there (Coincident: the point lies on the element; at a chamfer end in the kind of the corner). It stays at the old corner if it points outwards, is fixed, locked or invisible, if a constraint binds more than its direction (e.g. Equal), or if something else is attached to its end.
Chamfering is refused with a red message and without an undo step if a line with Fixed would have to change (Element is fixed — chamfer refused) or if a fixed element or one on a locked layer is attached to a point that moves (Connected element is fixed or locked — chamfer refused). A line on a locked layer or in a locked group cannot be picked; the click shows the hint with the padlock.
Options and relations
- Both tools stay active for the next corner; Esc ends them and removes the highlighting.
- Arc and bevel are created on the active layer.
- For a tangent arc without shortening the elements use Tangent arc.
- Fillets on circles and arcs give transitions like on slots; where two circles do not intersect, the radius must be large enough for an arc to touch both.
Related commands
- Trim or extend one / two elements — sharp corner without arc
- Tangent arcs
