Trim, Break, Split

Purpose

Three tools of the family Trim shorten or divide existing elements — without drawing new geometry:

  • Trim shortens an element at its nearest intersection with other elements. The piece you click stays; the piece beyond the intersection is removed.
  • Break removes the clicked piece between two intersections (or from the intersection to the end). The rest stays as one or two elements.
  • Split divides an element at a freely chosen position into two pieces — no intersections needed.

All three work on lines, circles, arcs, splines, ellipses and elliptical arcs; Split additionally on polylines. Rectangles cannot be divided as a whole — explode them first.

Access

  • Ribbon: group Modify, split button Trim (1); the triangle opens Break (2) and Split (3). If the window is narrow, the group is collapsed — the arrow below the group icon opens the list with all three tools.
  • Classic toolbar: group Edit, family with drop-down triangle (1).
  • Keys: T Trim, B Break.
  • Command search : Trim, Break, Split.
Family «Trim» with (1) Trim, (2) Break, (3) Split
Family Trim with (1) Trim, (2) Break, (3) Split

Trim

Trim One click is enough. The tooltip at the pointer says Trim: click the side to keep: you click the element where it should remain. The program looks for the intersection nearest to the click and shortens the element there — the side with the click stays, the other one disappears.

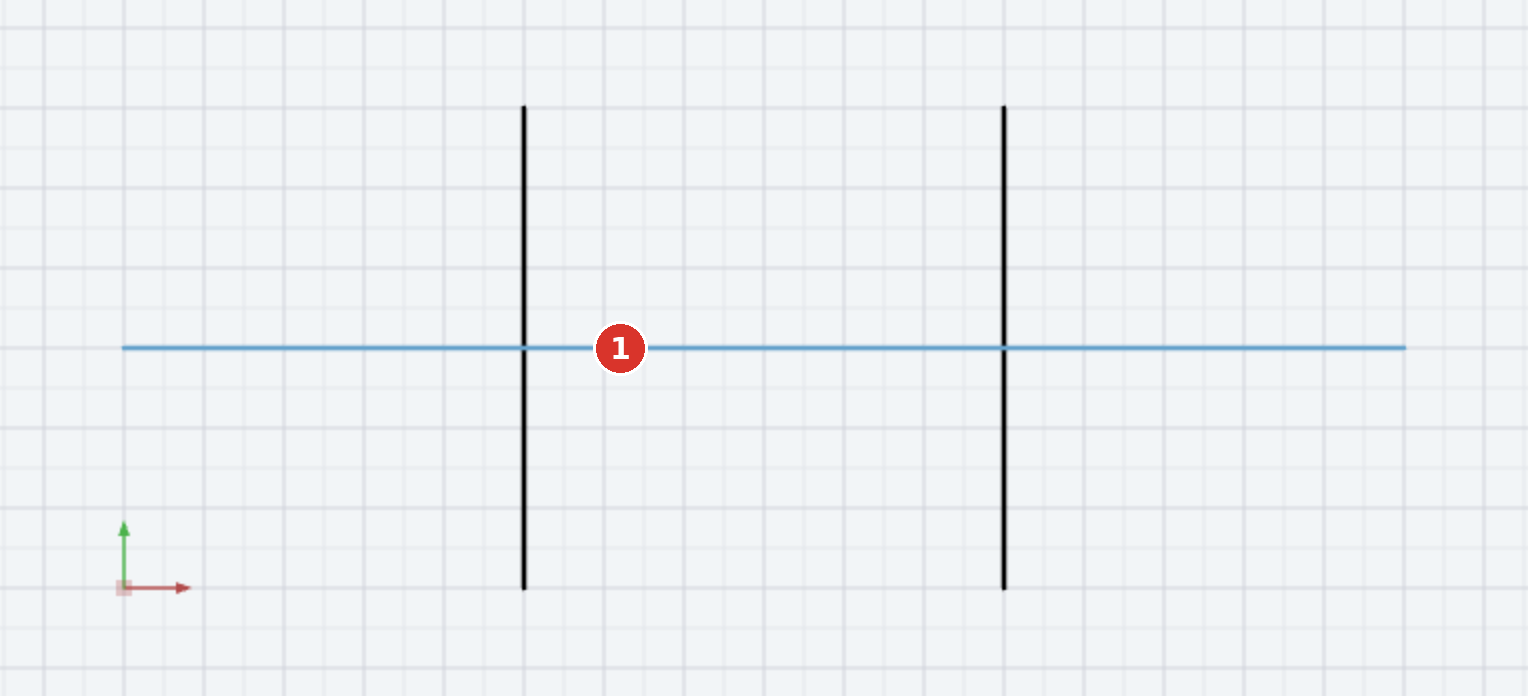

Before: the horizontal line is clicked to the right of the left intersection (1)
Before: the horizontal line is clicked to the right of the left intersection (1)

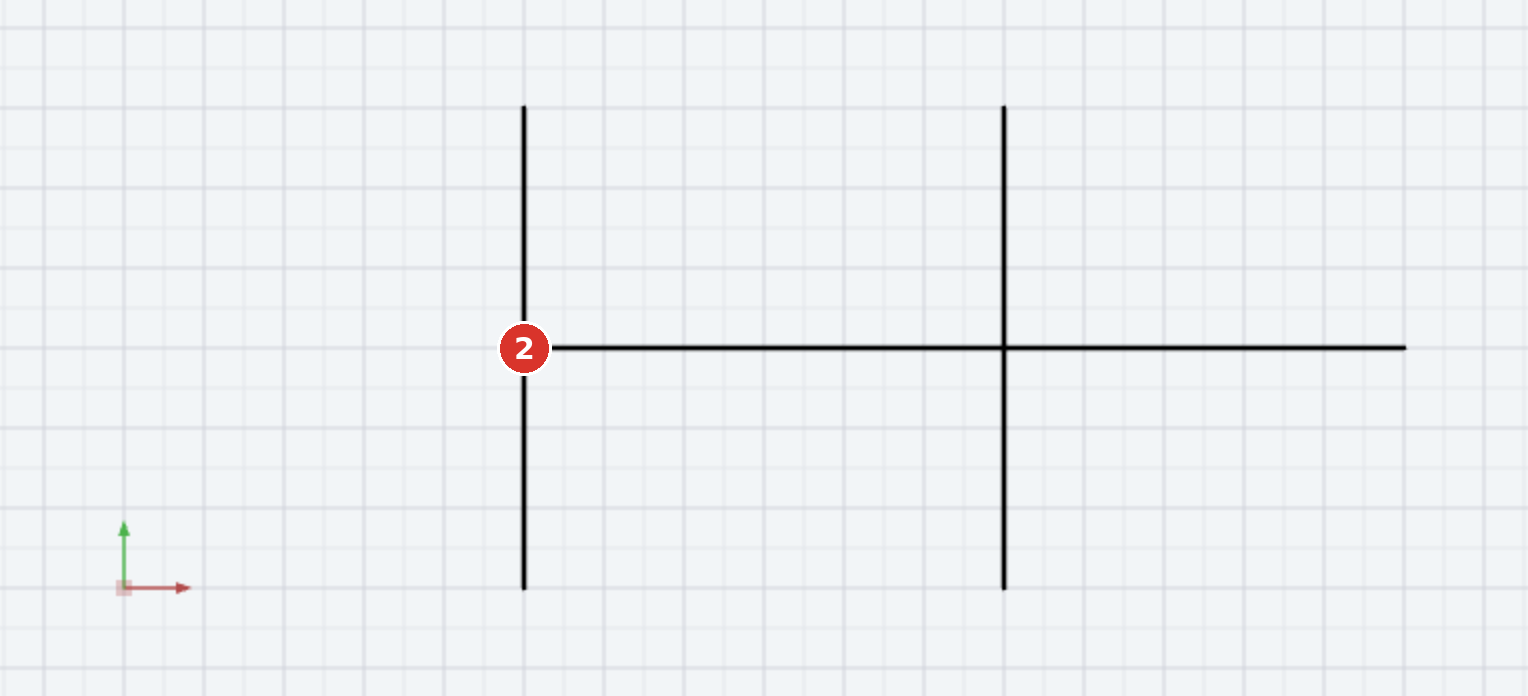

After: the line starts at the intersection (2) — the left overhang is gone
After: the line starts at the intersection (2) — the left overhang is gone

For a circle or an ellipse Trim needs at least two intersections (At least 2 intersections needed); the arc between the two intersections that contains the click remains. The status line reports Line trimmed, Circle trimmed, Arc trimmed etc. Without an intersection nothing happens (No intersections found).

Tip

Trim always shortens one element only. If two lines should form a clean corner together, use Trim two elements.

Break

Break Break is the counterpart: Click the line segment to be removed. The piece between the two intersections left and right of the click is taken out; if the click lies before the first or after the last intersection, the end piece is removed.

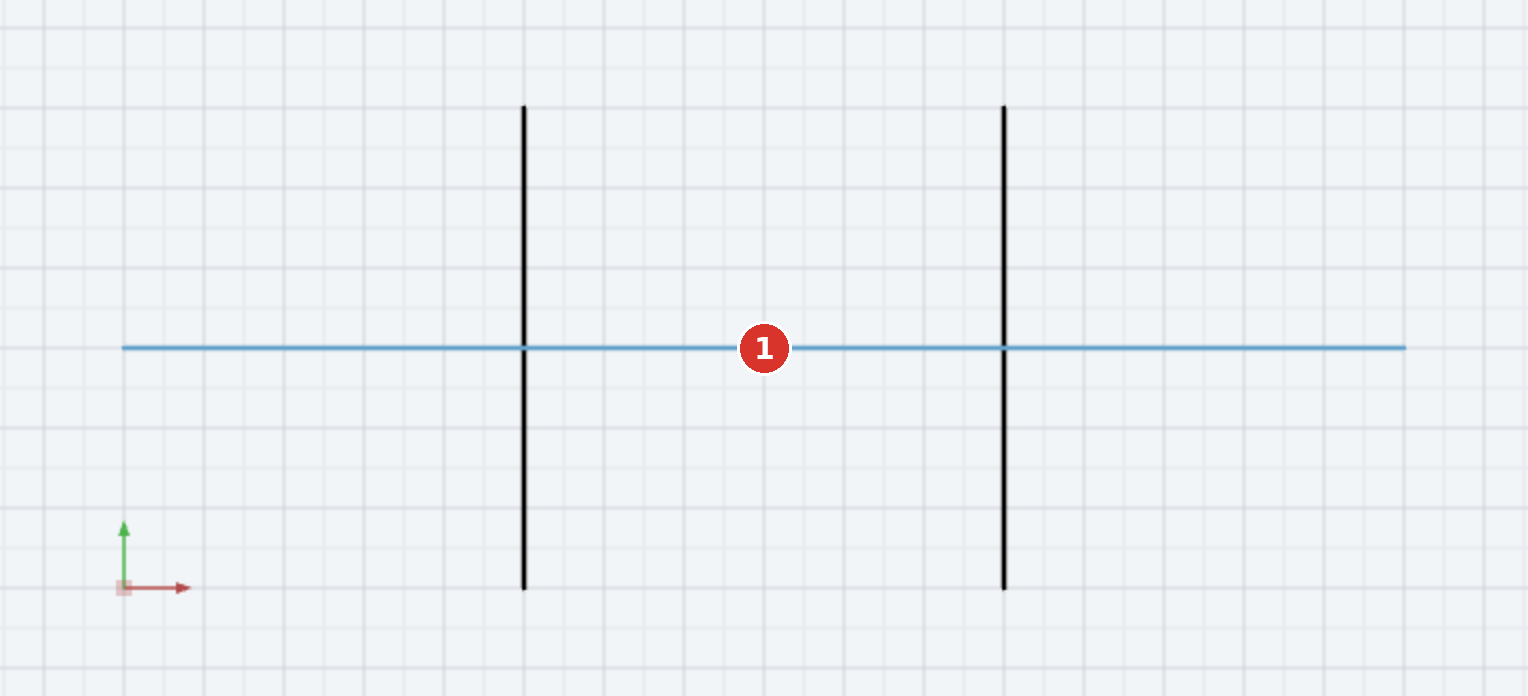

Before: the middle piece of the horizontal line is clicked (1)
Before: the middle piece of the horizontal line is clicked (1)

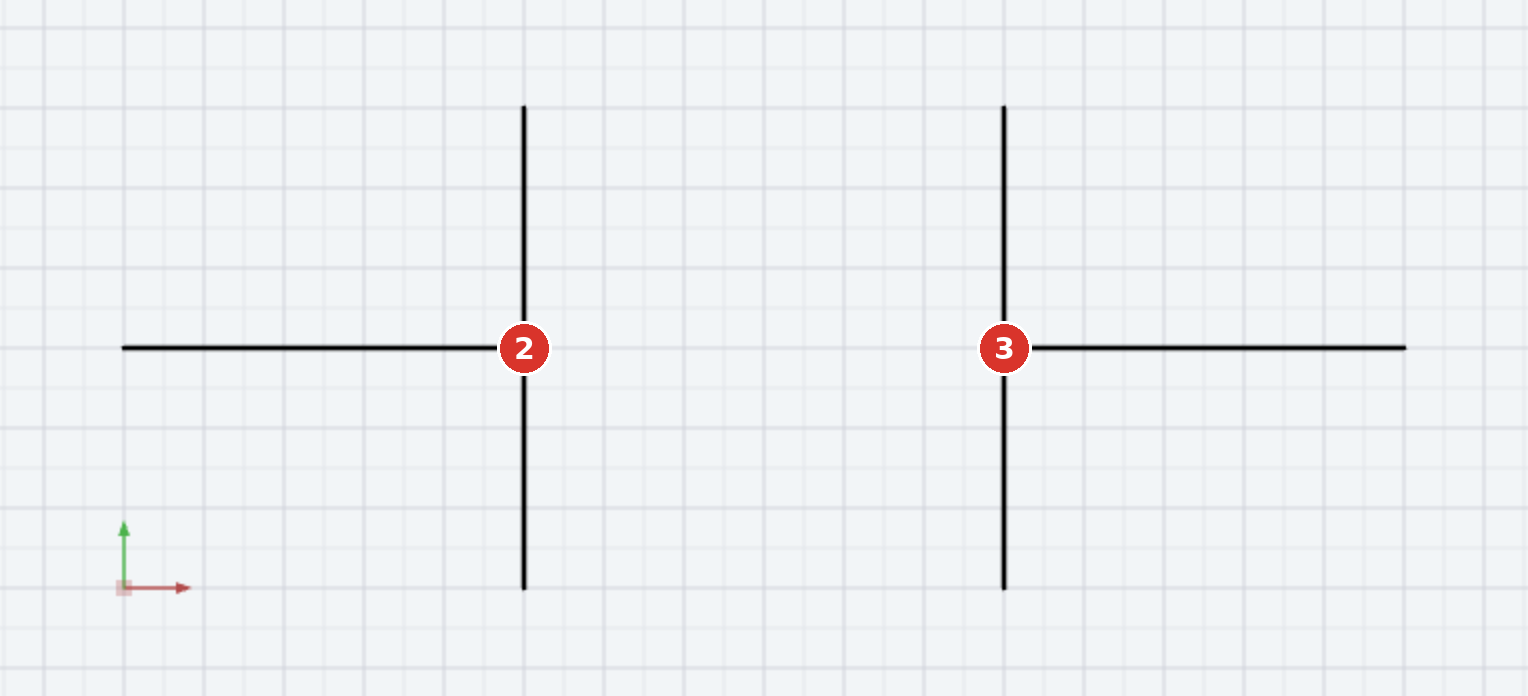

After: the line is interrupted between the intersections (2) and (3) — two elements
After: the line is interrupted between the intersections (2) and (3) — two elements

A line without intersections is removed as a whole by Break — saving the detour via Delete. For circles and arcs the remainder becomes an arc on the layer of the original (Circle broken, Arc broken). Closed splines must be split first (Closed spline: please split it first (W)).

Split

Split Split runs in two clicks:

  1. Click the element — it is chosen and highlighted; the status line reports Line chosen — click the split position (ESC = cancel).
  2. Click the split position — the element is divided there (Line split at (x, y) → 2 pieces). For a line the perpendicular foot of the click counts, for arc and spline the click position, for a polyline the clicked segment (all vertices are kept). A closed polyline becomes an open polyline at the click position that starts and ends there; the closing edge is kept.

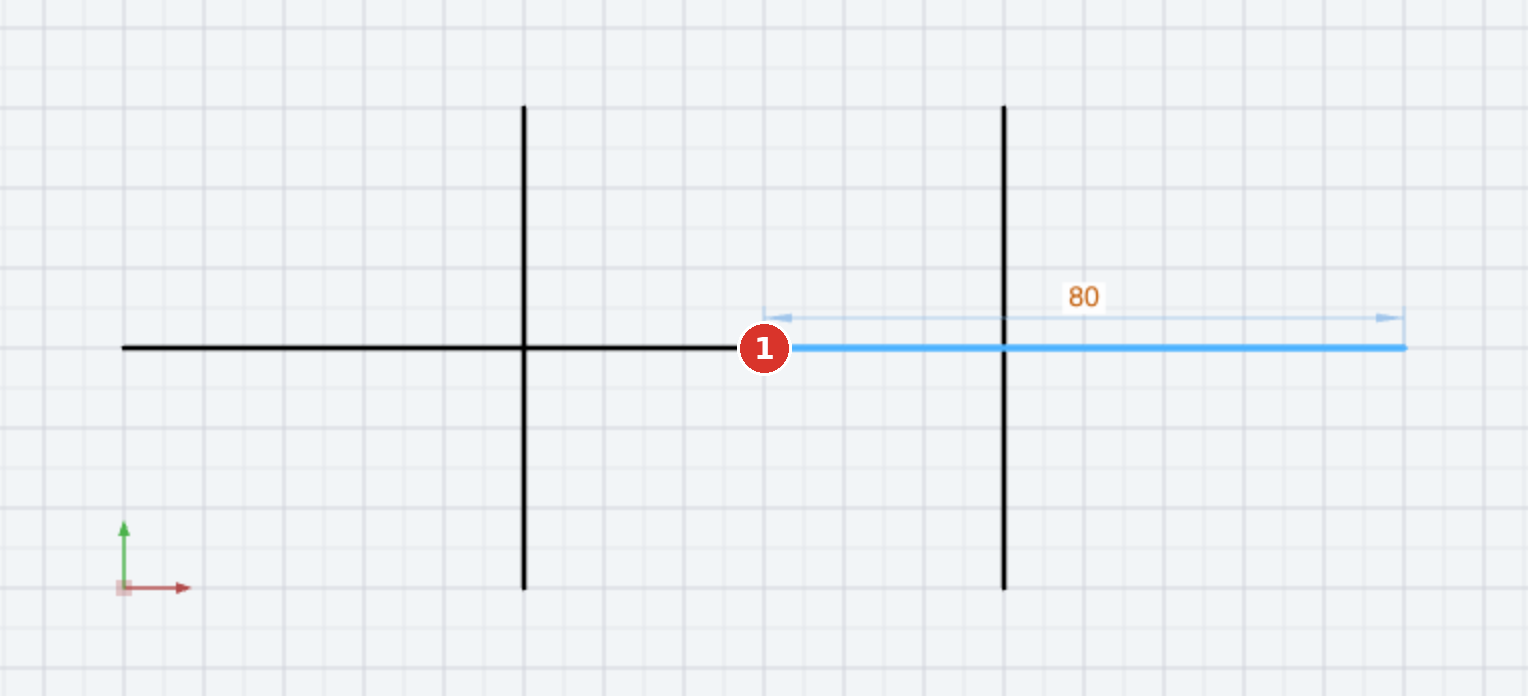

After splitting at (1): the line consists of two pieces, the right one is selected
After splitting at (1): the line consists of two pieces, the right one is selected

A circle needs two split positions: the first click chooses it and sets the first position, the second click the second one (Circle: click the second split position (ESC = cancel)); two arcs result. Likewise for the ellipse. If you cancel after the first click, the element stays unchanged. A closed spline becomes an open spline at the click position (Closed spline opened at (x, y)).

No split happens at an endpoint, arc end or polyline corner (The split position lies on an endpoint — not split); rectangles are rejected (Rectangles cannot be split — explode them into lines first).

Options and relations

  • All three tools stay active after the operation; Esc ends them.
  • Hatches are re-bounded.
  • Elements on locked layers or in locked groups are not trimmed, broken or split; the click shows the hint with the padlock. Invisible elements are not hit. A cutting edge on a hidden layer does not cut; one on a locked but visible layer does.
  • A click just before the start of an arc hits its start.
  • No operation leaves an empty undo step.

What is attached to the element

Trim and Break create new pieces, and so does Split. What was attached to the original element is passed on to the pieces:

  • Dimensions (length, radius, diameter, angle, distances) go to the remaining piece or the matching piece. If Break removes the middle piece, a length dimension stays as a point-to-point dimension between the outer ends — same value, same position (3). If only one end is cut away, it measures the remaining piece. Likewise with Split: a length dimension across the split position stays between the ends. An arc length across two arcs is dropped with a message.
  • A point dimension at a removed end stays fixed at the old position (same value, without a reference).
  • A driving dimension whose value changes becomes driven (message in the status bar).
  • Bound annotations, the group and the references of the sheets (dimensions through a viewport) go to the pieces. Ctrl + Z and Ctrl + Y also restore the dimensions on the sheets; what you changed on the sheet in between stays.
  • A weld goes to the piece that ends exactly at its point; if no piece ends there any more, it is dropped.
  • Constraints go to the pieces with Trim and Break; Coincident at a removed point is dropped with a message. When breaking in the middle, Horizontal, Vertical, Parallel, Perpendicular, Collinear and Concentric go to both pieces, Tangent to the piece with the touching point (if it was broken away, it is dropped with a message), Equal is dropped with a message. With Split the element’s constraints are removed with a message.
  • An element with Fixed is not trimmed and not partly broken: red message Element is fixed — trim refused or Element is fixed — break refused, no undo step. Breaking it away completely works, like deleting.
After breaking in the middle: (1) left and (2) right piece, (3) the length dimension stays as a point-to-point dimension 200 between the outer ends
After breaking in the middle: (1) left and (2) right piece, (3) the length dimension stays as a point-to-point dimension 200 between the outer ends
