DXF profiles

Purpose

Opens the DXF Profiles — layer & line type mapping dialog. An active profile translates foreign layer and line type names into LiberoDraft layers on import and writes the customer-specific DXF names on export.

Access

  • Ribbon and classic toolbar: file menu File → ⚙ DXF profiles… (3).
  • Command search : type DXF or profile, entry DXF profiles (category File).

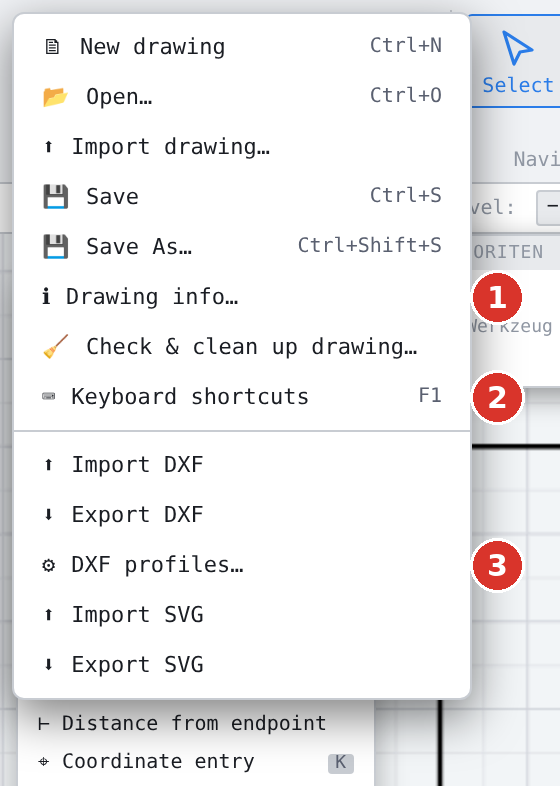

The file menu: (1) Drawing info…, (2) Keyboard shortcuts, (3) DXF profiles…
The file menu: (1) Drawing info…, (2) Keyboard shortcuts, (3) DXF profiles…

The dialog appears in both layouts — with the ribbon as with the classic toolbar.

The “DXF profiles” dialog in the ribbon layout
The DXF profiles dialog in the ribbon layout

Procedure

  1. Call the command. The dialog shows the profile list and the active profile.
  2. Choose a profile or create one with New, enter rules or learn them from the drawing or a DXF file — every entry is saved immediately.
  3. Close. The active profile now applies to every DXF import and export.

Loading and saving profile files

  • Load profile file… checks the file: an unreadable value falls back to the default, an entry that is not a profile is dropped, a profile without a name or with a name already taken gets a free substitute name (e.g. Kunde (2)). Valid profiles stay unchanged. If anything was cleaned up, the message starts in red with ⚠ n damaged entries cleaned up · Profile loaded: ….
  • If Save profile file… fails, no file is created; the status bar reports in red Profile not saved (reason). Cancelling the file selection stays silent.
  • Wildcards * in the rules may occur any number of times.

Options

See DXF Profiles dialog.

Related commands

  • Import DXF, Export DXF in the file menu — apply the active profile
  • Save/load settings — the settings export takes the profiles along
