Writing a DXF

Goal

Hand over the geometry so that it arrives unchanged in the recipient's program.

Steps

  1. If only a part is to be written, select it first.
  2. File menu File → “⬇ Export DXF” (3).
  3. With a selection: answer the prompt with OK (“selection only”) or Cancel (“all elements”).
  4. Decide in the dialog DXF options:
  • Hatches as a block if the picture must match exactly; as a hatch object if the recipient should be able to change the pattern.
  • Have dimensions combined as a block so that dimension line, arrows and text stay together.
  • Blocks as a block if parts are to remain parts.
  1. “Export” — the file is downloaded.

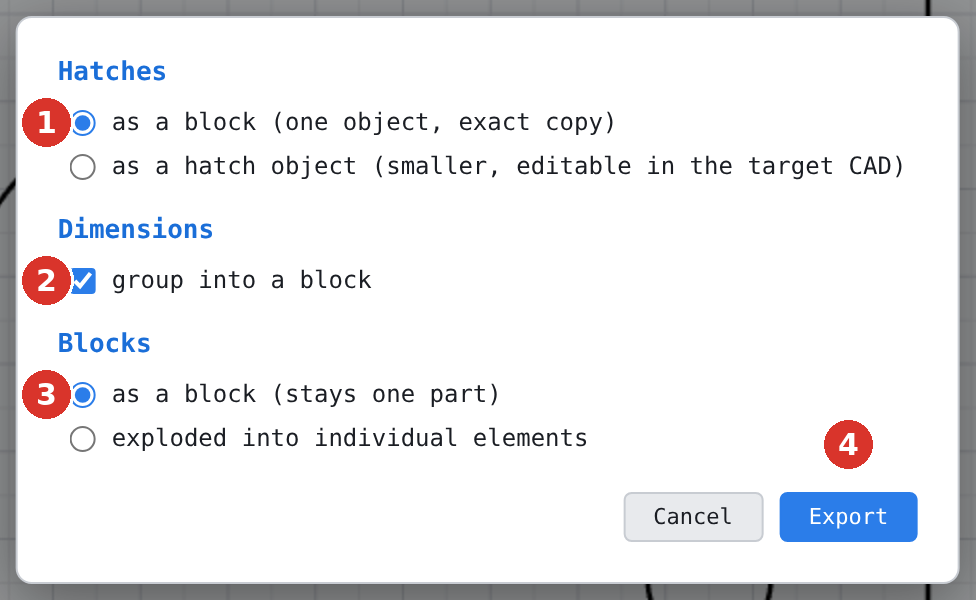

Dialog “DXF options”
Dialog “DXF options”

Result

A DXF file with the layers and line types of the active profile. Images are not included.

Tip

If the recipient needs a DWG file, save the drawing and call Export DWG… in the file menu: it opens the add-on LiberoDWG, where you load the drawing and export it as DWG (DWG and STEP via add-ons).

Note

To hand over a whole sheet, switch to the sheet first: the dialog then offers “Sheet flattened (scale applied)”.

Note

If creating the file fails, no file is produced and the status bar reports in red DXF export failed (reason). Images do not go to DXF; to take them along, use Export SVG — it draws like the print and contains everything visible, including blocks, dimensions, hatches and images.
