Rectangle (3 points)

Purpose

Draws a rectangle at any angle: instead of two opposite corners you first fix a whole side and then the width. This creates a rotated rectangle without having to rotate it afterwards.

As with the rectangle the result is a single element — or, with the corresponding option, four single lines.

Access

  • Ribbon: group Draw, triangle on the Rectangle button — entry Rectangle 3P (4).
  • Classic toolbar: drop-down triangle of the rectangle family (2).
  • Command search : Rectangle 3 points.
Family «Rectangle», entry (4) Rectangle 3P
Family Rectangle, entry (4) Rectangle 3P

Procedure

  1. Click the start point of the first side (1).
  2. Click the endpoint of the first side (2) — or type ΔX/ΔY into the floating field. This segment determines both length and inclination of the rectangle.
  3. Set the width (3): click on the side the rectangle is meant to lie on, or type the value into field B and press Enter.

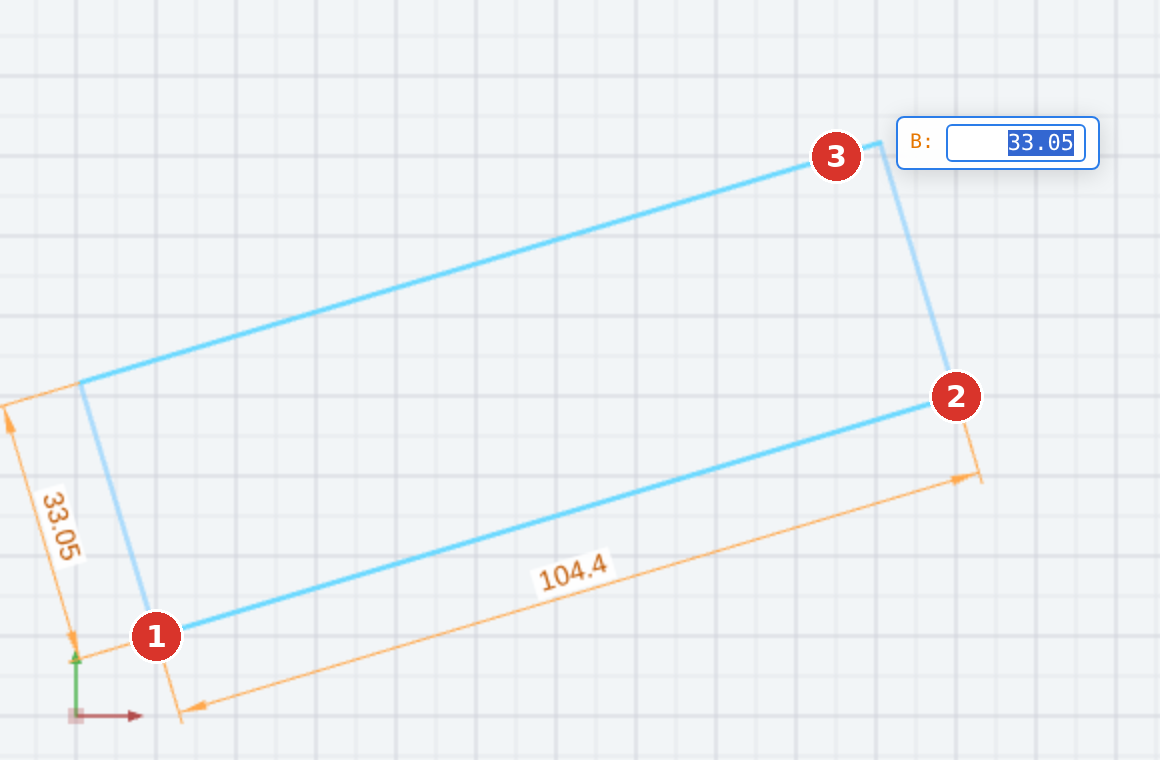

(1) start and (2) end of the first side, (3) width; the dimensions run along in the field
(1) start and (2) end of the first side, (3) width; the dimensions run along in the field

A first side that is too short is refused with First side too short, a width that is too small with Width too small.

Options

The tool uses the same floating window as the rectangle — Diagonals crosswise, As separate lines (exploded) and Diagonal line width apply here too. The window opens with the tool and closes with it.

The «Rectangle» window with its three options — it applies to both rectangle tools
The Rectangle window with its three options — it applies to both rectangle tools

As with all drawing tools, object snap, the active layer and pick up attribute (J) apply.

With As separate lines (exploded) the four lines are welded at the corners at once, with diagonals their ends as well; an existing line ending in a corner is then welded too — regardless of auto-weld, as with the rectangle.

If the switch ⛓ Live constraints in the header bar is on, the rectangle drawn as separate lines also receives the constraints it satisfies exactly: for a rotated rectangle Perpendicular at all four corners, for an axis-parallel one Horizontal or Vertical for each side (Live constraints). The diagonals stay free; a rectangle as one element receives no constraints.
