Block BOM
Purpose

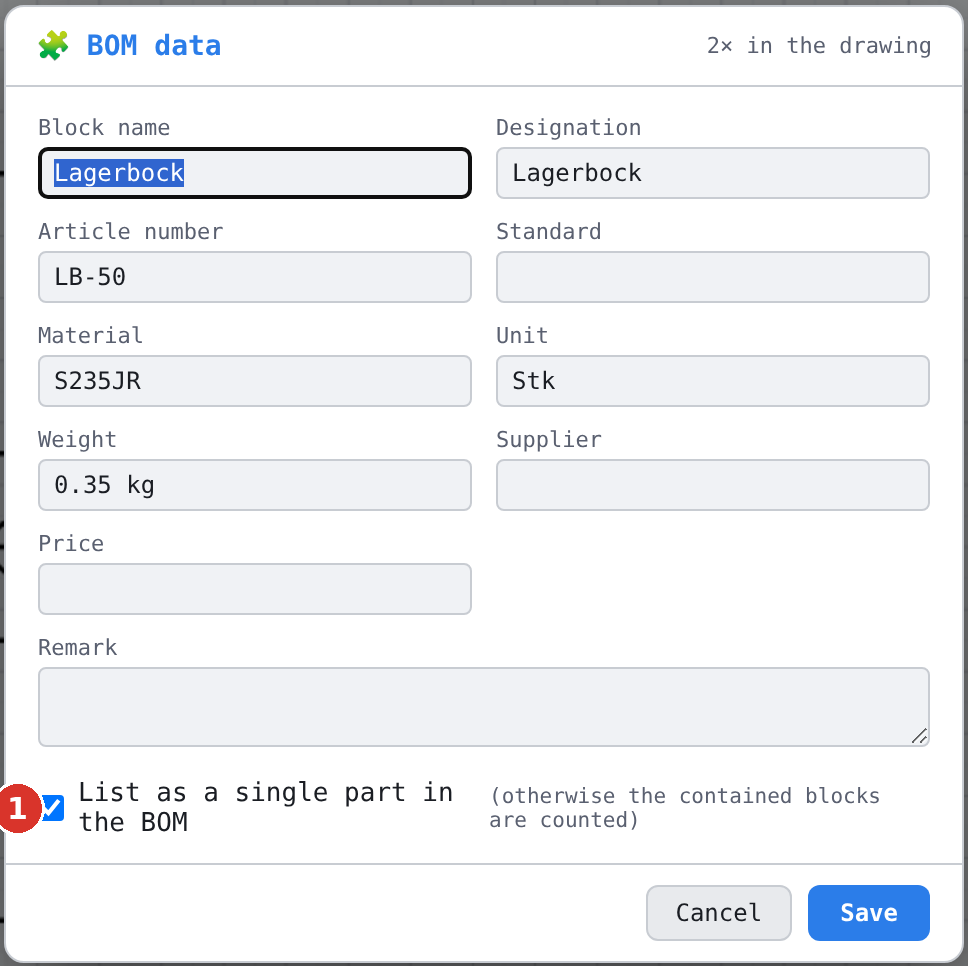

Opens the dialog BOM data for the definition of the selected block instance: block name, designation, article number, standard, material, unit, weight, supplier, price, remark and the check box List as a single part in the BOM; below that the section Custom fields with the drawing's own fields and the button Manage fields…. The dialog field by field: Dialog BOM data.
Access
- Right-click on a selected instance → 🧩 BOM data… (2 in the picture at Edit block).
- Panel Blocks: row button ✎ Edit BOM data of a definition.
- Block manager: select the block, 📋 BOM data.
- Panel Properties: for a selected block instance the section shows the BOM data of the definition — with the number of insertions (1) and the button BOM data… (2); the values can only be changed in the dialog.
- Command search : type Block BOM (needs a selected instance).

Procedure
- Select an instance, start the command. The dialog shows n× in the drawing at the top right — counted over the model and all sheets; if the block also occurs inside other blocks, · m× in total follows (every occurrence, nested ones multiplied by the quantity of the outer blocks).
- Fill in the fields; the first field is already highlighted.
- Save applies the values to all instances of the block, increases the block version and reports BOM data saved: Name — on a sheet with the addition To restore: tab “Model”, then Ctrl+Z, because the step lies in the history of the model. Cancel, Esc or a click beside the dialog discard.

Without a selected instance: Please select a block instance first.
Rules
- The data belong to the definition, not to the instance. If instances should carry different data, split off a variant.
- An empty block name is not applied; the previous one remains.
- Custom fields: which custom fields exist is defined by the drawing (window BOM fields, opened via Manage fields…); new drawings get them from the template in the Settings dialog. In the block editor, managing the fields of the drawing is locked. Values are text; numbers with a comma or a point are converted by the parts list for totals (Parts lists).
- A live parts list lacks the entry; the other ways report in red that it has no BOM data of its own.
- The check box As a single part controls the structured BOM (As a single part).
Related commands
- Show parts list — the result of all blocks
- Block manager — search also in the parts-list data
