Measure
Purpose
Queries dimensions and properties without changing the drawing: length, angle, coordinates, distances, areas. The values appear in the window Measure and in colour in the drawing and can be copied to the clipboard.
Access
- Key: I.
- Ribbon: group Navigation Measure (2).
- Classic toolbar: button Measure (2).
- Command search : Measure.
Procedure
- The window Measure opens at the top centre; the list at the top chooses the mode.
- Depending on the mode click an element or points — with object snap. The window shows the values, the drawing the measured distance in orange, ΔX in red and ΔY in green.
- Kopieren puts the values as text into the clipboard (Measured values copied); Schliessen or V ends the tool.
| Mode | Operation | Result |
|---|---|---|

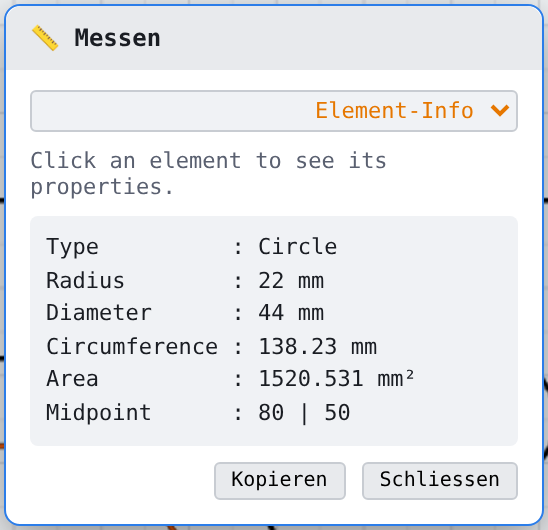

| Element info | click one element | type and key values: line — length, angle, ΔX, ΔY, start, end · circle — radius, diameter, circumference, area, centre · arc — radius, central angle, arc and chord length · rectangle, polyline, spline, point accordingly |

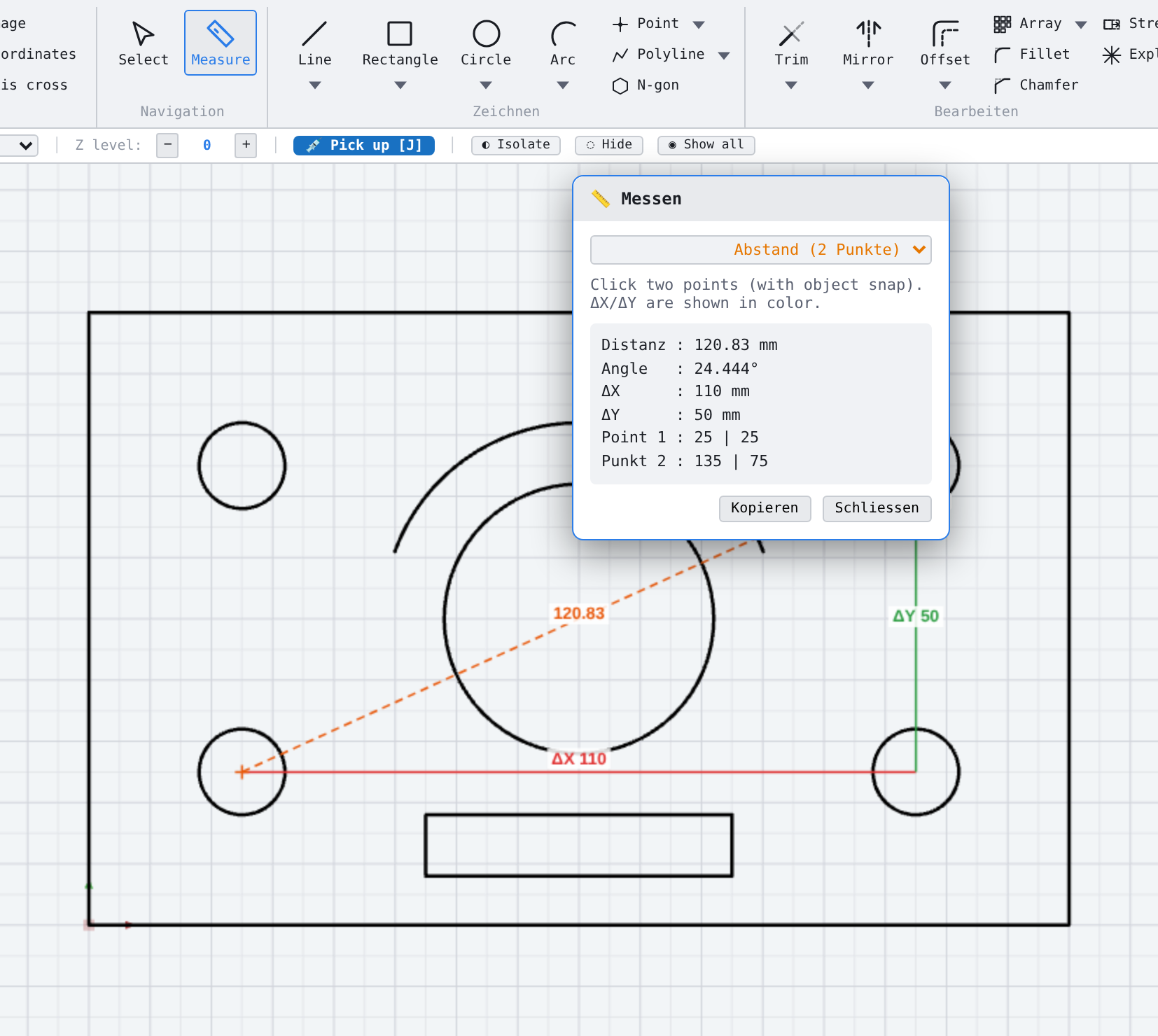

| Distance (2 points) | click two points | distance, angle, ΔX, ΔY, both points |
| Point (coordinates cart. + polar) | click one point | X/Y and r/θ, relative to the reference point (default: origin); Bezug setzen chooses another reference, ↺ resets it |
| Chain measurement (Σ over points) | click points one after another | partial distances and sum; Enter finishes, ⌫ takes back the last point, Esc starts anew |
| Min. distance (2 elements) | click two elements | shortest connection, shown in the drawing |
| Angle (2 lines) | click two lines | enclosed angle |
| Area & perimeter | Automatisch: click into a closed area (contour as with hatching) · Manuell: click the contour elements, then Enter | area, perimeter, centroid; 📍 Schwerpunkt als Punkt einfügen creates a real point |
In viewports of the paper space model values are measured; the window points this out with Model values through viewport.
Options
All options are in the window: Window Measure. The unit follows the dimension unit of the drawing (Units).
Related commands
- Dimension — place a dimension permanently in the drawing
- Properties panel — key values of the selected element, editable there as well
