Explode
Purpose
Some elements are one element although they consist of several pieces: the rectangle, the polyline, the spline, the ellipse and the block instance. Explode breaks them into their parts — the rectangle into four lines, the polyline into its segments, spline and ellipse into a sequence of short lines, the block instance into the elements of the definition. Afterwards each piece can be trimmed, deleted or split individually.
Applied to selected dimension chains, Explode dissolves the chain into single dimensions (Chain dimension).
Access

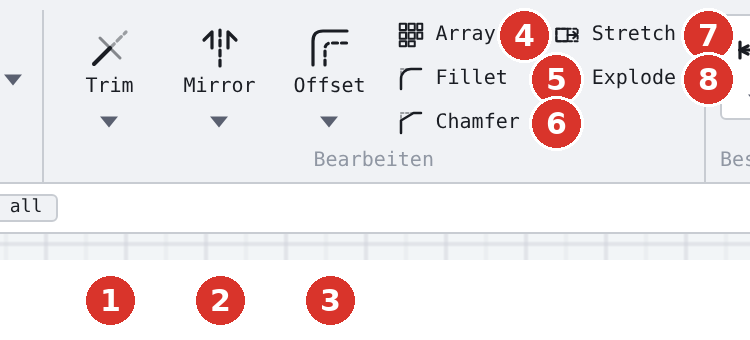

- Ribbon: group Modify, button Explode (8). If the window is narrow, the group is collapsed: the arrow below the group icon opens the list of all tools of the group, including Explode.
- Classic toolbar: group Edit, button Explode (8).

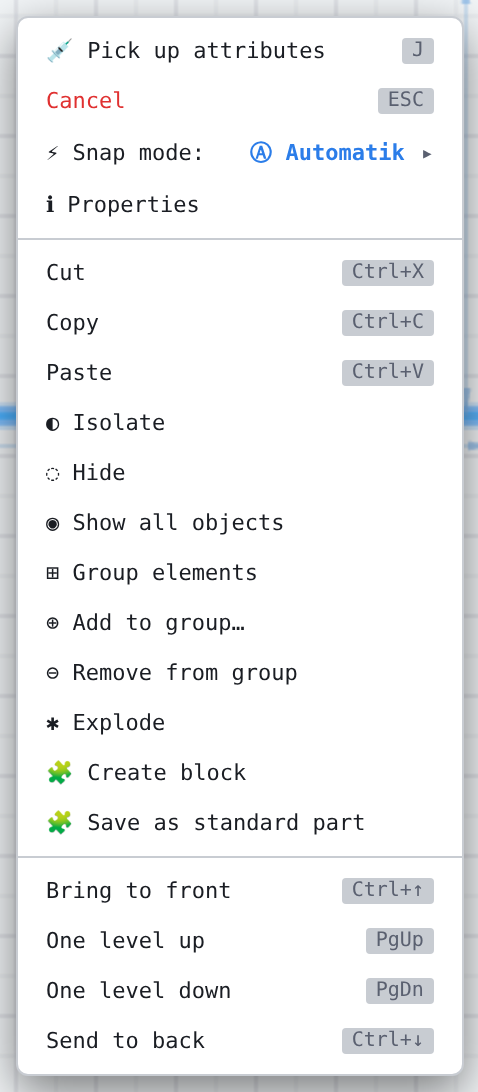

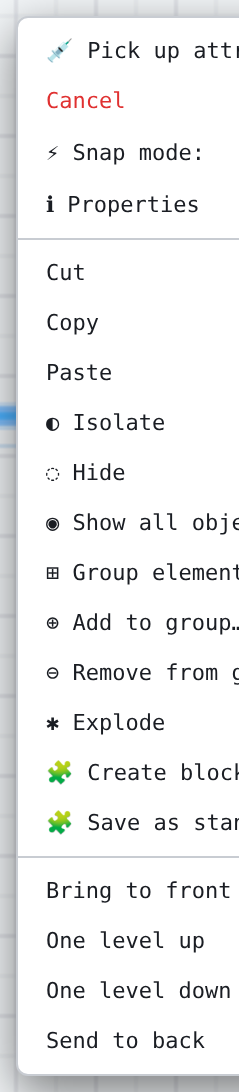

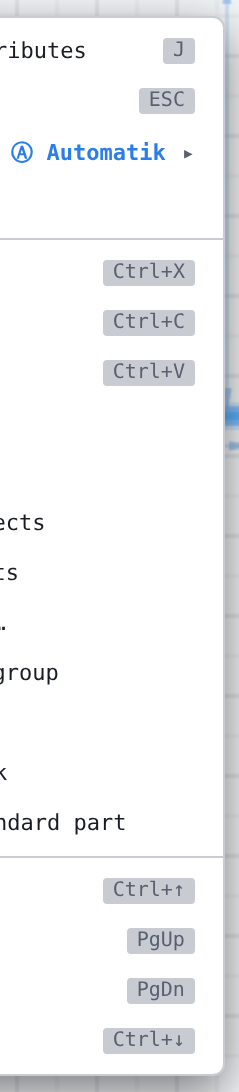

- Right-click menu on an explodable element: entry ✱ Explode (4). If further elements are selected besides the one under the pointer, the entry explodes both in one step.
- Tools window, section Edit: ✱ Explode — without a selection the entry selects the tool like the button.
- Command search : Explode.


left half
right halfProcedure
With a selection: if something is already selected when the tool is started, all explodable elements of the selection are exploded immediately — without a further click; the status line reports for example Exploded: 2 element(s) → 8 element(s), the tool switches back to Select. Behind it, the message names what else happened: · n constraint(s) removed, · n dimension(s) now driven, · n locked or hidden. If nothing can be exploded, no undo step is created.

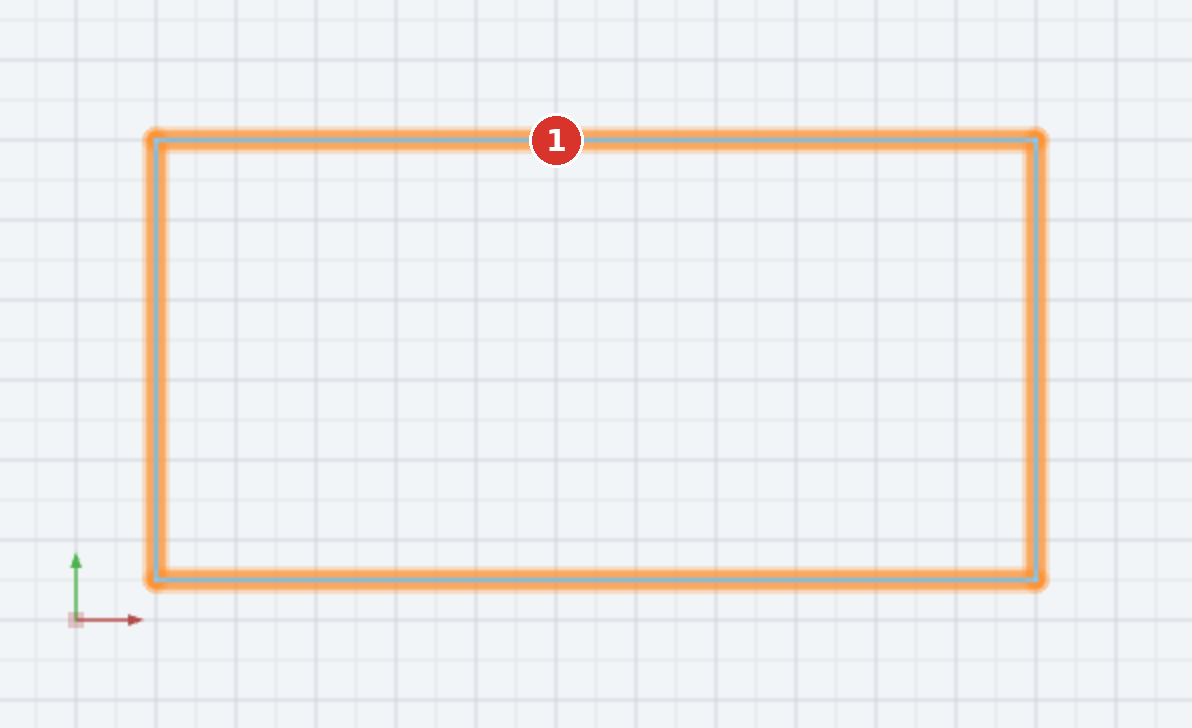

Without a selection: the tool stays active, the candidate under the pointer glows (1); a click breaks it up. If the click hits nothing explodable, the status line reports Nothing to explode at the click point — click a rectangle, polyline, spline, ellipse or block. Esc ends.
Locked and invisible objects are not exploded — neither by a click nor from the selection: elements on locked or hidden layers, in locked groups, on hidden Z levels, hidden or isolated elements and hidden blocks. A click on a locked element shows the hint with a padlock; if nothing remains of the selection, the status line reports Nothing exploded — n element(s) locked or hidden.


What is created
| Element | Result |
|---|---|
| Rectangle | four lines |
| Polyline | one line per segment |
| Spline | sequence of short lines along the curve |
| Ellipse, elliptical arc | polyline of 96 segments (closed or open) |
| Block instance | the elements of the block definition in place, with their dimensions and hatches (Blocks — Explode). Sub-blocks remain references together with their own dimensions and hatches — hidden ones too. The block's hatch then lies one Z level below its lines and follows them if they form the same boundary; everything else goes to the Z level of the reference, images, texts and annotations keep their distance. A live parts list becomes a fixed version this way. |
| Dimension chain (selected) | single dimensions — Dimension chain dissolved — 4 individual dimensions |

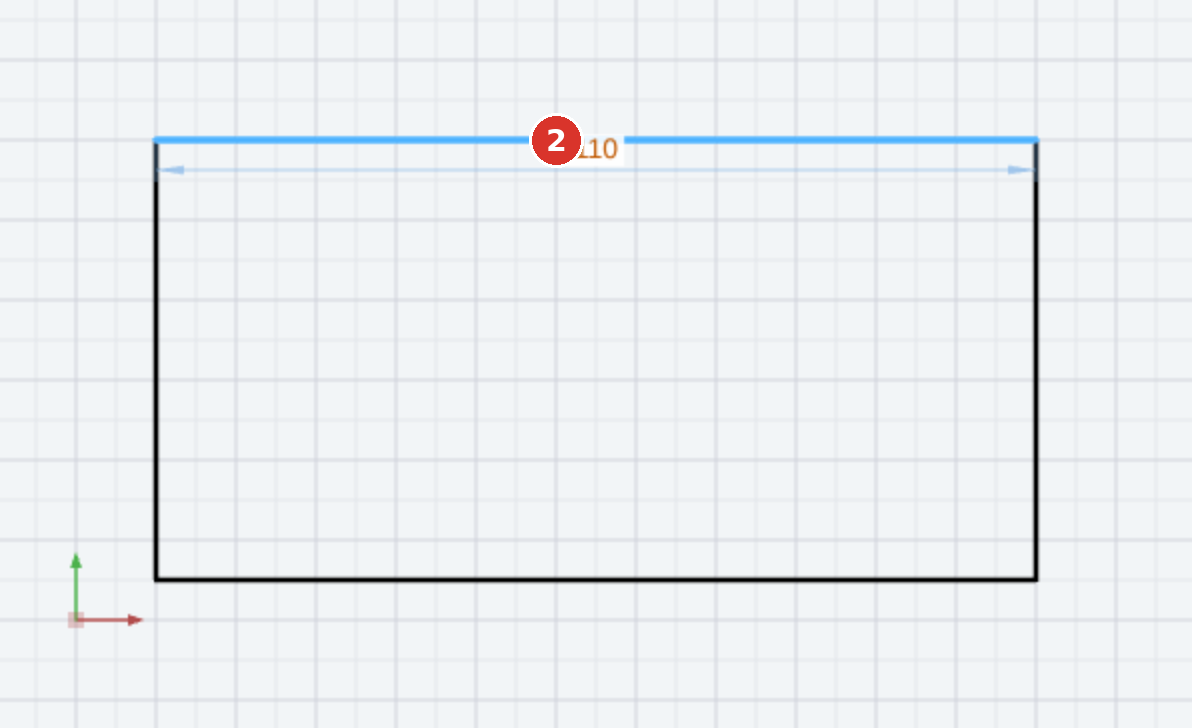

The new elements take over layer and attributes of the original and are selected after the operation. Lines, circles and arcs cannot be exploded (Nothing to explode — select a rectangle, polyline, spline, ellipse or block).
What goes along
- Dimensions: dimensions on edges (Width, Height, segment of a polyline) become linear dimensions on the matching piece; dimensions at points stay at those points. A driving dimension in a scaled block reference is taken over in drawing units. Dimensions that hang from outside on a line, circle or arc of a block reference (Parts in blocks) become ordinary dimensions on the piece and can drive afterwards; if the part lies in a sub-block, the dimension then hangs on that sub-block's insertion.
- Bound annotations (remark, balloon …) and groups pass to the pieces.
- Welds pass to the piece that ends exactly at their point.
- Constraints of the exploded element are removed; the message gives their number.
- All this also applies to dimensions and annotations attached to the element through a viewport on a sheet. Ctrl + Z and Ctrl + Y restore them — in the model as on the sheet; what you have changed on the sheet since then stays.
Options and relations
- Explode is one step for Undo — even with many elements.
- No new welds are created when breaking up — the corners of a rectangle or polyline are not welded afterwards; if they should stay together when moving an endpoint, weld the lines.
- An exploded rectangle can no longer be edited as a rectangle (width/height in the panel Properties); in return it becomes trimmable and splittable.
- When drawing, a rectangle can be created as individual lines from the start (Rectangle, option As separate lines (exploded)).
