Double line

Purpose

Draws two parallel runs of lines at a fixed gap — the usual way for walls, ducts, grooves and profiles in section. The corners are cut as a mitre, start and end are closed with a closing stroke.

The result consists of single lines: the run, the offset run and the two closing strokes. They can afterwards be changed, trimmed and deleted one by one.

Access

  • Ribbon: group Draw, triangle on the Line button — entry Double line (7).
  • Classic toolbar: drop-down triangle of the line family (1).
  • Command search : Doppel-Linie or wall.

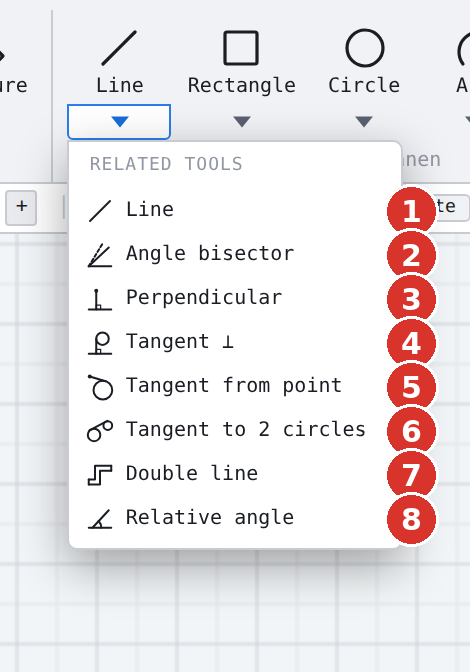

Family «Line», entry (7) Double line
Family Line, entry (7) Double line

Procedure

  1. Click the start point (1) — Click the start point — the double line starts there.
  2. Click further points (2, 3) — Click the next point — Enter or double-click ends the run. The three-part input field L (length), ∠ (angle) and A (gap) stands at the pointer.
  3. End the run with Esc or a double-click.
  4. Pick the side (4) — Click the side — the second line lies there. The preview shows the complete double line on the mouse side; a click fixes it.

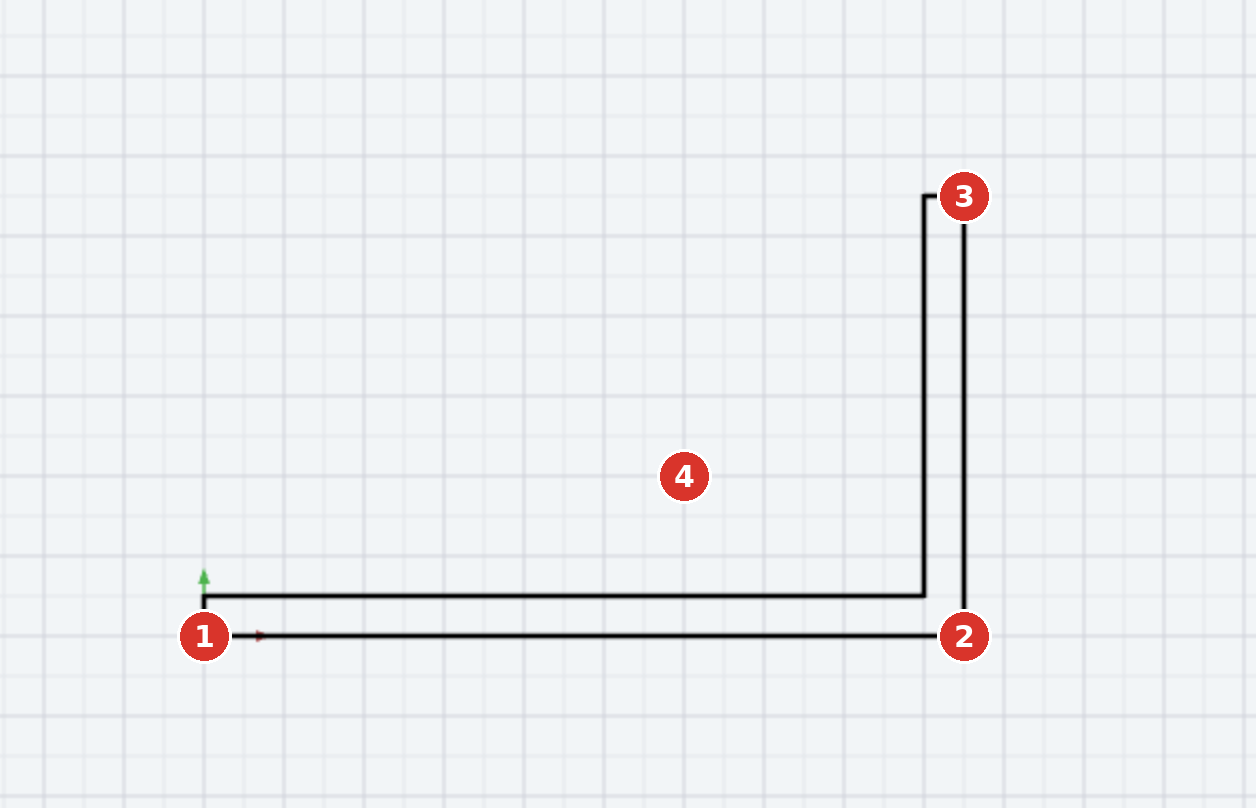

(1) start point, (2) and (3) further points, (4) click on the desired side; the finished double line with mitre and closing strokes
(1) start point, (2) and (3) further points, (4) click on the desired side; the finished double line with mitre and closing strokes

At the end the status bar reports Double line drawn (n segments, gap a). A run with only one point is not built: Double line: at least two points needed.

Caution

In step 2 the status bar mentions Enter or double-click. In fact Enter does not end the run — it only accepts the values of the input field and sets the next point. The run is completed with Esc or with a double-click (as of 4.0.21).

The gap A

The third field A of the floating input field sets the gap between the two lines. The value is remembered and offered again on the next call; the factory value is 5 mm. You can change it at any time during the run — what counts is the value at completion.

Length L and angle ∠ set the next point as with the polyline: type the value, Tab, type the second value, Enter.

Mitre and closing

At every corner the offset run is led through the intersection of the two offset straight lines — the corner is thus cleanly mitred, without overhang. Only when two consecutive segments run parallel is a simple offset used.

At the start and at the end the program draws one closing stroke each between the run and the offset run, so that a closed profile is created.

Options

  • All lines are created on the active layer; pick up attribute (J) applies beforehand.
  • Object snap applies to every point of the run; ORTHO keeps the segments horizontal or vertical.
  • The whole run is one step for Undo.
Note

This tool shows no tooltip at the pointer. The status bar shows the tool name Double line on the left and guides you through the whole sequence with its messages.
