Page setup

Purpose

Sets a sheet’s format, orientation and margin. The dialog is also the place for “Insert frame + title block” and for deleting the sheet.

Access

  • Status bar: right-click the sheet’s tab (tooltip “Right-click: page setup · double-click: rename”).
  • No palette command; available on a sheet only.
  • While the block editor is open, “Page setup”, the tabs, renaming, “Insert frame + title block” and “Delete layout” are locked; the status bar reports in red “The layout cannot be changed in the block editor — first click «Speichern» (save) or «Abbrechen» (cancel).”
Right-clicking the sheet tab (2) opens “Page setup”
Right-clicking the sheet tab (2) opens “Page setup”

Procedure

  1. Right-click the tab — the dialog “Page setup — Layout n” appears.
  2. Choose format A4, A3, A2, A1 or A0 (1) and orientation “Landscape” or “Portrait” (1).
  3. Enter the margin in mm (2) — it applies to all four sides (0–50 mm). A larger or smaller value is brought into this range without a message; if you leave the field unchanged, the value stays as it was. An unreadable number (e.g. «abc») is refused with a red message, and the dialog stays open.
  4. “OK”. If the sheet is open and has no stored view yet, it is fitted again.

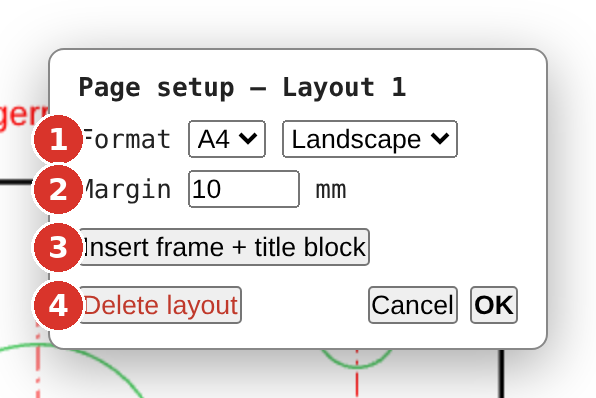

(1) format and orientation, (2) margin, (3) insert frame + title block, (4) delete layout, Cancel, OK
(1) format and orientation, (2) margin, (3) insert frame + title block, (4) delete layout, Cancel, OK

Options

  • “Insert frame + title block” (3) closes the dialog and places frame and title block on the sheet (Frame and title block).
  • “Delete layout” (4) removes the sheet after the prompt “Delete layout “n” permanently? All sheet elements of this layout will be lost (cannot be undone).” — no undo.
  • Enter confirms, Esc cancels.

Effect

Format and margin form one undo step. The margin is the print margin: the drawing frame is drawn on it, and it carries the sheet frame when printing. Viewports already placed stay where they are — on a smaller sheet they may stick out over the edge and have to be moved.
