Switch ribbon / classic toolbar

Purpose

Switches the user interface between the ribbon (wide buttons with labels and group names) and the classic, narrow toolbar. Both run the same commands; structure: Screen layout. The choice is saved; the factory default is the ribbon.

Access

  • Key: F2 (without modifier) or Ctrl + Shift + R.
  • Gear on the right in both layouts: row Layout, button Ribbon or Classic.
  • Right-click on a free spot of the ribbon or the toolbar, or the entry Switch to the classic toolbar / Switch to the ribbon in the right-click menu of a button.
  • Command search : type ribbon or classic, entry Switch ribbon / classic toolbar (category View, shortcut F2).
The ribbon — whole and in two halves

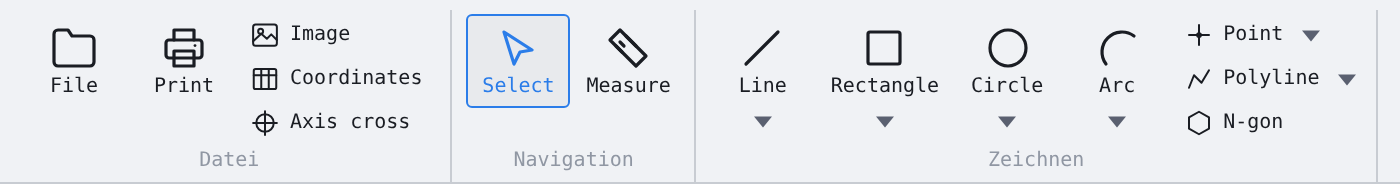

The ribbon — whole and in two halves — left halfleft half

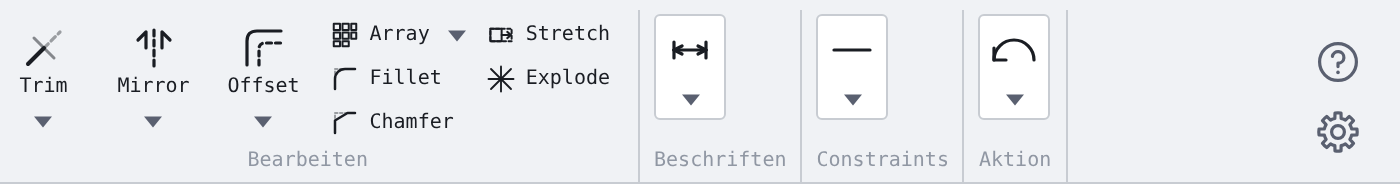

The ribbon — whole and in two halves — right halfright half
The ribbon at a window width of 1920 pixels (all groups open) — whole and in two halves
The classic toolbar — whole and in three parts
The classic toolbar — whole and in three parts — part 1 of 3part 1 of 3
The classic toolbar — whole and in three parts — part 2 of 3part 2 of 3
The classic toolbar — whole and in three parts — part 3 of 3part 3 of 3
The classic toolbar — whole and in three parts

Procedure

The switch applies immediately. Gear and help button move along — in the ribbon they sit one above the other at the right edge, in the classic toolbar side by side at the far right. Tool and favourites windows move so that they do not end up behind the bar. The status bar confirms: Ribbon view — F2 (or Ctrl+Shift+R) switches back or Classic toolbar — F2 (or Ctrl+Shift+R) switches to the ribbon.

At the right end of the ribbon sits the group Add-ons with the button Add-ons; the classic toolbar carries the same button. If the window is narrow, the ribbon groups collapse one after another (in the English interface at a width of 1400 pixels Annotate, Constraints and Actions are collapsed); the arrow below the group icon then opens the list of the group. In the classic toolbar, buttons that find no room move into the menu ☰.

Options

Icon size, text size, font, spacing and Remember variant of the ribbon: gear window. Icon size of the classic toolbar: Status bar — Icons. The switch itself has no undo; Factory defaults restores the ribbon.
