“Layers” section

The “Layers” section is the topmost in the factory order of the panel on the right. It manages the layer list of the drawing; up to half the window height it grows, then the list scrolls.

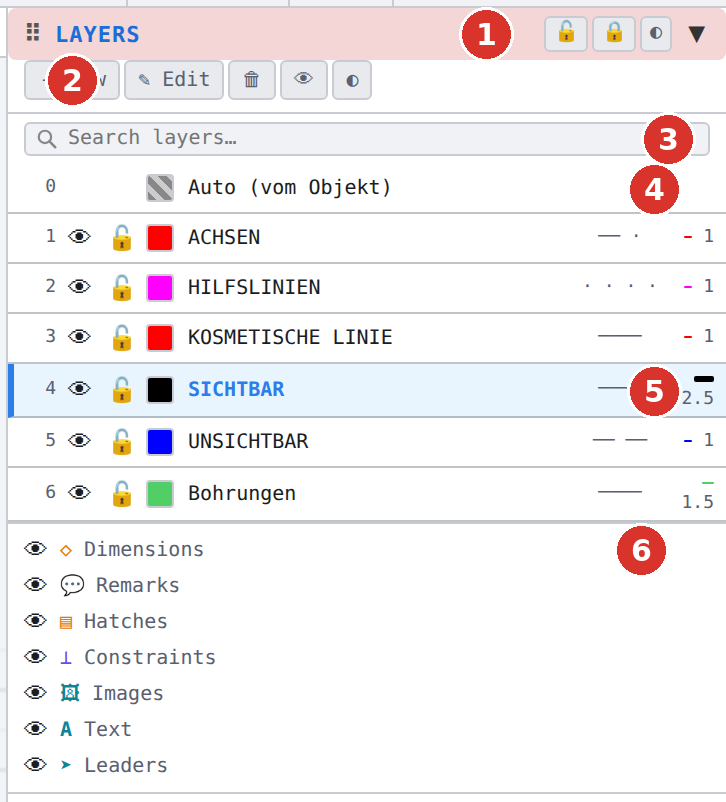

The section: (1) lock bar, (2) toolbar, (3) live search, (4) auto row, (5) layer row, (6) system layers
The section: (1) lock bar, (2) toolbar, (3) live search, (4) auto row, (5) layer row, (6) system layers

Title row

Like every section the title row carries the grip ⠿ for re-ordering or tearing off and the triangle for folding (Panel sections). In between sits the lock bar with three buttons: 🔓 “Unlock all layers”, 🔒 “Lock all layers”, ◑ “Invert locking of all layers”. Every click on them is an undo step (Undo); the status bar reports “All layers unlocked” / “All layers locked” / “Layer locking inverted”.

(1) unlock all, (2) lock all, (3) invert
(1) unlock all, (2) lock all, (3) invert

Toolbar

(1) New, (2) Edit, (3) Delete, (4) show/hide all, (5) invert visibility
(1) New, (2) Edit, (3) Delete, (4) show/hide all, (5) invert visibility
ButtonEffect
+ Newcreates “Layer n” and makes it active — New layer; one undo step, the drawing counts as changed
✎ Editopens the “Edit Layer” dialog for the active layer
🗑opens the “Delete layer” dialog for the active layer; with only one layer: “At least one layer required”
👁show or hide all layers: if all are visible, all are hidden, otherwise all are shown (“All layers hidden” / “… shown”); one undo step
◐invert the visibility of every layer (“Layer visibility inverted”); one undo step

Live search

The field “Search layers…” filters the list while typing by number or name; several words must all occur. Esc clears the field, and so does the small ✕ at the right inside the field, which since program version v3.0.39 appears as soon as something has been typed. During a search the auto row steps back; eye, lock and active layer stay untouched. Without a match “No layer matches the search” is shown.

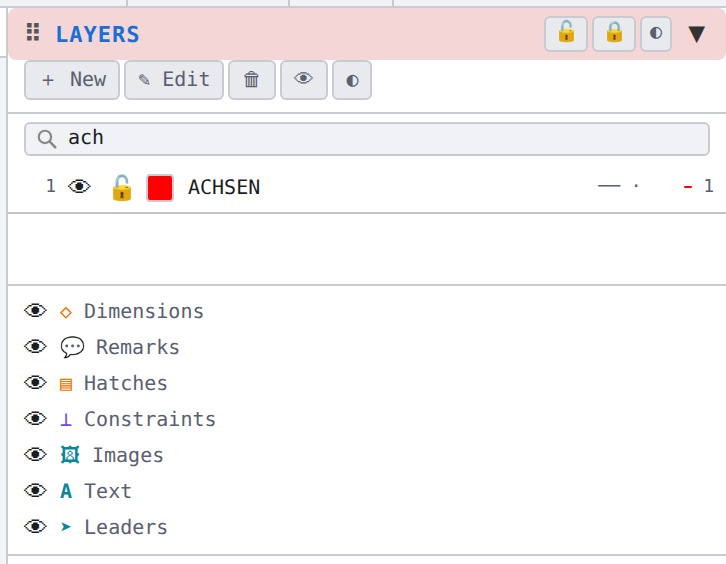

Search for “ach”: only “ACHSEN” remains
Search for “ach”: only “ACHSEN” remains

Auto row “0”

The row “0 · Auto (from object)” is the auto mode: results of functions take the layer of the clicked object. A click switches it on; a real layer switches it off. The tooltip of the row explains the mode.

Layer rows

(1) No., (2) eye, (3) lock, (4) colour, (5) name, (6) line type, (7) width
(1) No., (2) eye, (3) lock, (4) colour, (5) name, (6) line type, (7) width — left halfleft half
(1) No., (2) eye, (3) lock, (4) colour, (5) name, (6) line type, (7) width — right halfright half
(1) No., (2) eye, (3) lock, (4) colour, (5) name, (6) line type, (7) width
ColumnClickDisplay
(1) No.—ordering number, sorted by it
(2) eyeshow/hide (tooltip “Hide” / “Show”). The parts list treats block insertions on a hidden layer like hidden blocks.👁 visible, 👁‍🗨 hidden
(3) locklock/unlock (“Lock” / “Unlock”). Clicking an element, dimension or hatch of a locked layer in the drawing shows a note with a padlock at the pointer naming all locking layers and groups; clicking a padlock there unlocks. Locking again is only possible here.🔓 open, 🔒 locked (red)
(4) colouropens the colour picker directly; the choice is applied at oncecolour field
(5) nameclick = active layer; second click within 0.4 s = editortooltip “Name (number of elements)”
(6) line type—pattern as characters (──── · ── ── · · · · · ── · · ── ─ · ▬ ▬ ▬ · ● ● ● · ─∿─), tooltip “Line type: solid” etc.
(7) width—bar in layer colour and number (screen pixels)

The active row is highlighted in blue. Eye, lock and colour of the row act at once; every change is an undo step (Undo), a click on the row itself — the active layer — is not.

System layers

The seven rows below the list are global eyes for object types — System layers: Dimensions, Remarks, Hatches, Constraints, Images, Text, Leaders. A click on the row toggles; the status bar reports “… visible” / “… hidden”.

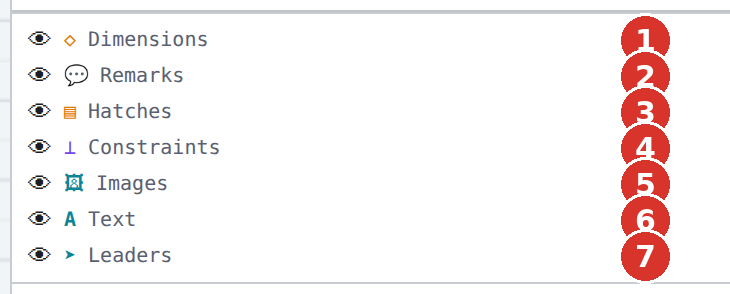

(1) Dimensions, (2) Remarks, (3) Hatches, (4) Constraints, (5) Images, (6) Text, (7) Leaders
(1) Dimensions, (2) Remarks, (3) Hatches, (4) Constraints, (5) Images, (6) Text, (7) Leaders

Undo

Every click on the eye or lock of a row, every new colour in the colour box and every collective switch (👁 and ◐ in the toolbar, the three switches of the title row) is an undo step with ●: Ctrl + Z takes back exactly this click, Ctrl + Y brings it again. For the colour box, dragging in the colour picker is one step; opening and closing without a new choice creates none. A collective switch that changes nothing — for example “Lock all layers” when all are already locked — creates no step either.

On a sheet the layers belong to the whole drawing; the step is therefore put into the history of the model. To take it back, switch to the tab “Model” and press Ctrl + Z there; on the sheet itself Ctrl + Z does not take this change back.

Not a step: the click on a layer row that makes the layer active, likewise the row “0 · Auto” and the switches of the system layers. “+ New”, “OK” in the Edit Layer dialog and “OK” in the Delete layer dialog are steps, too.
