Weld and Unweld
Purpose
A weld joins endpoints of several elements into a shared joint: if you then drag an endpoint with the grip or move an element, the joined corners stay together. When drawing with object snap such joints are created automatically (Auto-weld), with rectangle, slot and curved slot in any case (Shapes); the command Weld creates them afterwards — also across small gaps, within a tolerance. Unweld removes the joints of the selected elements again.

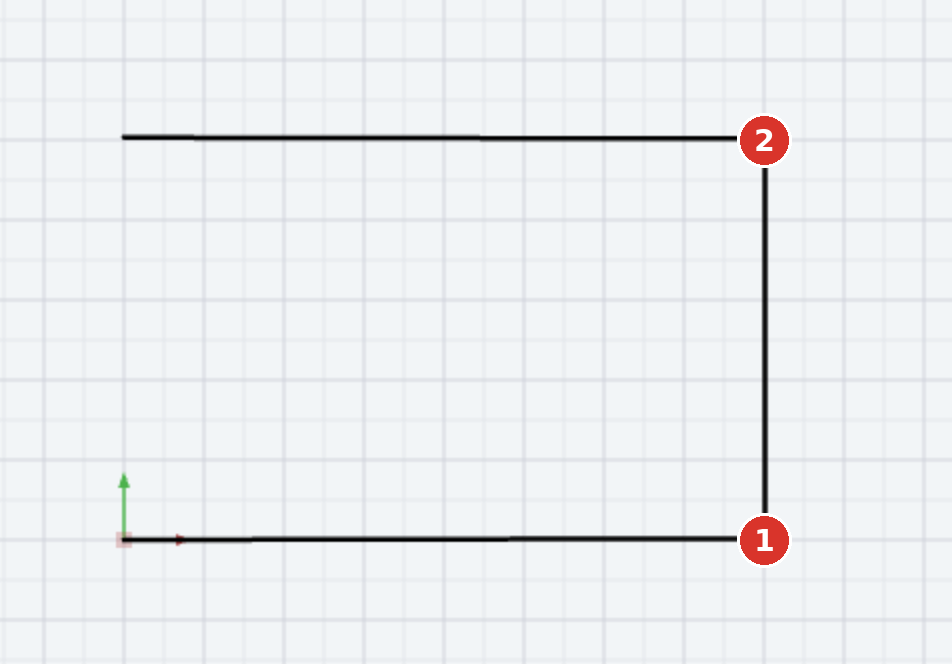

Welds can be recognized by the green diamonds at the endpoints.
Access
- Ribbon: group Constraints, split button Weld (1); the triangle opens Unweld (2) and the switch for the markers (3). At 1400 pixels width the group is collapsed — its triangle shows all tools of the group.
- Classic toolbar: group Constraints — at 1400 pixels width in the overflow menu ☰ —, family Weld with drop-down triangle.
- Command search : Weld, Unweld.
- Without a selection, post-selection begins (Weld: choose elements — Enter or right-click accepts, ESC cancels).


Weld
Weld Select elements and start the tool — it acts immediately on the selection:

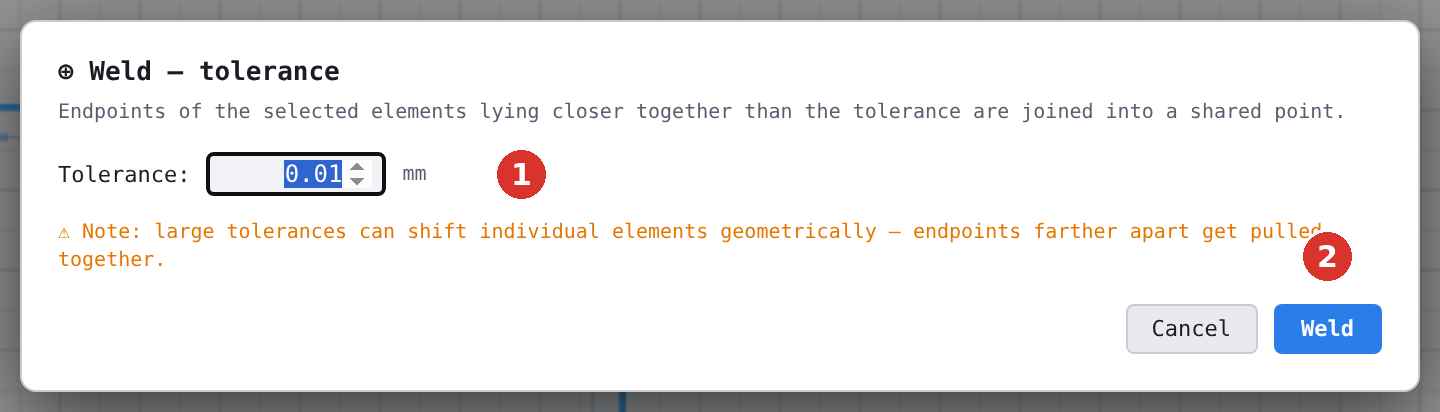

- The dialog Weld — tolerance opens. The tolerance (default 0.01 mm, afterwards the last used value) says how far apart endpoints may be at most to be joined. Below it is the tick Also add a «coincident» constraint (off by default, remembered).
- Click Weld. All endpoints of the selected elements lying closer together than the tolerance are pulled together into a shared point.
- The dialog Weld completed shows the result — how many welds were created, how many points joined and which elements had to be shifted geometrically for it.


The status line summarizes: 2 weld(s) created, 4 point(s) joined — 3 shifted. If all endpoints are farther apart than the tolerance, nothing is created (No weld within the tolerance (0.01 mm)); elements without endpoints — circles, ellipses — have nothing to weld (No weldable endpoints found).
A large tolerance shifts geometry: endpoints that should actually stay apart are pulled together. The result dialog lists every shift with its amount. If the result is not right, Ctrl + Z undoes the welding completely — joints, shifted endpoints and the constraints created by the tick. Unweld, by contrast, removes only the joints; shifted endpoints stay where they are.
Also add a «coincident» constraint
With the tick, Weld also creates the constraint Coincident for each weld of the selection: every further member is bound to the first one (three lines at one point thus get two constraints). This also applies to older welds in the selection; existing constraints are not created twice.
Unweld
Unweld Select elements and start the tool: all joints in which the selected elements take part are released — 3 weld point(s) released. The geometry stays unchanged, the diamonds disappear; the endpoints can now be dragged individually. Ctrl + Z restores the released joints. Without joints on the selection: No welds on the selection.
Showing and hiding the markers
The third entry of the family switches the green diamonds on or off drawing-wide (Weld markers shown / Weld markers hidden). The state is saved with the settings; the joints themselves remain effective in any case.
Shapes: welded while drawing
A rectangle drawn as separate lines (also Rectangle 3P and with diagonals), a slot and a curved slot weld their parts already while drawing, at every point where they touch — in the same Undo step as the shape and regardless of the checkbox Auto-weld active. With a rectangle as one element with diagonals, the ends of the diagonals are welded to its corners.
If an existing element ends in a corner or at a transition of the new shape, it is always welded as well — with the reach of auto-weld, even if auto-weld is switched off. This also applies to an element on a locked layer; moving the shape later is then refused (Welded to a fixed or locked element). Even with very small shapes every corner remains a joint of its own — corners lying close together are not merged. These joints are released like any others with Unweld.
Options and relations
- Joints act when dragging grips, when stretching and with the constraints: the solver keeps joined endpoints together.
- Trim, Break, Split and Explode pass a joint on to the new piece that ends exactly at its point; if there is none, it is dropped (as with Delete) — nothing is ever welded anew. Chamfer passes a joint at the corner on to the chamfer line. Dragging, Trim one/two elements and Chamfer pull the welded partner along; if it is fixed or locked, the two trim tools and Chamfer refuse.
- If an element is welded to a fixed element or to one on a locked layer, Move, Rotate, Scale, Stretch, the gizmo and the grips refuse as soon as the welded point would wander (Welded to a fixed or locked element — move rejected etc.); rotating and scaling about the welded point remain allowed (Locked and fixed elements).
- Copy, Array and Clipboard take joints within the selection along; Scale moves the joint points along when all participating elements are selected.
- The tolerance of the command is separate from the tolerance of auto-welding (dialog Automatic snap).
- Welds are saved with the drawing, in standard parts and blocks. They belong to their space — the model or a sheet —; Ctrl + Z and Ctrl + Y on a sheet take that sheet’s welds along.
- Create block removes the welds of the elements taken in; the status bar states their number.
Related commands
- Dialogs Weld
- Auto-weld — joints while drawing
- Constraints · Grips
