Ellipses

Purpose

An ellipse has two axes: the longer major axis and the shorter minor axis. Depending on what the construction gives you, a different route is faster — hence three tools. The result is always a single element; it can be moved, rotated and scaled like a circle.

Access

  • Ribbon: group Draw, triangle on the Circle button — entries Ellipse (5), Ellipse from centre (6) and Ellipse in rectangle (7).
  • Classic toolbar: drop-down triangle of the circle family (3).
  • Command search : Ellipse.

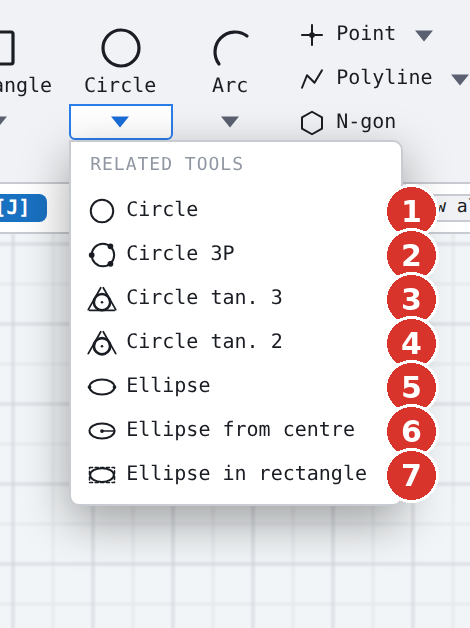

Family «Circle» with (5) Ellipse, (6) Ellipse from centre, (7) Ellipse in rectangle
Family Circle with (5) Ellipse, (6) Ellipse from centre, (7) Ellipse in rectangle

Ellipse (axis, end)

Ellipse The major axis is fixed by its two endpoints — the route when length and inclination of the axis are known:

  1. Click the first axis point (1).
  2. Click the second axis point (2) — Second axis point…. The segment determines length and inclination of the major axis.
  3. Set the half minor axis (3) — Half minor axis / point…: click beside the axis or type the value.

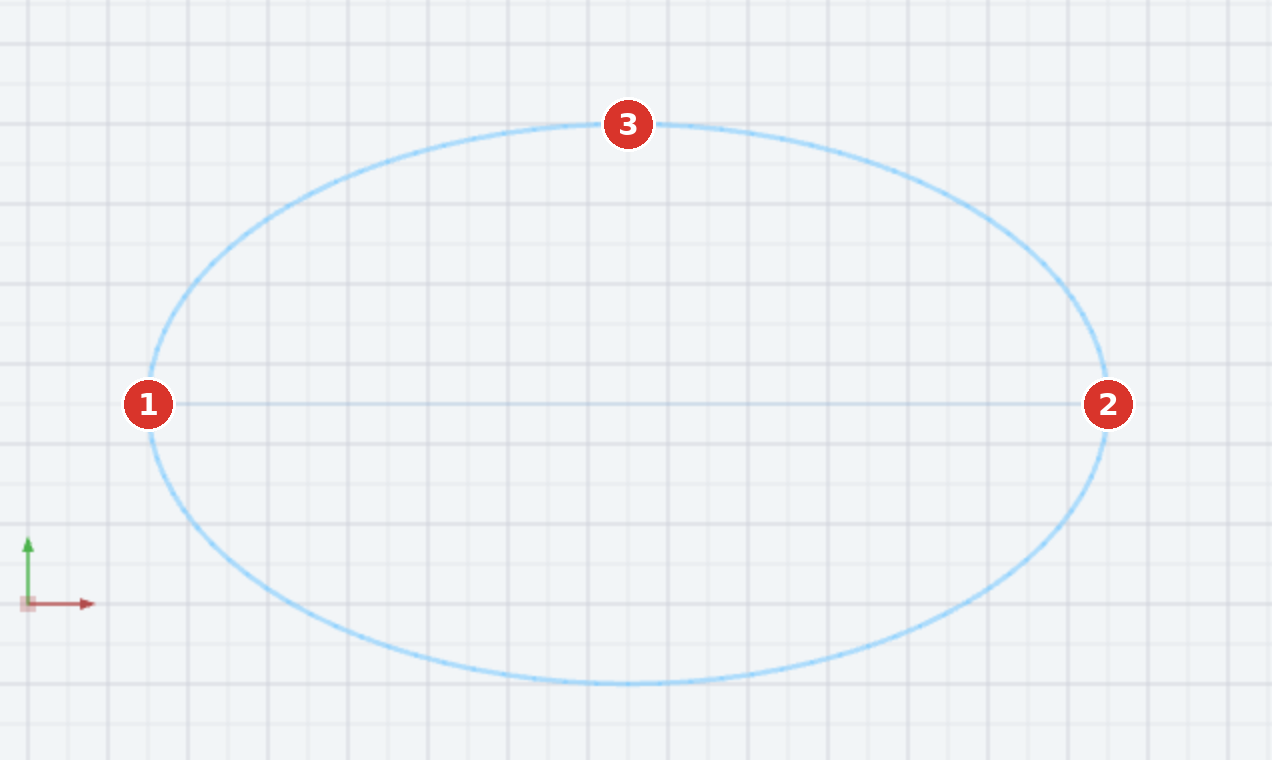

(1) and (2) the endpoints of the major axis, (3) the half minor axis
(1) and (2) the endpoints of the major axis, (3) the half minor axis

An axis that is too short is refused with Axis too short, a minor axis that is too small with Minor axis too small.

Ellipse from centre

Ellipse from centre Here you start at the centre — the route when the ellipse is to sit around a known point:

  1. Click the centre (1).
  2. Click the endpoint of the first semi-axis (2) — Axis endpoint (1st semi-axis)….
  3. Set the second semi-axis (3) — Second semi-axis / point….

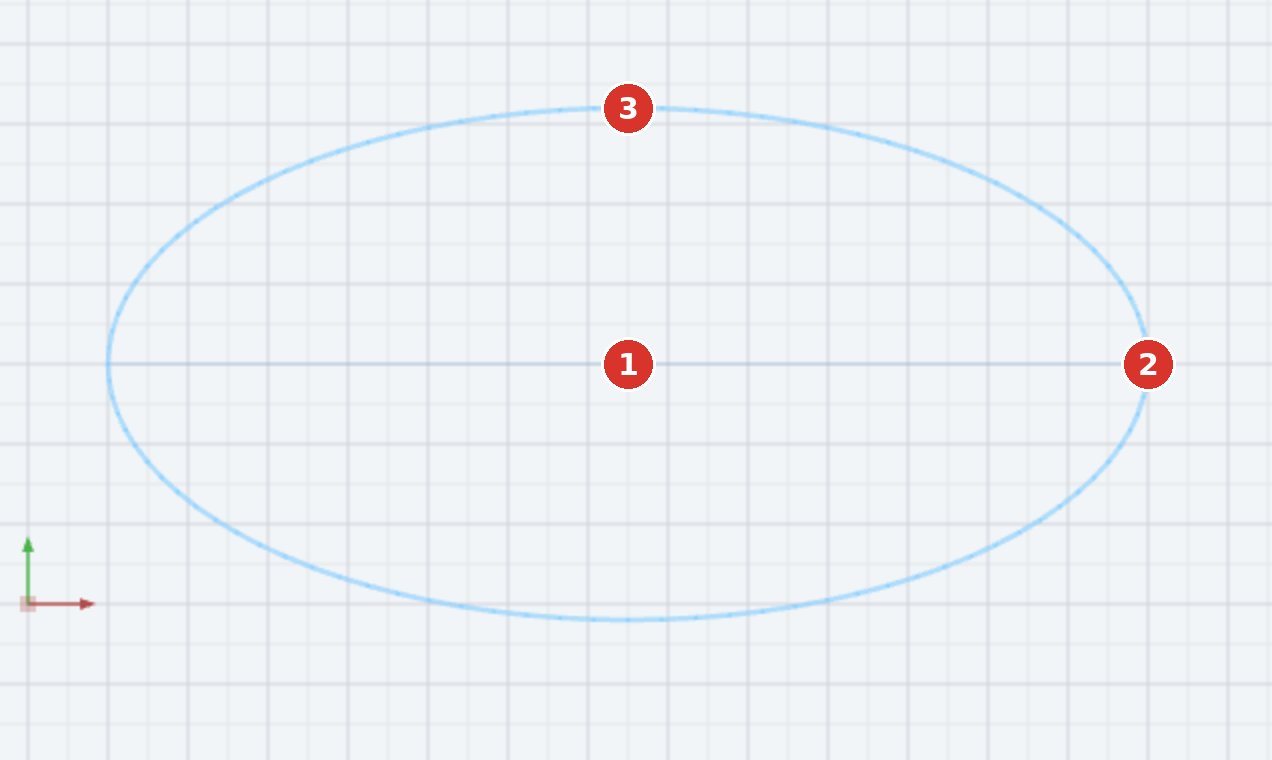

(1) centre, (2) first semi-axis, (3) second semi-axis
(1) centre, (2) first semi-axis, (3) second semi-axis

The messages Semi-axis too short and Second semi-axis too small point to values that are too small.

Ellipse in rectangle

Ellipse in rectangle Draws the ellipse inscribed in a bounding rectangle — it touches all four sides at their midpoints. Two clicks are enough:

  1. Click the first corner of the bounding rectangle (1).
  2. Click the opposite corner (2).

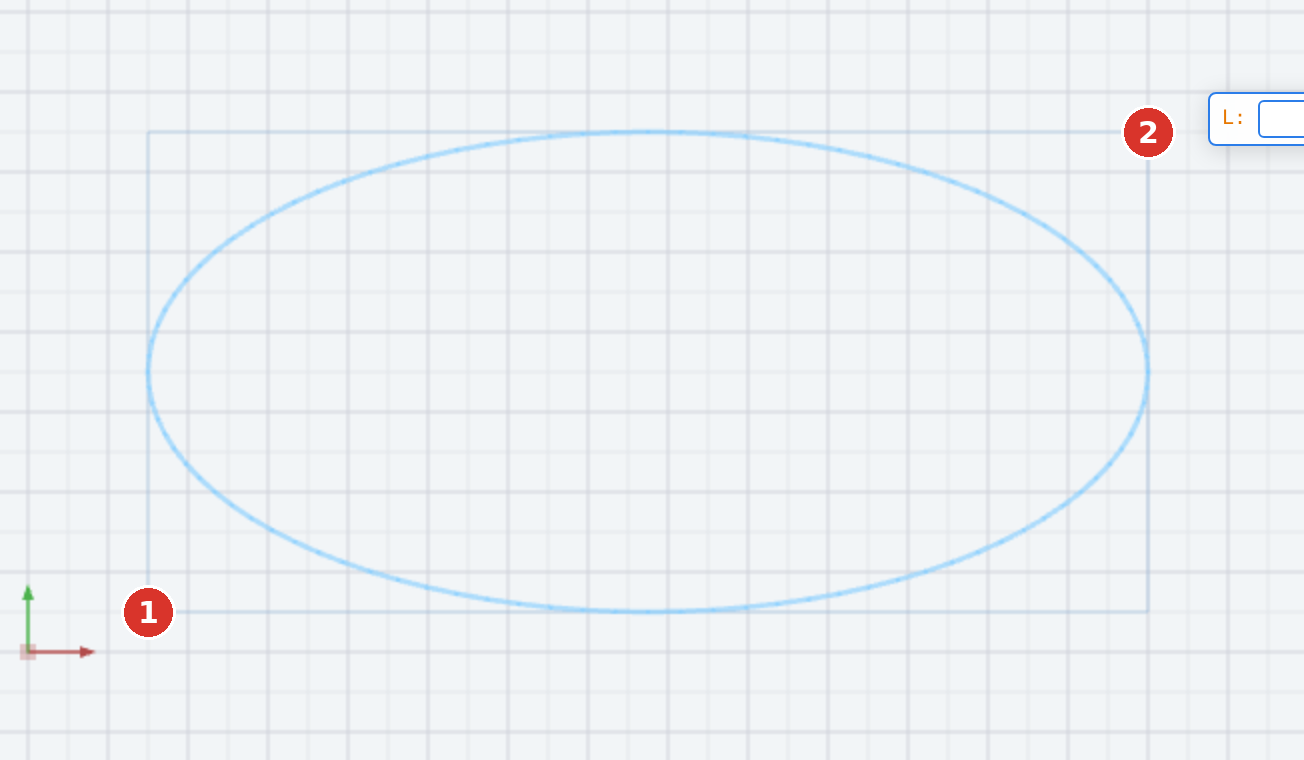

(1) and (2) the two corners of the bounding rectangle; the ellipse touches all four sides
(1) and (2) the two corners of the bounding rectangle; the ellipse touches all four sides

The bounding rectangle itself is not drawn, it only serves as input. The axes of the ellipse therefore always lie horizontally and vertically.

Options

  • All three tools draw on the active layer; pick up attribute (J) applies beforehand.
  • Object snap applies to all points; ORTHO keeps the axis horizontal or vertical.
  • Every ellipse is a separate step for Undo.
Note

The three ellipse tools show no tooltip at the pointer. The status bar shows the tool name on the left (Ellipse (axis), Ellipse (centre), Ellipse in rectangle); for Ellipse and Ellipse from centre it reports the next step after every click, for Ellipse in rectangle the input fields for width and height appear at the pointer after the first click.
