Inserting and editing standard parts
The section Standard parts in the panel on the right is the user interface of the standard part library. The placement HUD at the bottom appears as soon as a standard part or a block hangs at the mouse.

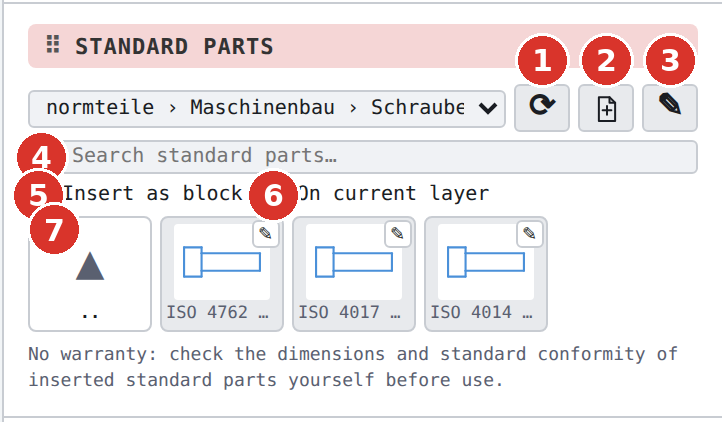

Section Standard parts
Folder path
Selection field with the open folder (normteile › Maschinenbau › Schrauben). Choosing an entry changes the folder.
⟳ Reload the list from the server
Reads the folder tree of normteile/ again (Standard part list reloaded) — after placing new files.
Insert local standard part
Insert a local standard part opens the file dialog for a standard part file from your own computer (Command).
✎ Open a local standard part for editing
Opens a standard part file as a drawing (Command). The same ✎ at the top right of every tile opens the part from the server. The standard part becomes a drawing without a file: it carries the name of the standard part, and Ctrl + S asks for a location — the file open before is not overwritten. If the file fails, the previous drawing stays unchanged. A single Ctrl + Z returns to the previous drawing.
Search standard parts …
Live search across all folders by name or folder path, several words must all occur; Esc or the small ✕ at the right inside the field clears it (the ✕ since program version v3.0.39). How many result tiles appear at once is limited by the setup value Standard part search: at most matches (Live search).
Insert as block
Inserted standard parts immediately become a block with BOM data from the file (Insert as block). Kept as a setting.
On current layer
The part lands on the active layer — the loose elements, the hatches and the content of newly created blocks, also with Insert as block; colour and width from the layer, no own line type, already in the preview. The standard part layers are not created; a block definition the drawing already has stays as it is (On current layer). Kept as a setting.
Tiles
Subfolders with folder icon, .. leads one level up, standard parts with preview image and name (tooltip: full name and path). Click: attach to the mouse. ✎: open for editing. For search hits: right-click opens the folder. Empty folder: This folder is empty. If the operator requires registration and no start link is valid for more than 20 more days, click and ✎ show the window 🔒 Not unlocked; the folders can still be browsed (Registration).
If inserting a part fails, the drawing stays unchanged and the status bar reports in red “…” not inserted — drawing unchanged (reason). If the part carries unreadable values, they are cleaned up and the message begins in red with ⚠ n damaged entries cleaned up · …. A part at the mouse survives Open… and New drawing and then lands in the new drawing. Ctrl + Z takes back an inserted part together with the blocks and layers it brought, as far as they are not used anywhere else.
Disclaimer
Short version under the list; the detailed version is in the info window ℹ (Disclaimer).

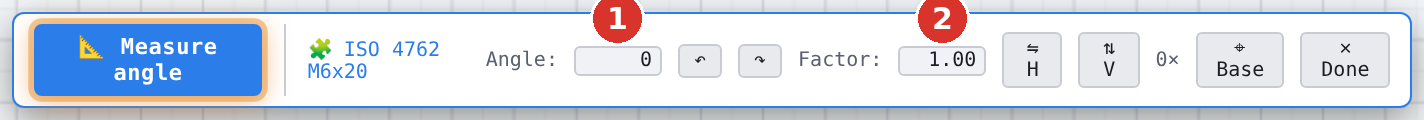

Placement HUD

📐 Measure angle
Click two points in the drawing with snap; the measured direction angle is taken as rotation angle. Esc cancels.
Name
Name of the part or block hanging at the mouse.
Angle
Rotation angle in degrees, directly editable. Buttons ↶ ↷ rotate by ±90° (R / Shift+R); Ctrl+wheel 1°, Ctrl+Shift+wheel 5°.
Factor
Scale factor, directly editable; + / − in steps, Alt+wheel in steps, Alt+Shift+wheel step 1.
H, V
Mirror horizontally (H) and vertically (V); an active switch is highlighted.
n×
Number of parts already placed in this operation.
⌖ Base
Reset the insertion point (B): the orange preview freezes, then click a snap point of the part — it becomes the new grip at the mouse.
✕ Done
End placing (Esc or right-click), status line Placement finished — n standard part(s) inserted.
Keys while placing
| Key | Effect |
|---|---|
| click | place the part, the tool stays active |
| R / Shift+R | rotate +90° / −90° |
| H / V | mirror horizontally / vertically |
| + / − | larger / smaller |
| B | reset the base point |
| Ctrl+wheel, Ctrl+Shift+wheel | angle 1° / 5° |
| Alt+wheel, Alt+Shift+wheel | factor in steps / step 1 |
| Esc / right-click | finish |
| snap keys F E M S Z … | snap for the base point |
While the cursor is in the field Angle or Factor, a letter key without Ctrl or Alt acts as if the field had no focus — snap mode, R, H, V, B and the tool keys as well — and does not land in the field; the cursor stays in the field. Digits, comma, point, arithmetic signs, Enter, Esc, Ctrl + A/C/V/X/Z and AltGr remain with the field.
The hint at the mouse shows angle and factor: Ctrl+mouse wheel: angle ±1° · 0.0°, below it Alt+mouse wheel: factor ±0.1 · 1.00 (step from the setting Scale step Alt+wheel) and [B] set new base point. Typed values appear there at once.
