Block manager
Purpose
Opens the window Block manager with all block definitions of the drawing as a tree: nesting, count in the drawing (over the model and all sheets), parts list marks, eye, search and the actions Insert, Show, Edit, BOM data, Replace, Rename, Export and Delete. The window field by field: Dialog Block manager.
Access

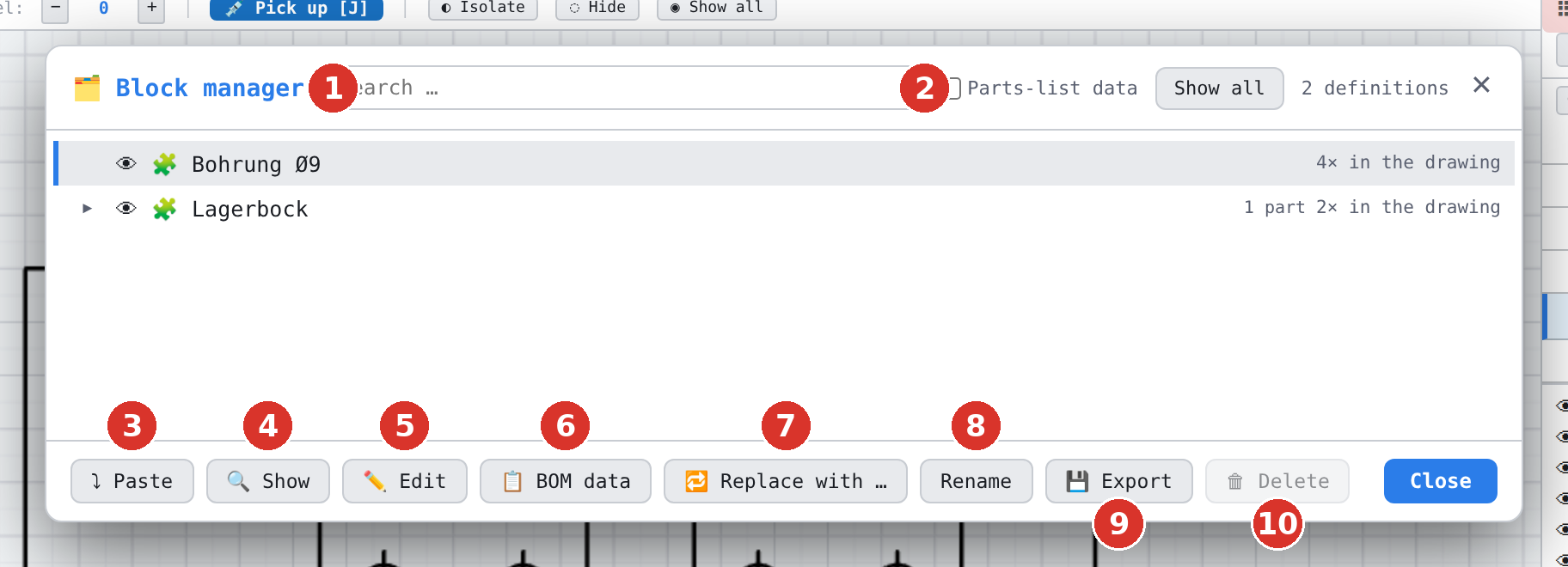

- Panel Blocks: button 🗂️ Block manager (4 in the picture at Blocks).
- Double-click on a block instance in the drawing — the window opens with this block selected and unfolded. Exception: a double-click on a live parts list opens the window Edit parts list.
- Right-click on a selected instance → 🗂️ Block manager… (5 in the picture at Edit block).
- Command search : type Block manager.
The command has no button in the ribbon or the classic toolbar; the block commands live in the section Blocks of the panel on the right, in the right-click menu and in the command search.

Procedure
The window floats freely over the drawing — the drawing stays operable, the window can be moved by its title and remembers its position. Clicking a row selects the block and highlights its instances in the drawing; then choose an action at the bottom. It is closed only with Close or ✕; Esc still belongs to the canvas.
- All areas: n× in the drawing counts the insertions in the model and on all sheets. Clean up deletes only definitions that are not used anywhere and is a single undo step.
- On a sheet Delete and Clean up lie in the history of the model; the message says so: To restore: tab “Model”, then Ctrl+Z.
- In the block editor Delete and Clean up are locked: Block definitions cannot be deleted in the block editor — …
- An open window follows the drawing: after Open…, New drawing and Undo it shows that drawing's blocks.
- For a live parts list, Edit and BOM data report in red — you change its cells in the window Edit parts list.
Related commands
- Create block from selection, Load block — new definitions
- Show parts list — the parts list of all instances
