Rectangular and polar array
Purpose
An array multiplies the selected elements at regular spacing — the tools for hole rows, bolt circles and ribs:
- Array (rectangular) arranges copies in a grid of rows and columns with the spacings dX and dY; the original stays in place and forms the corner of the grid.
- Polar array distributes copies on a circle around a centre: N elements over a total angle (360° = full circle), optionally with self-rotation (each copy turns along) or without (each copy keeps its orientation).
The elements are copied with dimensions, hatches and welds of the selection.
Access
- Ribbon: group Modify, split button Array (4) — head of the family is the rectangular array; the triangle opens Polar array.
- Classic toolbar: group Edit, family Array with drop-down triangle (3).
- Command search : Array.
- Without a selection, post-selection begins.

Rectangular array
Array (rectangular) Select elements, start the tool, then:

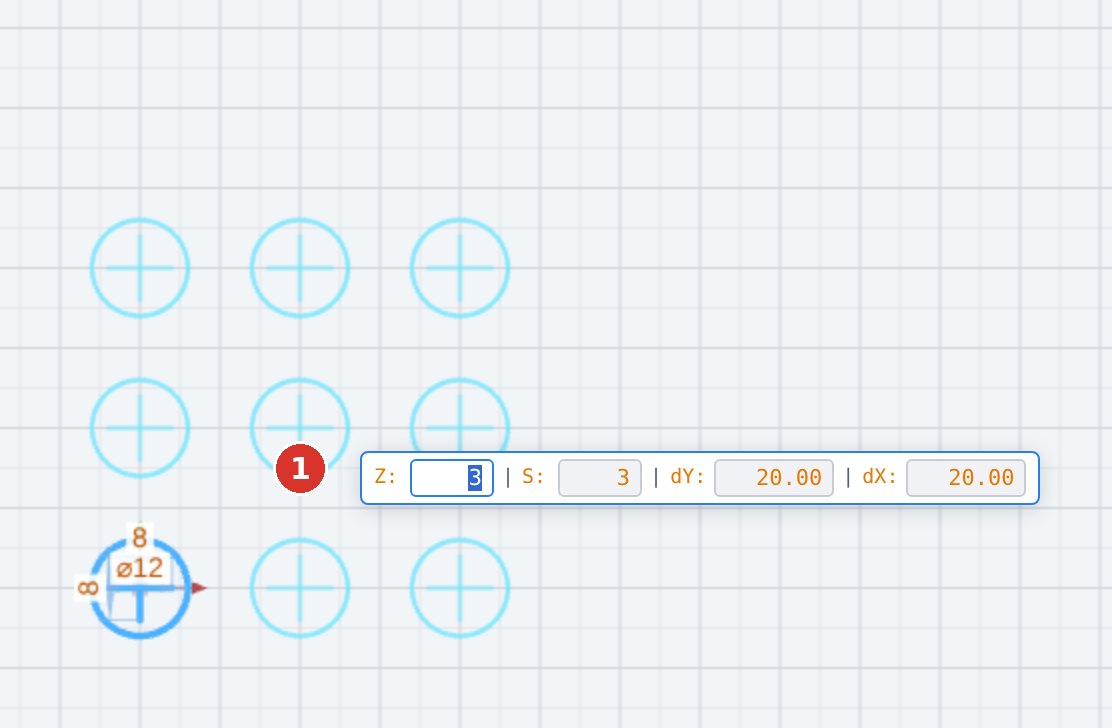

- Click in the drawing area (1) — the click opens the floating field with Rows and Cols (Z and S in the German interface), dY and dX; the status line reports Array (rectangular): enter rows × columns × dX × dY → Enter. The preview shows the grid with the current values.
- Change the values — Tab switches the field — and accept with Enter; a click in the drawing area accepts the values as well. The field refuses an invalid number with a red message (Invalid numbers).

Positive dX run to the right, positive dY upwards; negative values mirror the direction. The status line confirms Array 3×3: 24 element copies created. At least 2 rows or 2 columns are needed (Array: at least 2 rows or 2 columns). The tool remembers rows, columns and spacings for the next call.
Polar array
Polar array Select elements, start the tool, then:

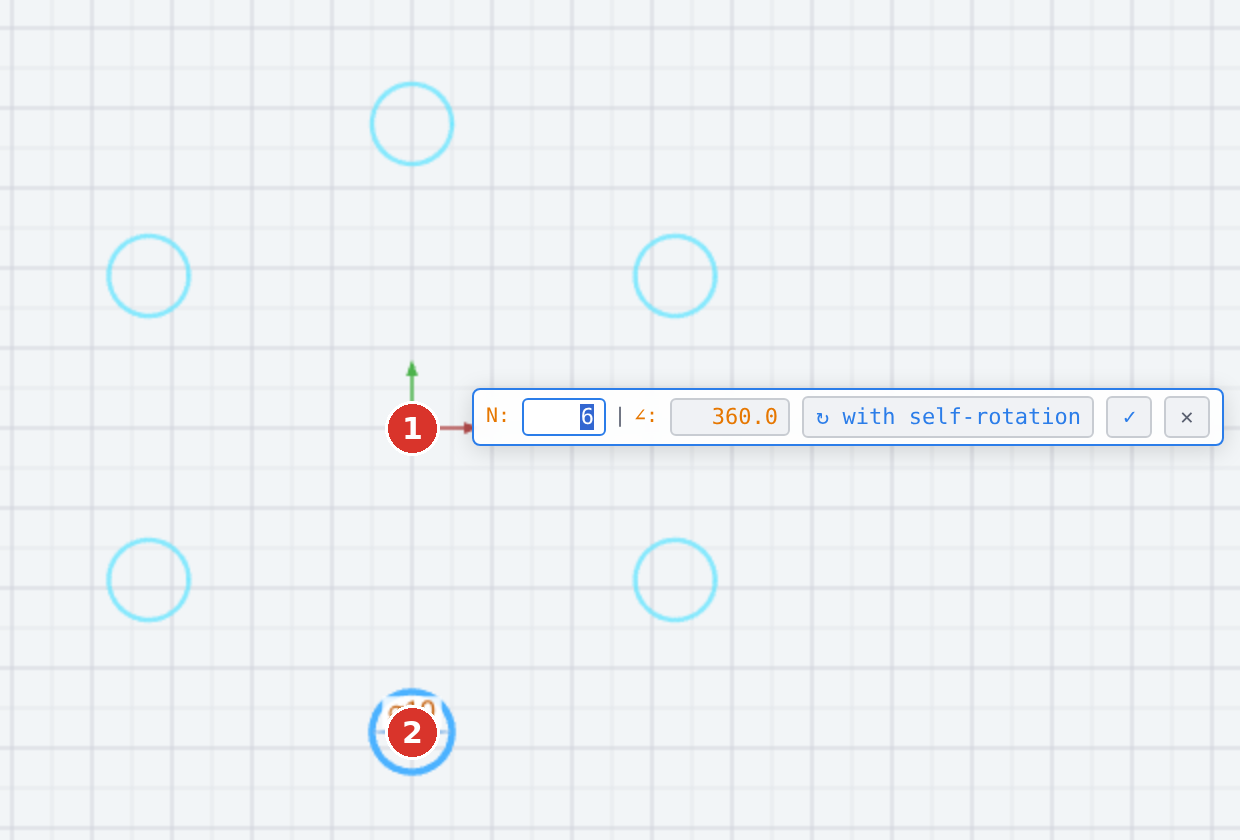

- Click the centre (1) — with snap, e.g. the centre of a hub. The field with N (count) and ∠ (total angle) appears, the status line reports Polar array: enter count + angle → Enter; the preview shows the copies on the circle through the original (2).
- Enter count and angle; the button ↻ with self-rotation / ⇉ without self-rotation toggles whether the copies turn along the circle. Enter or a click accepts.

The count N includes the original: N = 6 over 360° gives five copies 60° apart. A total angle smaller than 360° distributes the elements over an arc — original and copies spread evenly, the last copy at the end of the angle. The status line confirms Polar array: 5 element copies around (x, y); N = 1 is rejected (Polar array: at least 2 elements). Count, angle and self-rotation are remembered for the next call.
Options and relations
- The copies are independent elements — neither a group nor a block. If they should belong together, group them afterwards, or make the original a block beforehand.
- The whole array is one step for Undo.
- Points evenly along an element are set by Distribute points.
- For an array with dimensions create them beforehand — they are copied along.
Limit of 20,000 objects
An array creates at most 20,000 objects. What is counted is what gets created: copies × elements of the selection, a block reference with its whole content, plus dimensions and hatches. A single copy of the selection is always possible, even if it alone contains more.
If the limit is exceeded, the tool creates no copy; the status bar reports in red Array: too many copies (n objects) — at most m or Polar array: too many copies (n objects) — at most m. The refused value is not remembered as the default for the next call. If the preview alone would need more than 20,000 drawing steps (a circle or arc counts like 16 lines), it is left out; the array itself is still created as long as it stays below the limit.
