Modify

What modifying covers

The modification tools work on existing geometry: they shorten and extend elements, move, copy, rotate, mirror and scale a selection, create arrays and parallel contours, fillet and chamfer corners, break up compound elements and join endpoints permanently. This section describes what applies to all modification tools; the individual commands are in the command reference.

The basics — clicking elements, rubber band, gizmo, grips, deleting — are under Selecting and modifying.

The group Modify

In the ribbon the tools are in the group Modify: three split buttons with a triangle for the families Trim , Mirror and Offset , next to them Array (a family as well), Fillet , Chamfer , Stretch and Explode .

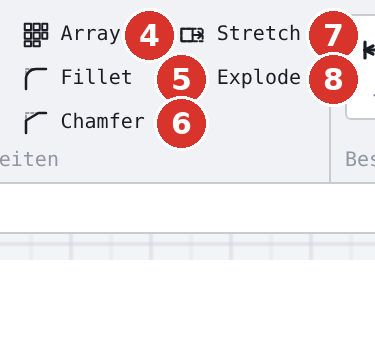

Ribbon, group «Modify»: (1) Trim, (2) Mirror, (3) Offset — each with a triangle —, (4) Array, (5) Fillet, (6) Chamfer, (7) Stretch, (8) Explode
Ribbon, group «Modify»: (1) Trim, (2) Mirror, (3) Offset — each with a triangle —, (4) Array, (5) Fillet, (6) Chamfer, (7) Stretch, (8) Explode — left halfleft half
Ribbon, group «Modify»: (1) Trim, (2) Mirror, (3) Offset — each with a triangle —, (4) Array, (5) Fillet, (6) Chamfer, (7) Stretch, (8) Explode — right halfright half
Ribbon, group Modify: (1) Trim, (2) Mirror, (3) Offset — each with a triangle —, (4) Array, (5) Fillet, (6) Chamfer, (7) Stretch, (8) Explode
FamilyTools
Trim Trim · Break · Split · Trim one element · Trim two elements
Mirror Mirror · Rotate · Move · Copy · Scale
Array Array (rectangular) · Polar array
Offset Offset · CAM offset
Weld Weld · Unweld · switch for the weld markers

If the window is narrower, the ribbon collapses groups — in the English interface at 1400 pixels width Annotate, Constraints and Actions, in the German one also Modify. A collapsed group shows a single icon with a triangle; the triangle opens a list of all tools of the group, separated by family.

Collapsed group «Modify»: (1) triangle of the group, (2) list with all tools from Trim to Explode
Collapsed group Modify (narrow window): (1) triangle of the group, (2) list with all tools from Trim to Explode

The family Weld belongs to the group Constraints. When the group is open, the triangle below Weld opens the family; when it is collapsed, Weld, Unweld and the marker switch are in the group's list.

Family «Weld» in the ribbon: (1) Weld, (2) Unweld, (3) weld markers on/off
Family Weld in the group Constraints: (1) Weld, (2) Unweld, (3) weld markers on/off

A click on a family's triangle shows the list under the heading RELATED TOOLS:

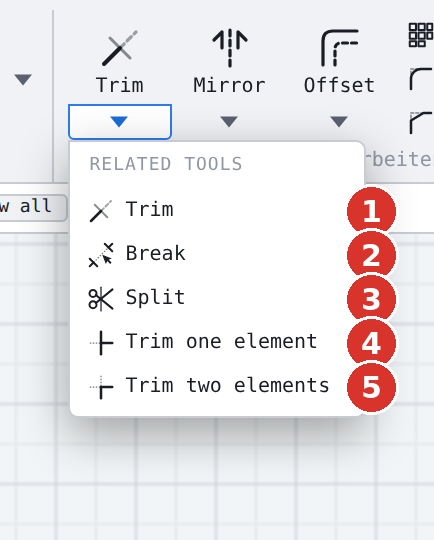

Family «Trim»: (1) Trim, (2) Break, (3) Split, (4) Trim one element, (5) Trim two elements
Family Trim: (1) Trim, (2) Break, (3) Split, (4) Trim one element, (5) Trim two elements

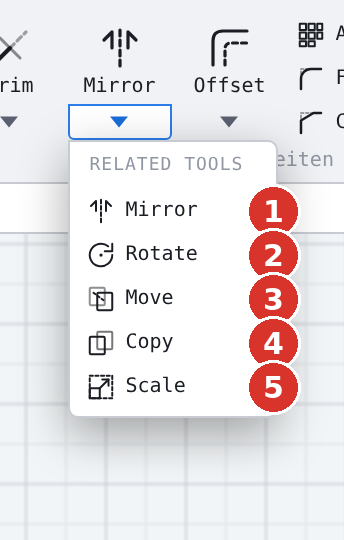

Family «Mirror»: (1) Mirror, (2) Rotate, (3) Move, (4) Copy, (5) Scale
Family Mirror: (1) Mirror, (2) Rotate, (3) Move, (4) Copy, (5) Scale

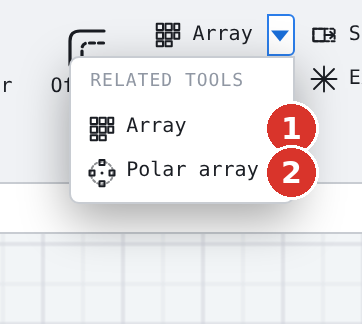

Family «Array»: (1) Array (rectangular), (2) Polar array
Family Array: (1) Array (rectangular), (2) Polar array
Family «Offset»: (1) Offset, (2) CAM offset
Family Offset: (1) Offset, (2) CAM offset

In the classic toolbar the same tools form the group Edit with four drop-down triangles; the group Constraints with the family Weld sits in the overflow menu ☰ at 1400 pixels width (depending on the width). There the group Add-on tools comes first, followed by File & Import/Export and Constraints.

Classic toolbar, group «Edit»: (1) Trim, (2) Mirror, (3) Array, (4) Offset with drop-down triangles, (5) Stretch, (6) Fillet, (7) Chamfer, (8) Explode
Classic toolbar, group «Edit»: (1) Trim, (2) Mirror, (3) Array, (4) Offset with drop-down triangles, (5) Stretch, (6) Fillet, (7) Chamfer, (8) Explode — left halfleft half
Classic toolbar, group «Edit»: (1) Trim, (2) Mirror, (3) Array, (4) Offset with drop-down triangles, (5) Stretch, (6) Fillet, (7) Chamfer, (8) Explode — right halfright half
Classic toolbar, group Edit: (1) Trim, (2) Mirror, (3) Array, (4) Offset with drop-down triangles, (5) Stretch, (6) Fillet, (7) Chamfer, (8) Explode

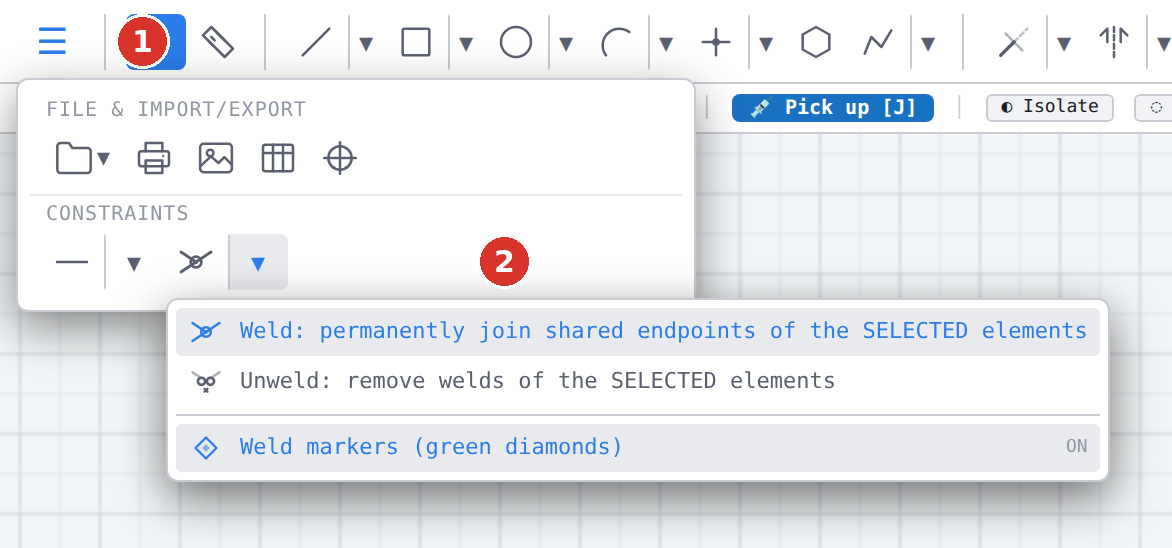

Overflow menu «☰» (1) with the groups «Add-on tools», «File & Import/Export» and «Constraints»; the triangle (2) opens Weld, Unweld and the marker switch
Overflow menu ☰ (1) with the groups Add-on tools, File & Import/Export and Constraints; the triangle (2) opens Weld, Unweld and the marker switch
Note

If a family button does not show the expected tool, the option Remember variant in the gear window is on: the button then carries the last used tool of the family (Settings).

Every tool can also be started via the command search (category Modify) and via the tool window, section Edit. The clipboard commands Cut, Copy and Paste have no button — they are on Ctrl + X, Ctrl + C, Ctrl + V, in the right-click menu and in the command search (Clipboard).

Pre-selection and post-selection

The tools that work on a whole selection — Mirror, Rotate, Move, Copy, Scale, both arrays, Weld, Unweld and Explode — prefer a pre-selection: you choose the elements first (Select), then start the tool.

If you start such a tool without a selection, post-selection begins: below the header a bar appears with the name of the command and the number of chosen objects; the status line reports Mirror: choose elements — Enter or right-click accepts, ESC cancels. You now choose as usual — individually, with Shift + click or with the rubber band — and confirm with Enter, right-click or Accept. The tool then continues exactly where it would stand with a pre-selection, and the status line names the next click (Mirror: click the first point of the mirror axis).

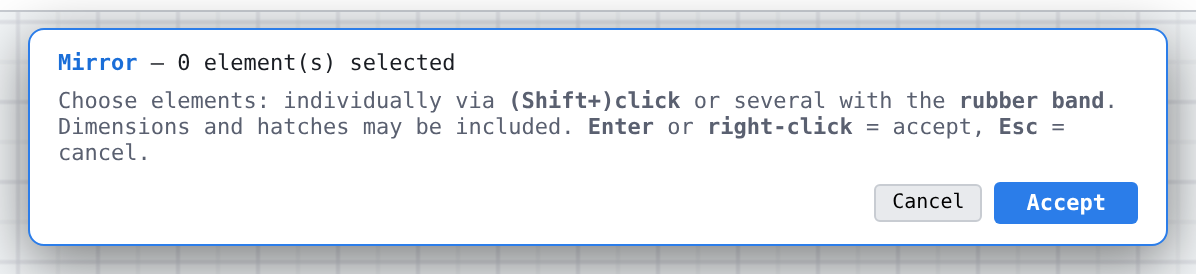

The post-selection bar: command, number of chosen objects, «Cancel» and «Accept»
The post-selection bar: command, number of chosen objects, Cancel and Accept

Without a chosen object the post-selection cannot be completed (Please choose at least one element — ESC cancels); Esc or Cancel ends it and reports, for example, Mirror cancelled.

The remaining tools — Trim, Break, Split, Trim one/two elements, Offset, CAM offset, Stretch, Fillet, Chamfer — need no selection: you click the elements within the procedure. They do not hit invisible elements (hidden layer, Z level, group); a click on a locked element shows the lock hint. Explode from the Tools window without a selection chooses the tool like the button; after exploding a selection the tool returns to Select.

What travels along

Move, Copy, Rotate, Mirror and Scale take along what belongs to the selection:

  • Dimensions attached to a selected element follow automatically; free dimensions travel along when they are included in the selection (Rotate, Move and Copy also accept selections consisting only of dimensions).
  • Hatches travel along when they are selected or lie within the selection; their boundaries are recomputed after the operation.
  • Welds and constraints come along with copies; when rotating and scaling, the constraints of the selection are removed because they might no longer hold. A rotated rectangle becomes a polyline but stays the same element: group, welds at the corners and bound annotations are kept.
  • If you move only part of a welded shape — for instance one side of a rectangle drawn as lines, which is welded while drawing —, the joined corners drag the connected parts along; separate them with Unweld (Shapes).
  • Mirror and Copy take each hatch exactly once — even if the mirror axis runs through the selection or the offset is small.
  • Fixed elements (constraint Fixed) stay in place when moving; an element welded to a fixed or locked element is not moved, rotated or scaled if the welded point would wander (see Locked and fixed elements).

Mirror creates copies — the originals stay. What exactly came along is reported by the status line, e.g. 3 copied (2x), 1 hatch(es).

Breaking up without loss

The tools that break an element into pieces or shorten it — Explode, Trim, Break and Split, Trim one / two elements and Chamfer — pass on what is attached to the element:

  • Dimensions go over to the matching piece. A length dimension across a gap stays as a point-to-point dimension between the outer ends (same value, same position); if only one end is cut away, it measures the remaining piece. A point dimension at a removed end stays fixed at the old position. If the value of a driving dimension changes, it becomes driven (with a message). Dimensions through a viewport on the sheets follow as well.
  • Annotations (leader, note, datum, feature control frame) stay where they are and attach to the piece below; the group takes up the pieces.
  • Welds go over to the piece that ends at their point; if there is none, they are dropped as with Delete.
  • Constraints: Explode and Split remove the constraints of the broken-up element (with a message). Trim and Break transfer them to the pieces; only a point binding (Coincident) at a removed point is dropped with a message. When breaking in the middle, Horizontal, Vertical, Parallel, Perpendicular, Collinear and Concentric go to both pieces, Tangent to the piece with the point of contact, Equal is dropped with a message.
  • Ctrl+Z and Ctrl+Y also restore the re-attached dimensions and annotations on the sheets; what you changed on the sheet in between stays.

Details are on the command pages; for dimensions see Dimensioning.

Locked and fixed elements

No tool changes elements on a locked layer or in a locked group. A click on such an element shows a hint with a padlock at the click position: it names the layer or the group; a click on the padlock unlocks it. The hint disappears with the next click or Esc. Locking again is done in the Layers and Groups panels.

Tool «Trim», click on a circle on the locked layer «Bohrungen»: (1) click position, (2) hint «Selection locked», (3) padlock to unlock
Tool Trim, click on a circle on the locked layer Bohrungen: (1) click position, (2) hint Selection locked — click the padlock to unlock:, (3) padlock to unlock

Elements with the constraint Fixed are not changed: Break, Trim, Trim one/two elements and Chamfer refuse a fixed element that would change with a red message (for example Element is fixed — trim refused); likewise when a fixed or locked partner hangs at a moved point (Connected element is fixed or locked — trim refused). A refused operation creates no undo step. The constraint solver never moves elements on locked layers either.

The same applies to welds: if an element is welded to a fixed element or to one on a locked layer (when moving, also bound by Coincident), Move, Rotate, Scale, Stretch, the gizmo and the grips refuse as soon as the welded point would wander — red message, for example Welded to a fixed or locked element — move rejected; nothing changes and no undo step is created. Rotating and scaling about the welded point remain allowed; a free partner follows as usual. A grip or the gizmo in point mode on a fixed element reports Element is fixed — move refused; likewise Move and the gizmo when the selection consists only of fixed elements. With a mixed selection the fixed elements stay in place and the rest moves. A locked element that merely lies at the same point is not dragged along by a grip.

Floating input fields

As soon as a tool needs a value, the floating input field appears at the pointer: dX/dY for Move, Copy and Stretch, ∠ for Rotate, factor for Scale, R/C/dY/dX for the array, N/∠ for the polar array, D for Offset, R for Fillet, D1/D2 or ∠/D for Chamfer. You can click or type: Tab switches between the fields, Enter accepts, Esc cancels. The mouse pointer provides the preview; a click accepts the value of the current mouse position, a typed value takes precedence. The tools remember their last values (rows and columns of the array, chamfer distances, offset distance).

If a typed value is not valid — unreadable, infinite or larger than 1,000,000,000,000 in magnitude —, the program refuses it with a red message (Not a valid number: … or Number too large: …); nothing changes, the field stays open and the tool keeps running. Expressions such as 5*2 and a comma instead of the point are allowed. The fields do not accept exponent notation — type 1000000 instead of 1e6. Even while the focus is in the field, Ctrl + N, Ctrl + O, Ctrl + S and Ctrl + Shift + S work as usual.

An array creates at most 20,000 objects (copies times elements including block contents, dimensions and hatches); a single copy of the selection is always possible. Above that the status bar reports in red Array: too many copies (n objects) — at most m and copies nothing; the refused value does not become the default.

The object snap guides every click on base and target points; K opens the coordinate input.

Undo

Every modification command is one step for Undo (Ctrl + Z) — even an array with many copies or a cut. When copying repeatedly, each placed copy counts individually. A refused operation (fixed, locked, invalid number, The elements already meet at the intersection, Explode without result) creates no step. When Ctrl+Z undoes a break-up in the model, it also restores the dimensions and annotations on the sheets that the break-up had re-attached.

Weld and Unweld are one step each as well: Ctrl + Z undoes the welding completely — joints, shifted endpoints and a Coincident constraint created with it — or restores released joints. If nothing changes, no step is created.

Gizmo instead of tool

Small moves, rotations and scalings of a selection can also be done with the gizmo: drag the grips on the axis cross, or enter values in the gizmo window. The tools of this group are the way for base and target point with snap, for copies and arrays.

As long as the mouse button is held while dragging the gizmo, everything selected stays visible at its old place — including texts, dimension texts, remarks, balloons, datums, tolerance frames, images and the texts of blocks; the highlight shows the new position. Only releasing the button removes the old place. The same applies to the grips until they are put down. A single selected circle gets the gizmo point at its centre, and a click on the gizmo without dragging changes nothing and adds no undo step (Gizmo).

Display while modifying

The status line names at every step what is expected and finally what happened; all messages are under Messages when modifying. A tooltip at the mouse pointer shows tool name and step.
