Print dialog
Overview
The dialog is a floating window that can be dragged by its title bar “🖨 Print”. It stays open while you place the print area; ✕ and “Close” end it (“Ready”).
The note line in paper space
On a sheet the top line reads “Paper space: Layout 1 — A4 Landscape — Sheet prints 1:1, scale per viewport”; paper, orientation, scale and margins are greyed out because the sheet defines them.
(1) Paper
A4, A3, A2, A1, A0, Letter or Legal.
(2) Orientation
“Landscape” or “Portrait”; keys Q and H.
(3) Scale
Two fields “A : B” in steps of 0.5 (0.5 minimum). 1:2 prints at half size, 2:1 at double size. Ctrl + wheel changes B in 10 % steps and writes the value into the field.
(4) Margins (mm) — per side
Four fields for top, bottom, left and right (0–80, default 10). They limit the printable area and carry the frame from (5).
(5) Switches
| Switch | Default | Effect |
|---|---|---|
| B/W | off | geometry in black, images in grayscale |
| Frame | on | rectangle 0.3 mm on the inner margin |
| 🖼 Images | on | print inserted images |
| 💬 Remarks | off | print remarks (design review) |

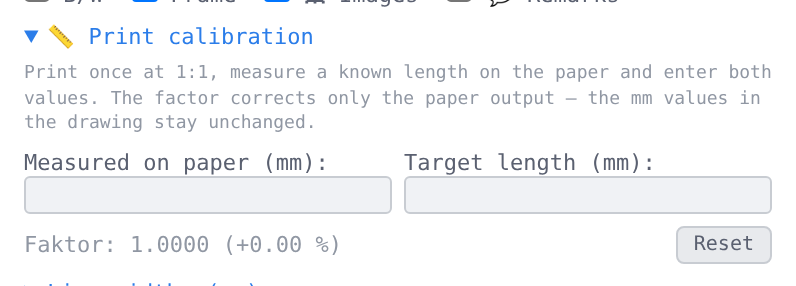

(6) Print calibration
Expandable. “Measured on paper (mm)” and “Target length (mm)” give the factor that scales the paper output only; the display shows the factor and the deviation in percent, in orange from 10 %. “Reset” restores 1.0000.
(7) Line widths (mm)
Expandable; controls width and color in the printout.
(1) Profile list
“— choose profile —” frees the layer rows; “From drawing” (default) prints each element’s original attributes and disables the rows below; a saved profile name sets every value at once (“Print profile "Workshop" activated”).
(2) 💾 and 🗑
💾 saves the current values under a name (prompt asking for a profile name); an existing name is updated. 🗑 deletes the chosen profile after a confirmation. Matching runs via the layer name (Print profiles).
(3) Layer rows
Per layer a color field (click opens the color picker for the print color) and a number field for the width in mm. Pre-filled from the layer’s “Printer line width (mm)” (Edit layer).
(4) ◇ Dimensions and (5) ▤ Hatches
Two collective values in mm: dimension and extension lines (equally thick per ISO/DIN, typically 0.25 mm) and hatch lines (typically 0.1–0.25 mm). Arrow length and dimension text height come from the dimension settings and are not listed here.
(8) Key hints
“Mouse wheel = zoom · Ctrl+wheel = scale · H/Q = portrait/landscape”.
(9) Close and Print
“Close” ends print mode, “🖨 Print” builds the page and opens the print window.
