Dialog Import drawing

The dialog appears after the file selection in the command Import drawing. There is no Esc here; Cancel closes without effect.

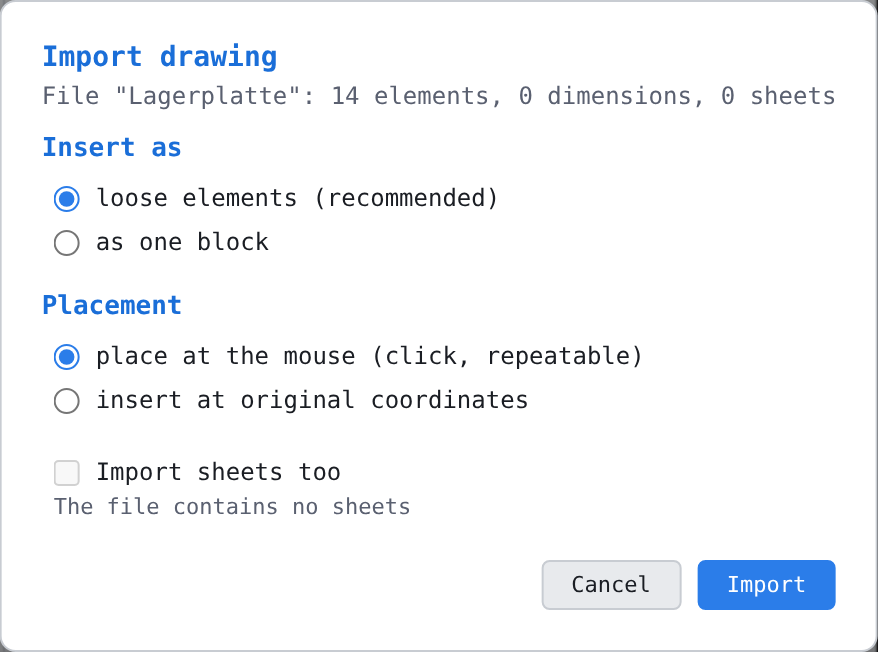

The dialog for a file with 14 elements
The dialog for a file with 14 elements

Header line

File "Name": n elements, m dimensions, k sheets — what the chosen file contains. The name is the file name without extension; it becomes the block name if inserted as a block.

Insertion form

  • loose elements (recommended): the elements come individually into the drawing, dimensions and hatches along; they stay individually editable.
  • as one block: the content becomes a block definition, in the drawing stands one instance (Blocks). Several placed copies share the definition.

Placement

  • place at the mouse (click, several times possible): the content hangs in orange at the pointer; every click puts it down, Esc ends. Rotating, mirroring and scaling as with a standard part (Placing HUD). Content at the mouse survives Open… and New drawing and then lands in the new drawing. In the block editor content that contains the block being edited is refused.
  • insert at original coordinates: the content lands immediately where it lay in the source file.

Import sheets as well

Takes over the sheets of the paper space of the source file. Selectable only if the file contains sheets and loose elements with at original coordinates is chosen; otherwise the checkbox is locked and below it stands Only selectable with "at original coordinates" and "loose elements" or The file contains no sheets.

Cancel, Import

Cancel closes without change. Import executes; if the file contains no geometry, the status bar reports The file contains no importable geometry. The import is one step for Undo: Ctrl + Z also takes back the blocks, layers and BOM fields brought along, as far as they are not used anywhere else; Ctrl + Y brings everything back.

If the file carries unreadable values, they are cleaned up and the message begins in red with ⚠ n damaged entries cleaned up · …. If inserting fails, the drawing stays as it was and the status bar reports in red “…” not inserted — drawing unchanged (reason).
