“Properties” panel
The “Properties” section shows and changes the values of the current selection. Without a selection it says “No element selected”.

Depending on the selection one of four branches appears: one element, several elements, dimensions only (attribute panel) or hatches only (hatch “Properties” panel). A double-click on a hatch selects it, expands the section and scrolls it into view.

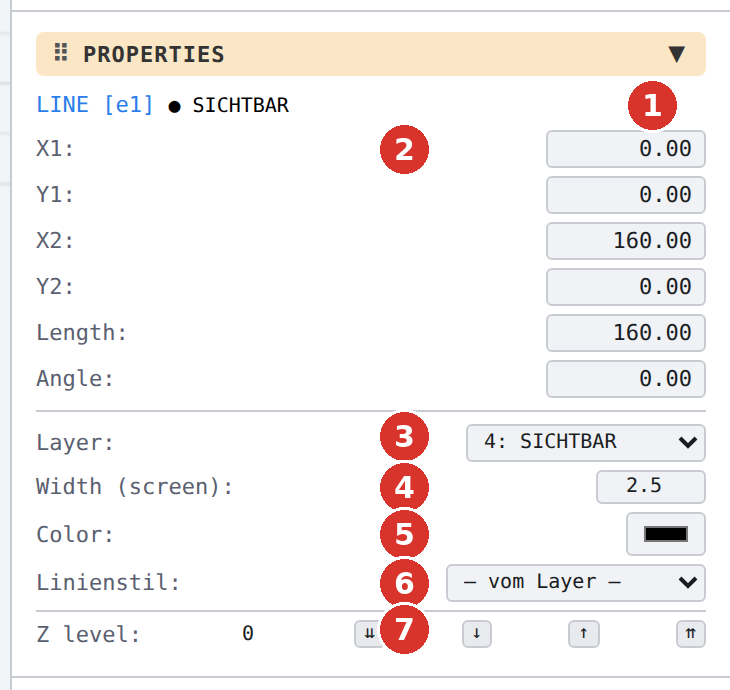

One element
Header
Type in capitals (LINE, RECT, CIRCLE, ARC, POLYLINE, SPLINE, IMAGE, TEXT, LEADER, BLOCKREF), the id in square brackets and “● layer name” in the layer colour. If the element belongs to a group, the blue group path “⊞ Rahmen › Motor” follows — a click unfolds the branch in the “Groups” section, clears its search field and lets the group flash briefly (Selection in the tree).
Geometry
Own fields per type; Enter or leaving a field applies the value, drags coincident endpoints along, runs the constraint solver and recalculates affected hatches. Every change is one undo step. An invalid number (letters, “1e999”, more than 1,000,000,000,000) is refused with a red message and the field shows the previous value again; nothing changes.
| Type | Fields |
|---|---|
| Line | X1, Y1, X2, Y2, Length, Angle |
| Rectangle | X, Y, Width, Height |

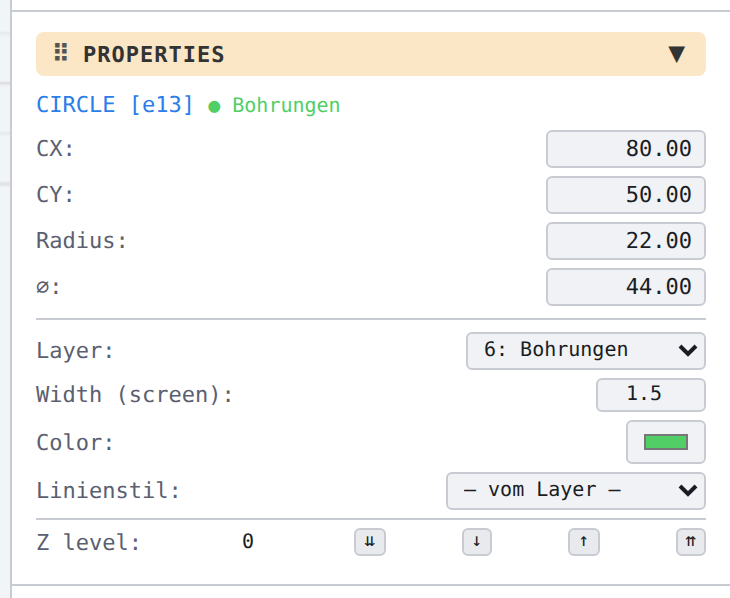

| Circle | CX, CY, Radius, ⌀ |
| Arc | CX, CY, Radius, Start°, End° |
| Polyline, spline | number of points and length L (display only; “closed” for a closed spline) |
| Image | size in pixels, 🔒 for a locked image, button “Edit properties” |
| Text | start of the text, height H, F/K for bold and italic, button “Edit text” |
| Leader | text, arrow size, text size, text offset (%), filled, arrow side |

Block reference

For a block instance the panel shows, below the header (1), the name of the definition and the count (2) n× in the drawing — insertions in the model and on all sheets — extended by · m× in total if the block is also contained in other blocks. Below that come the BOM data of the definition (3) including custom fields, for display only; they are changed via the button 🧩 BOM data… (4), which opens the BOM data dialog. The note Applies to all insertions of this block is a reminder that the values belong to the definition. Then follow layer (5) and Z level. Insertion point, rotation and scale are changed via the gizmo window.

If an inserted live parts list is selected, the panel shows BOM table (not counted) and the row ✓ Position balloons follow this parts list (1) if it is the governing one, otherwise Position balloons follow another parts list (right-click to choose). The row only displays; the choice is made by right-clicking the table (Parts list).
Layer
Drop-down “n: Name”. Changing it re-assigns the element and adopts colour and screen width of the target layer (Layers).
Width (screen)
Line width in pixels (tooltip: “Line width on screen in pixels; in print the print width of the layer applies, otherwise about 0.2 mm per pixel”). A width above 1 stays equally wide when zooming: the element does not get thicker when zooming in and not thinner when zooming out (Navigation).
Colour
Colour picker; the colour applies to this element only.

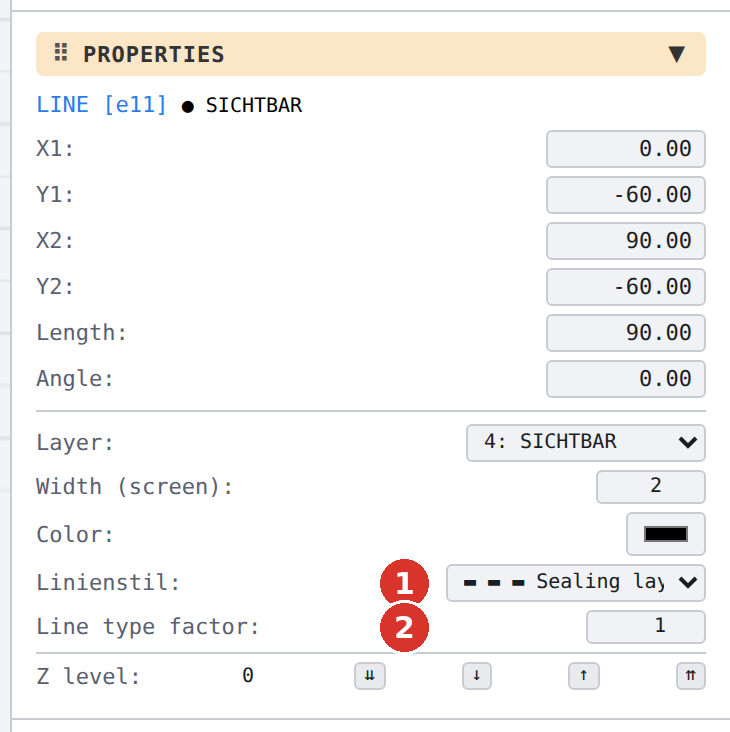

Line style
“— from layer —” (default) or one of the eight types: Solid, Dashed, Dotted, Dash-dot, Center line, Sealing layer, Ventilation grid, Structural bonding. An own line style overrides the layer line type for this element only. When changing to a special type the element receives the snapshot of the current pattern values (Line types).
Line type factor
Visible only with an own special type: stretches or compresses the pattern of this element (0.05–100, factory 1); multiplies with the factor of the type from the “Line types” dialog.

Z level
Current level and the four buttons ⇊ ↓ ↑ ⇈ (Stack).

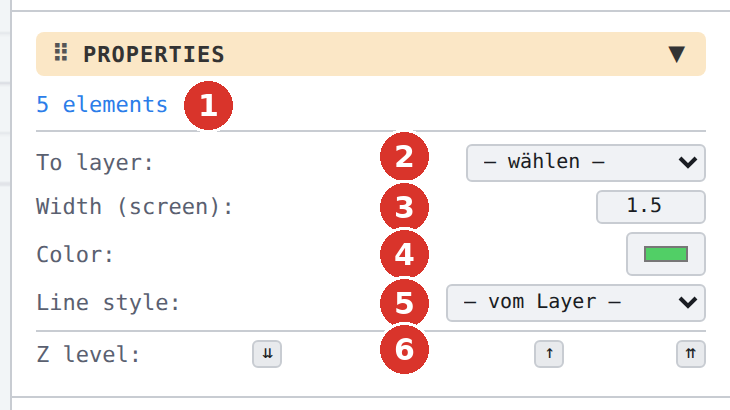

Several elements

The header counts (“5 elements”, plus “+ 2 dims” if dimensions are selected too) and shows the group paths. To layer (“— choose —”) re-assigns all elements and adopts colour and width of the target (“5 elements moved to layer "…"”); width and colour apply to all (with mixed colours the field is grey); line style shows “— mixed —” if the elements differ and otherwise sets all to the chosen style (“5 elements: line style …”); Z level as above.
