Stack: Z level of the selection
Purpose
The four commands put the selected elements, hatches and dimensions on another Z level and thus change what lies on top.
Access
- Keys: Ctrl + ↑ bring to front, Page ↑ one level up, Page ↓ one level down, Ctrl + ↓ send to back.
- Right-click menu of the drawing area, bottom block (1–4).

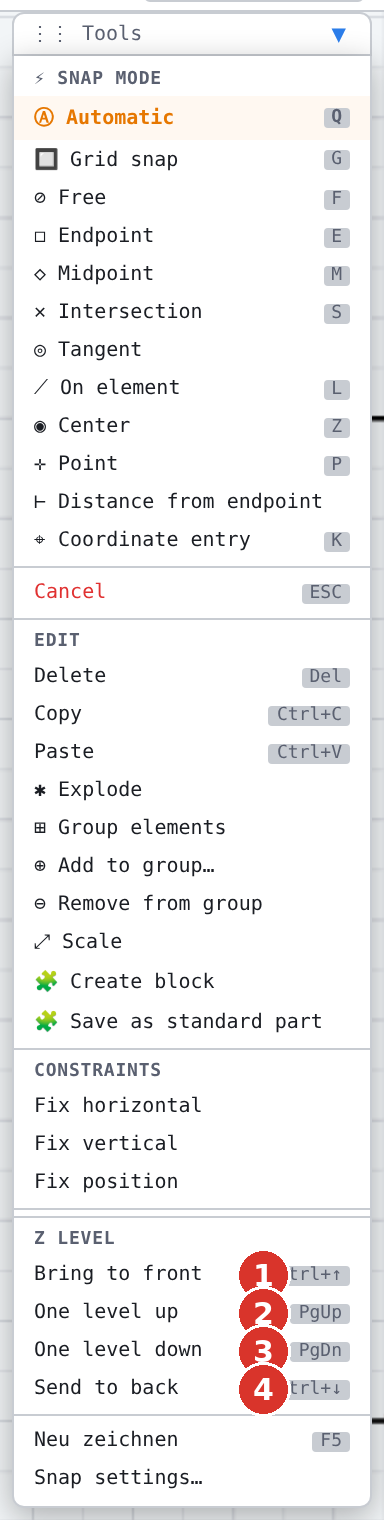

- Tool window, section “Z level” (1–4).
- “Properties” panel, row “Z level”: ⇊ ↓ ↑ ⇈.

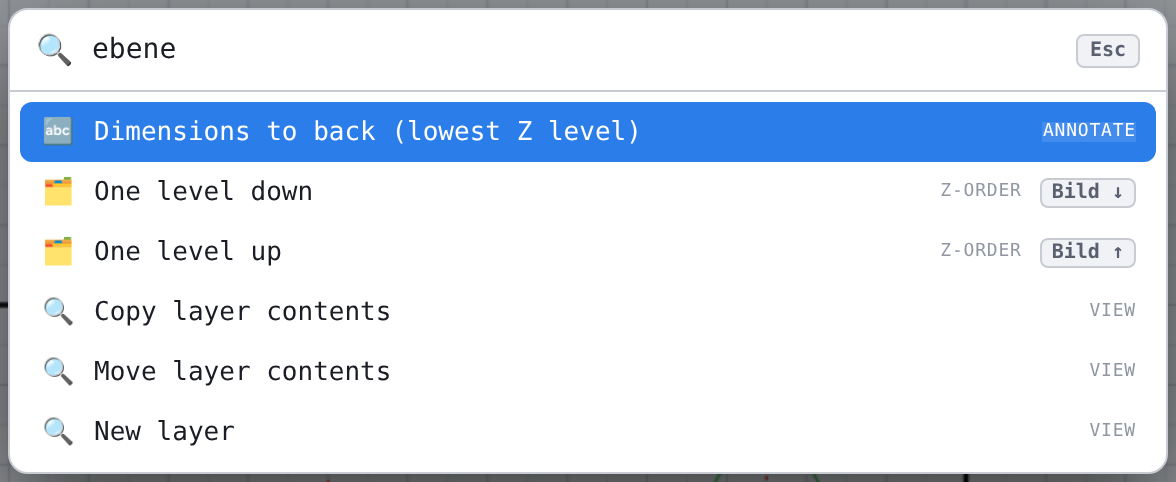

- Command search : “level”, “front”, “back” (German terms such as “ebene” work too). The key badges of “One level up/down” still read «Bild ↑» and «Bild ↓» — they mean Page ↑ and Page ↓.



Bring to front
Puts the selection on the highest occupied level + 1 — above everything else. Status bar: “Brought to front (n objects)”.
One level up
Raises the level of every selected object by 1 (“One level up (n objects)”).
One level down
Lowers the level by 1 (“One level down (n objects)”).
Send to back
Puts the selection on the lowest occupied level − 1 — below everything else (“Sent to back (n objects)”).
Rules
- Without a selection nothing happens.
- Every call is one undo step; the “Z levels” section and the “Properties” panel are updated.
- The drawing Z level for new objects does not change (Drawing Z level).
- For all dimensions at once there is Dimensions to back.
- The content of a block — including its dimensions and hatches — follows the Z level of its insertion; the eye in the Z levels section hides a block by the level of its insertion.

Related commands
- Dimensions to back
- “Z levels” section — move or hide whole levels
